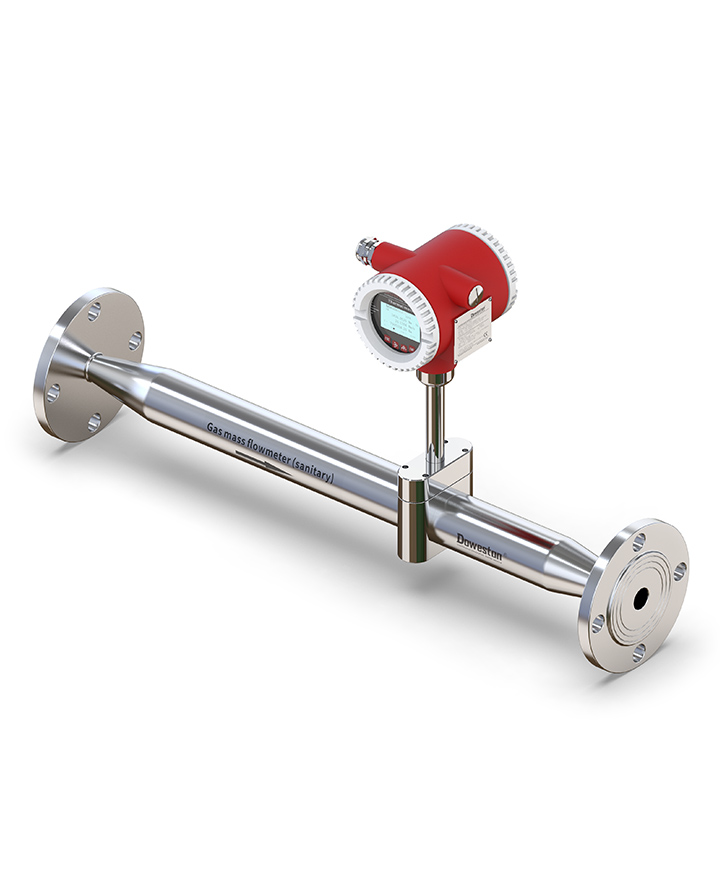

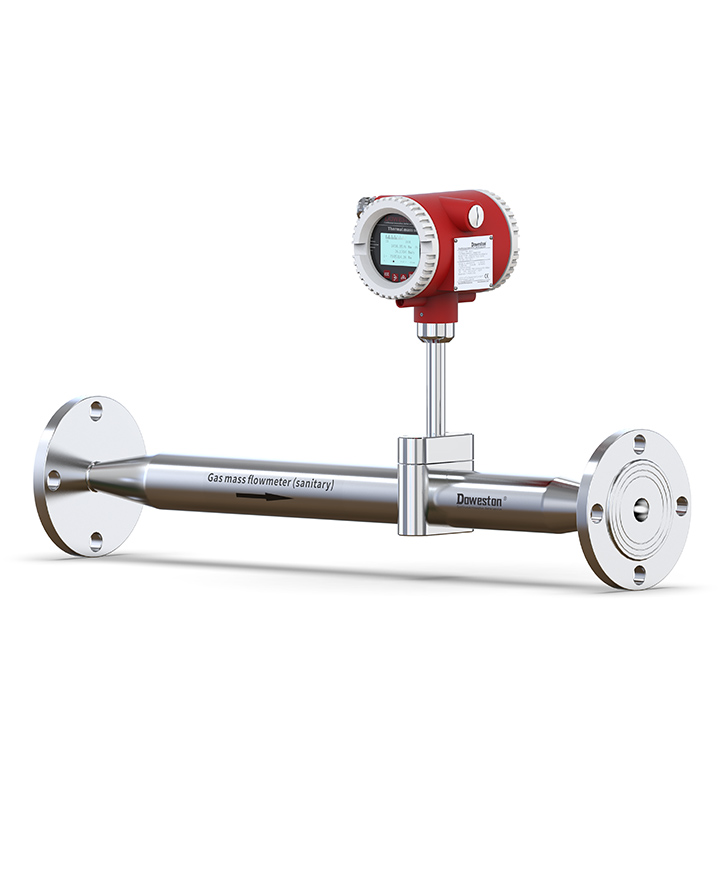

FTW-1600Q Sanitary Gas Mass Flow MeterBased onthermal spread The flow meter is designed based on the principle. That is, when the fluid flows through the heating object, the heat loss of the heating object is proportional to the flow rate of the fluid.
The sensors of this series of flowmeters have two standard-grade RTDs, one for As a heat source, one is used to measure the temperature of the fluid.
When the fluid flows, the temperature difference between the two has a linear relationship with the flow rate, and then through the microelectronic control technology, this relationship is converted into a linear output of the measured flow signal.
■ surface roughness Ra ≤0.4μm, symbolin line with the hygiene of the food industry Requirements
■ Easy installation, simple maintenance, two-way detection, anti-vibration
■ Simultaneous detection of flow and temperature, switching display
■ Large diameter and small flow measurement, can be used for leak detection
■ Direct mass flow detection without temperature and pressure compensation
■ Using SMD devices and surface mount (SMT) technology, high circuit reliability ;
■ The range can be modified online according to the actual needs of users on site to better match the acquisition terminal match;
■ Using RS-485 communication, or HART communication, can realize factory automation and integration
■ With self-diagnosis and self-diagnosis and alarm functions;
■ Ultra-low EMI switching power supply, suitable for a wide range of power supply voltage changes, anti-EMI performance it is good.
