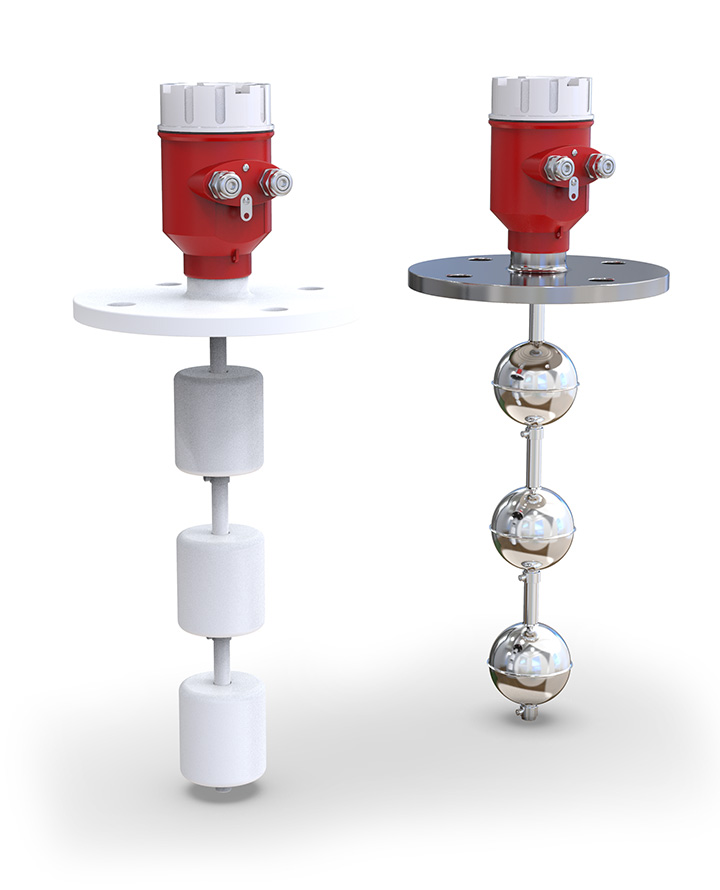

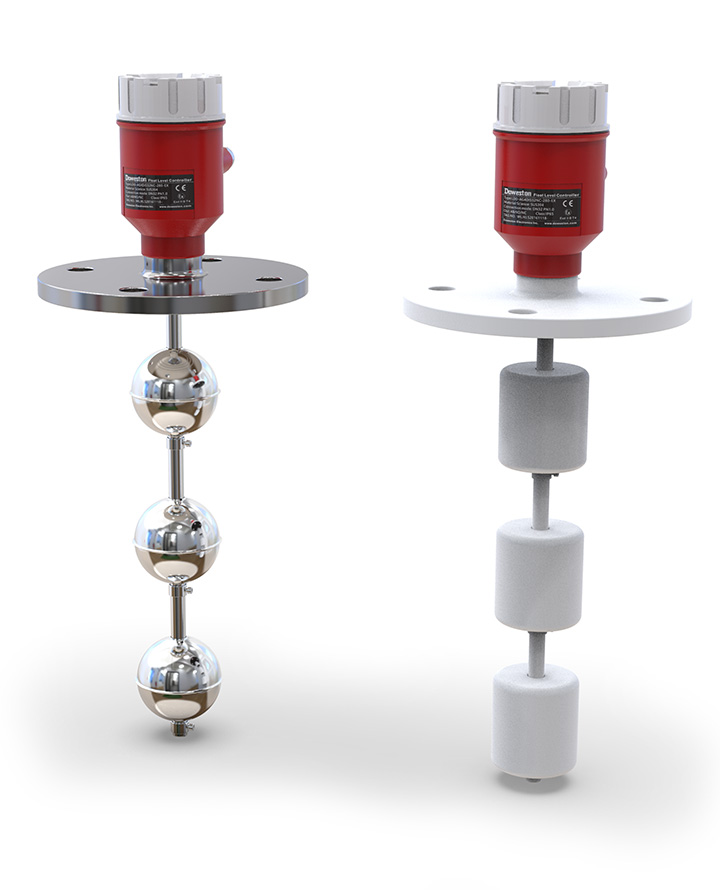

LG-400 series Floating ball type oil-water interface instrument

LG-400 series

Floating ball type oil-water interface instrument

LG-400 floating ball type oil water interface instrument uses the floating ball to move up and down with the liquid, so as to trigger or release the magnetic spring switch in the pipe, after circuit processing output 4-20mA or other different standard models. With multi-interface measurement (1-6 float), explosion-proof, corrosion resistance, can meet most of the measurement needs. Suitable for all kinds of oil and water mixture liquid level measurement, optional field display.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Document

Specification

Performance Features

Performance characteristics:
LG-400 floating ball type oil water interface instrument is the use of floating ball magnet changes with the liquid level, to change the resistance in the connecting rod and the magnetic spring switch composed of pressure division circuit, magnetic spring switch gap is small, the higher the precision. The partial voltage signal can be converted to 0-4-20mA or other different standard models by a converter. Indicator can cooperate with other table head for remote indication, is a simple principle, good reliability of the liquid level indicator!

Application field:
LG-400 floating ball type oil water interface instrument is suitable for water treatment control equipment, electrical industry, Marine hydraulic equipment, hydraulic and hydropower, chemical, petrochemical industry equipment and thermal coal boiler. (For liquid density ≥0.75g/cm³ measurement)

■ Measuring range :0-300-6000mm

■ Comprehensive accuracy :±0.1%

■ Overload pressure :5bar

■ Blasting pressure :10bar

■ Output: 4-20mA+Hart communication

■ Process connection :DN50 flange connection, threaded connection G2

■ Protection grade: Electrical part IP65

■ Seal: fluorin rubber

Technical parameters

Rod length	0-300-6000mm
Comprehensive accuracy	±0.1%
Repetition accuracy	≤± 0.1%FS/year
Display	LED field display is optional
Applicable specific gravity	≥0.75
Input voltage	12-36V DC
Output	0-5V、1-5V、0-10V、4-20m、AHart
Operating temperature	-20℃~130℃
Max pressure	5bar
Load resistance	RL(Max)=50(Vs-8)
Adjustment range	Span Ajustment 20%FS、Zero Ajustment 5%FS
Response time	＜5ms (10...90%FS)
Guide rod and float material	Stainless steel 、rubber、PP、PVDF、PTFE、PVC
Transmitter material	Mould cast aluminum/aluminum alloy
Protection class	Electrical part IP65
Electrical connection	Direct connection, 1/2NPT, terminal connection, M20*1.5 screw hole for connecting cable tube
Seal	Fluorin rubber
Installation mode	G2 thread, DN50 GB flange
Weight	It depends on the range
