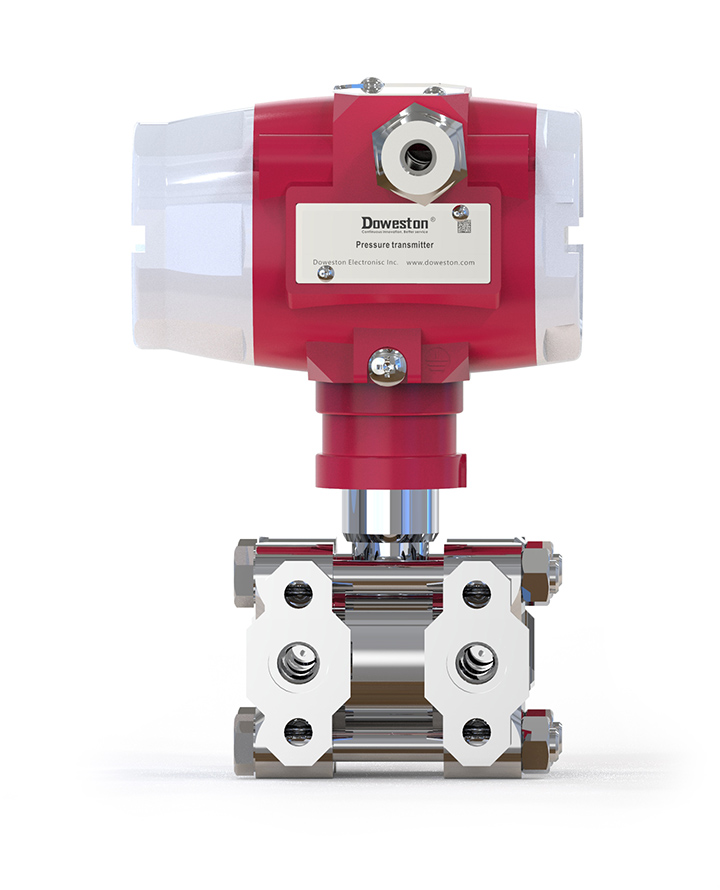

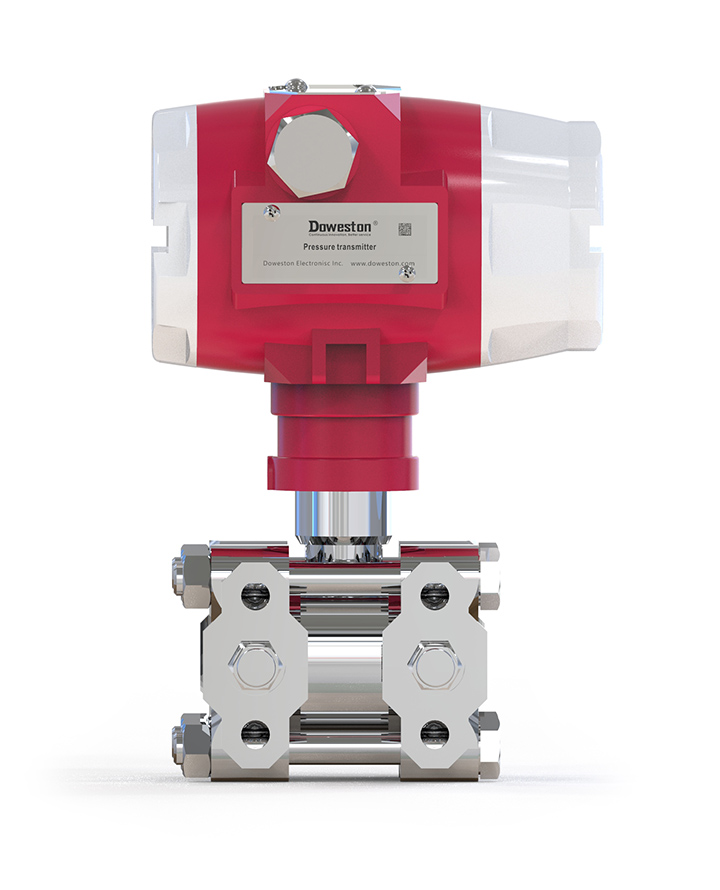

PD-750W clamp block intelligent differential pressure transmitter It can convert physical differential pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~ 20mA, Hart, etc.) to supply secondary instruments such as indicating alarms, recorders, regulators, etc. for measurement, indication and process adjustment. Widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.
Field of application:
PD-750W clamp-type smart differential Pressure transmitters are widely used in water plants, oil refineries, sewage treatment plants, construction, light industry, machinery and other industrial fields to achieve multi-parameter measurement of liquids, gases, and steam.
■ Fully sealed, fully isolated single crystal silicon pressure sensor with high accuracy .
■ The 24-bit CPU achieves high precision and fast response, and the display module can 360° rotation, friendly key parameter operation function
■ Powerful personal protection, the safety guard of the transmitter, even if After lightning and thunder, it still maintains stable operation.
■ High-strength metal electrical protective housing for harsh environments .
■ No mechanical moving parts and less maintenance.
■ Fully isolated magnetic induction structure to meet explosion-proof requirements for safe operation on site specification.
■ Rugged and high quality stainless steel process flange, extra thick reinforcement It is a strong guarantee for high static pressure and high overload
|Applicable media||Dry gas, gas, liquid, slightly corrosive liquid, viscous liquid|
|input voltage||12-36V DC|
|output||4-20mA, RS485, Hart, etc.|
|error alarm||Self-diagnostic program detects fault, analog output is higher than 20.8mA or lower than 3.8mA, alarm, high/low flag is adjusted by HART communication|
|response time||<1ms (10...90%FS)|
|Damping constant||Electrical damping is 0-32S, which can be adjusted at 0.1S intervals|
|service life||＞1*10^8 pressure cycles|
|Liquid contact material||Stainless Steel 316L (PTFE, PP covered), Hastelloy C, Monel, Tantalum|
|shell material||cast aluminum alloy, stainless steel|
|Protection class||Electrical part IP67|
Terminal wiring, M20*1.5 screw hole*2
|electrical protection||Overload/Reverse Phase Protection|
|Explosion proof||Explosion-proof ExdIICT6, intrinsically safe ExiaIICT4|
|Installation method||G1/2, G1/4, NPT1/2, NPT1/4, M20*1.5 internal and external thread, national standard flange (GB/T 9119- 2010)|
