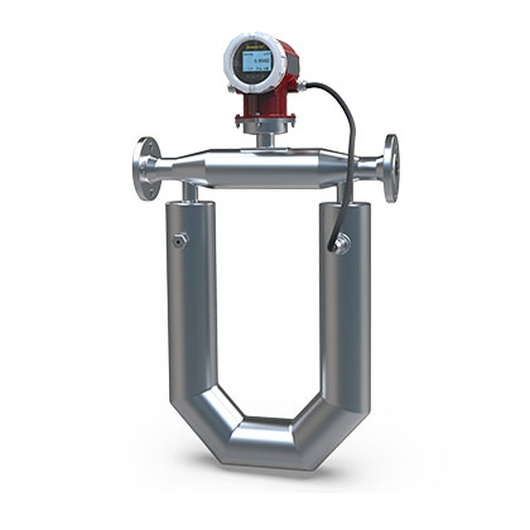

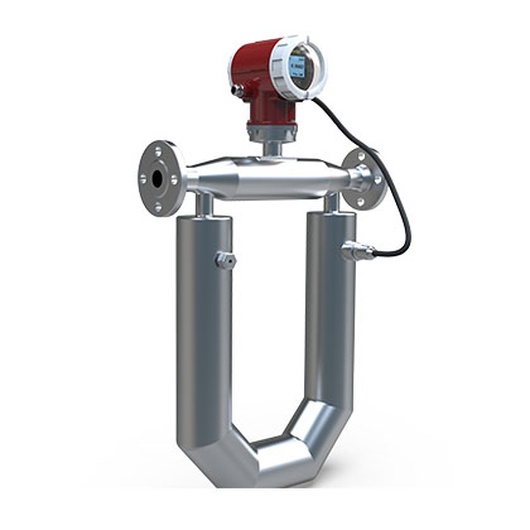

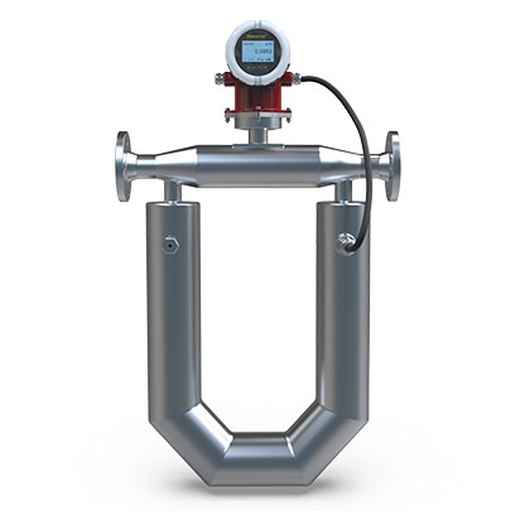

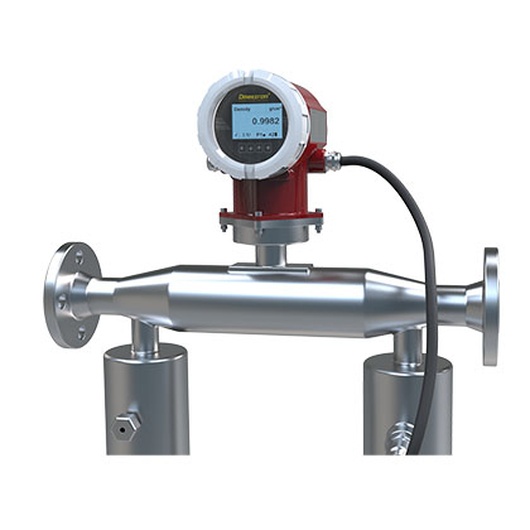

FTM-1610 Standard Integrated Coriolis Mass Flowmeter

FTM-1610 Series

FTM-1610 Standard Integrated Coriolis Mass Flowmeter

The FTM-1610 Standard Integrated Coriolis Mass Flowmeter uses the Coriolis effect to measure mass flow directly. It is specifically designed for measuring liquids under complex process conditions, including solid-liquid two-phase slurries (such as fruit juice), liquids containing trace amounts of gas, highly toxic and corrosive liquids, high-viscosity liquids (such as honey), and non-Newtonian fluids.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Specification

Performance Characteristics

The FTM-1610 Standard Integrated Coriolis Mass Flowmeter uses the Coriolis force effect to directly measure the mass flow of the medium passing through the flowmeter. It can also measure the volumetric flow and density of the medium and indirectly measure the temperature of the medium.

It is suitable for ingredient dosing, filling, and accurate metering in the food and beverage industry; feeding ingredients into reactors and aromatic hydrocarbon cracking in the chemical industry; metering and transportation of petroleum and natural gas; marine fuel consumption measurement; pulp and paper additives; colorant addition; and other applications.

Corrosion-resistant all-stainless-steel material, ABS fully molded probe, simple structure.

■ Strong and durable, with no moving parts and no dead zones; easy to clean, long service life, and strong anti-interference capability.

■ High measurement accuracy, good stability, and short response time.

■ Can measure multiple parameters such as mass flow, volumetric flow, density, temperature, etc.

■ Can be used not only for general process measurement, but also for measuring toxic liquids, pulp, and paste-like liquids.

■ Uses SMD components and surface-mount technology (SMT), providing high circuit reliability.

■ The measuring range can be modified online on site according to the actual needs of the user to better match the data acquisition terminal.

■ Optional digital communication signal outputs include RS485, RS232, HART, Modbus, Profibus-DP, and others.

■ Equipped with self-check, self-diagnosis, and alarm functions.

■ Ultra-low EMI switching power supply, suitable for a wide range of power supply voltage variations, with good EMI resistance.

Application Areas

■ The FTM-1610 Standard Integrated Coriolis Mass Flowmeter is used to measure mass flow, volumetric flow, density, and temperature in mining and energy, steel, petroleum, chemical, food, pharmaceutical, electric power, industrial, water conservancy, and other sectors.

It can also measure corrosive and toxic liquids such as acids, alkalis, and salts.

Technical parameters

Parameter	Specification
Measuring Range	3–65,000 kg/h, 0.11–2,390 lb/min, 3–63,500 L/h
Applicable Media	Acid, alkali and salt solutions, beverages, alcohol, high-viscosity liquids, highly toxic and corrosive liquids, solid-liquid two-phase slurries, non-Newtonian fluids
Nominal Pipe Diameter	DN5–DN350
Measuring Range	0.25–10 m/s
Zero Stability	0.015% FS
Zero Drift	0.0015% FS per °C
Repeatability Error	±0.15% of measured value
Accuracy Class	0.1% FS, 0.15% FS, 0.25% FS, 0.5% FS
Density Measurement Range	0–4,500 kg/m³
Density Measurement Accuracy	±0.002 kg/L
Temperature Measurement Accuracy	±0.5% of reading, ±1°C
Operating Temperature	−40 to 100°C (standard), −100 to 150°C (upon inquiry)
Working Pressure	1.0–35 MPa
Housing Material	Stainless steel DIN 1.4301, cast aluminum alloy
Pipe Material	Stainless steel DIN 1.4404
Wetted Material	304, 316L, Hastelloy, titanium alloy, 316L with PTFE
Display	Graphic display, 132 × 32 dots
Signal Output	4–20 mA, pulse/frequency (0.5–10,000 Hz), push-pull output, programmable
Communication Output	RS485, MODBUS protocol, HART output
Power Supply	220 VAC, ±15% tolerance, or 24 VDC, ripple ≤5%
Electrical Connection	Clamp-type terminal block
Connection Method	National standard flange, internal and external threads, sanitary clamp, Tri-Clamp flange, Swagelok connection
Protection Rating	IP65 (optional IP67)
Ambient Temperature	−35 to +70°C
Relative Humidity	5%–95%
Total Power Consumption	Less than 15 W
