Performance characteristics:

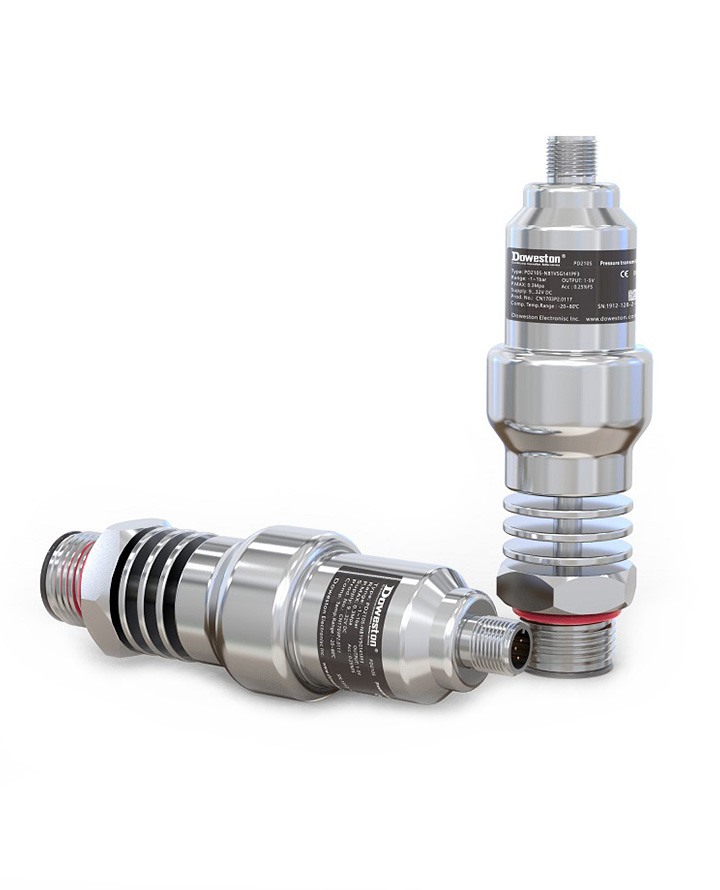

The physical pressure parameters such as gas and liquid sensed by PD-210H series high-performance pressure transmitters are converted into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, regulators, etc. Make measurements, indications and process adjustments.
Widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid, high temperature gas liquid
■ Measuring range: -1-40MPa
■ Overall accuracy: ±0.1%FS
■ Diaphragm material: stainless steel 316L
■ Working temperature: -40-350℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc.
■ Process connection: thread, flange
■ Protective connection: aviation plug, direct wiring, waterproof gland
■ Seal: Fluorine rubber
