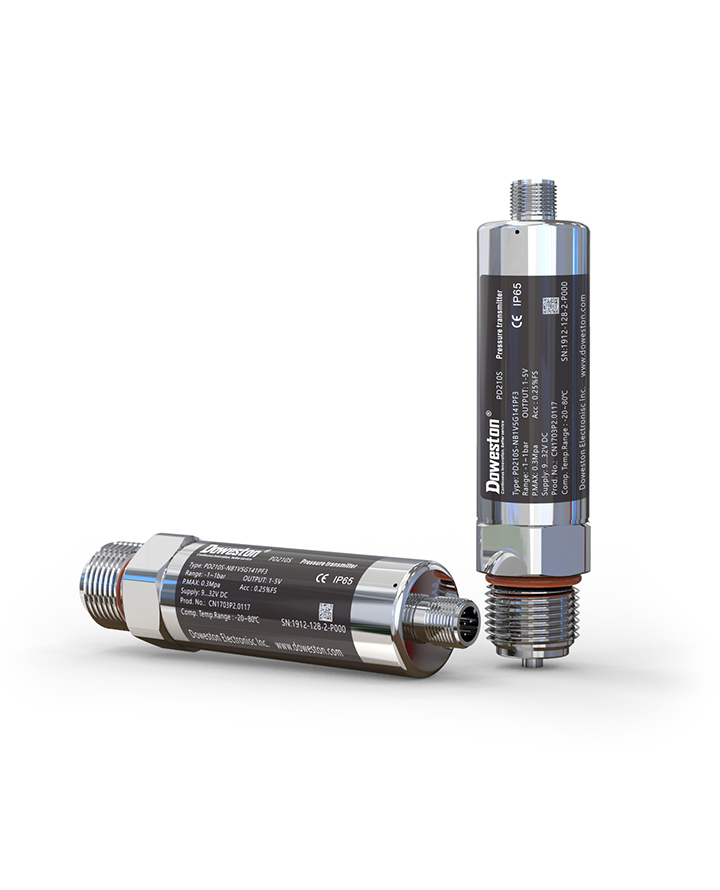

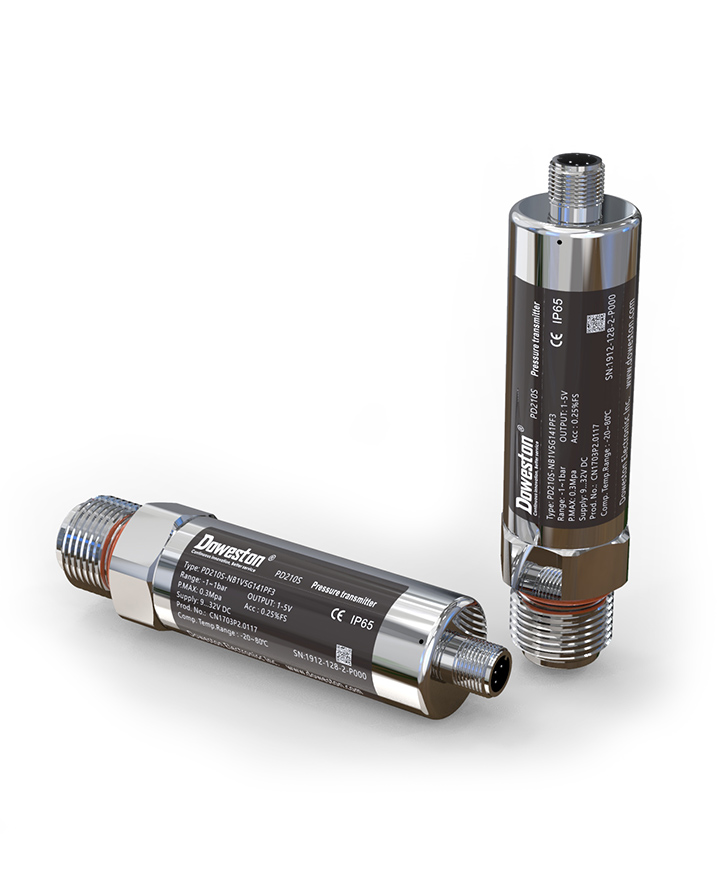

PD-210X series high performance pressure transmitter can convert the physical pressure parameters of gas and liquid sensed by the pressure measuring element sensor into standard electrical signals (such as 4~20mADC, etc.), which can be used to supply secondary instruments such as alarm device, recorder and regulator for measurement, indication and process adjustment.
Widely used in a variety of industrial automatic control environment, involving water conservancy and hydropower, railway traffic, intelligent buildings, production automatic control, aerospace, military, petrochemical, oil Wells, electric power, ships, machine tools, pipelines and other industries.
■ Measuring media: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range :-0.1-70MPa
■ Comprehensive accuracy :±0.25%FS
■ Diaphragm material: ceramic (Al2O3 96%)
■ Operating temperature :-40-125℃
■ Overload pressure :150%FS
■ Bursting pressure :200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc
■ Process connection: thread, flange
■ Protective connection: Hausmann connector, direct connection, waterproof gran
■ Seal: FKM (fluorine rubber)
