Principle

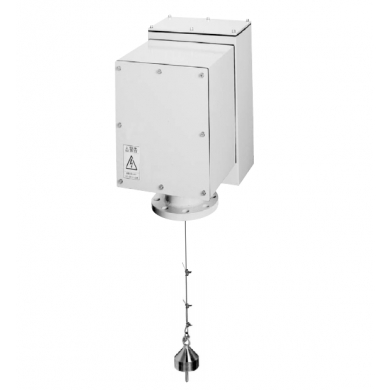

■ The LRH-100 series weight level meter is composed of a reduction motor, a reel (take-up wheel), a cable (steel cable), a weight, a pulse wheel, a position sensor and a control circuit. When the measurement starts, the on-site sensor (probe) controls the weight to quickly drop to the material surface. Once the measuring hammer touches the surface of the material to be measured, it immediately rises and returns to the position to be measured. The encoder in the sensor emits a pulse signal equivalent to the displacement of the weight. After calculation and processing by the embedded computer, the position or relative position of the material surface is displayed on the controller panel, and a 4---20mA standard instrument signal corresponding to the material level is output. The entire process is timed by manual buttons or by an embedded computer until the start of the next cycle.
The LRH-100 series weight level measurement system is particularly suitable for demanding measurement occasions where other material level meters cannot work due to dust, steam, temperature, etc.
Features
■ Multi-parameter calculation technology will not affect the measurement results due to interference from environmental factors (such as sound waves, dust, static electricity, changes in temperature and humidity, etc.).
■ Embedded microprocessor control, built-in advanced measurement and control program, fully digital operation, excellent performance.
■ Two alarm points, high and low, can be set (contact 3A/250Vac SPDT x2).
■ Display unit: LCD Dot matrix (8x2 backlight),
■ Disconnection detection,Buried hammer detection
■ Four detection modes: scheduled start, manual start, intelligent start and external start mode can be set according to needs, with automatic phase sequence detection function.
■ Smart Start: The function gradually increases the detection frequency as the detection distance shortens.
■ Zero-point take-up: By setting the measuring height limit to retract the hammer, it can prevent the weight from falling to the discharge port when the barrel is empty, causing hammer jam or damage to the feeding equipment.
■ Measuring distance: Maximum 75m.
■ The mechanical and electrical separation structure is suitable for high temperature silo measurement.
■ A variety of weight hammer specifications are available to meet different needs.
■ Antifreeze device: Can operate normally in extremely cold outdoor environments.
■ Measuring range: 2M-80M
■ suitable for density: 0.65-2.0g/cm³
■ Measuring speed: Avg. 0.23m/s
■ Accuracy: ±1dm
■ Repeatability: 30mm
■ Resolution: ±1cm
■ Timing range: 5min-7day
■ Output: RUN signal (under measurement) output, passive contact 220V 3A
0/4~20mA K1%(RS485 optional ) 0-600Ω
SPC/Err material level alarm/fault signal output, passive contact.
■ Working power supply: 380V AC 50Hz 3-phase 1A ±10%
■ electrical connection: M20*1.5
■ Wiring method: terminal block wiring
■ Power consumption: 10VA steady state 50VA dynamic
■ Display interface: 6-digit LED digital display of material level and silo percentage
8-bit status indicator light to display device status
Full digital keys and multi-function key function setting and operation.
■ Disconnection detection: Yes Disconnection or weight loss fault detection
■ Buried hammer detection: Yes Buried hammer fault indication
■ Motor current limit: Yes Over-current automatic protection
■ Fault classification: Yes Fault classification display
■ Feed protection: Yes Feed shock detection
■ Working temperature: controller -40°C~180°C (when using stainless steel cable, and no freezing)
Controller -40°C~60°C (when using nylon sheathed stainless steel cable and no freezing)
■ Anti-knot heating: optional (start heating at ≤0°C, maximum power 80W 220Vac)
■ Protection rating: NEMA 4X; Ip66
■ Material of connecting material: hammer head SUS304 stainless steel
Weight line (chain) SUS304 stainless steel
■ Shell material: cast aluminum/SUS stainless steel
■ Installation method: Hammer system: Flange installation
Control system box: wall-mounted installation
■ Weight: Controller: 30kg
probe: 35kg
Flange and installation pipe: 20kg
■ Optional accessories: remote transmission light column display controller
Remote printer
Hammer kit
