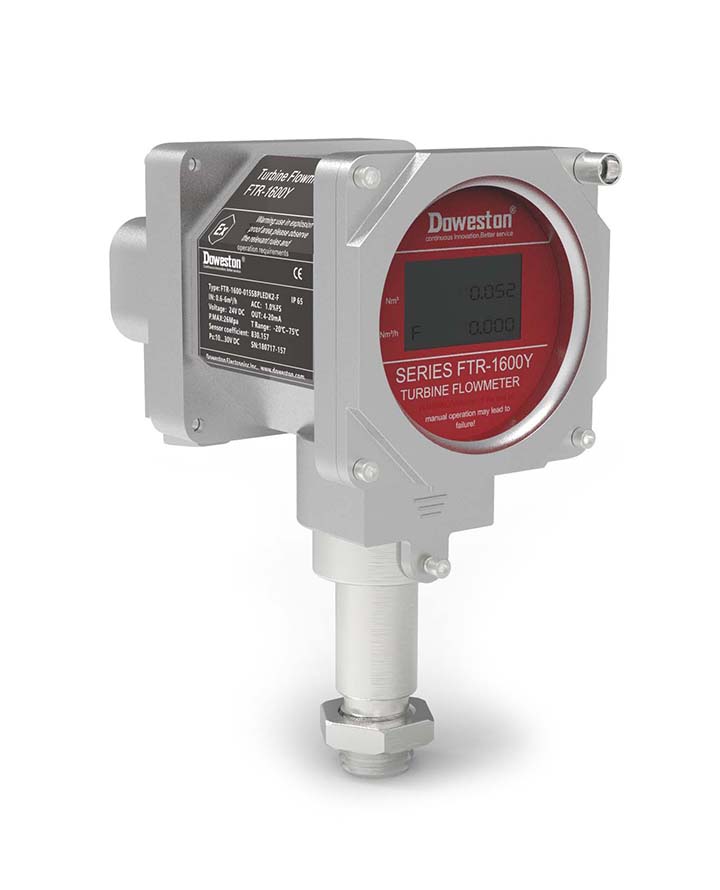

FTR-Converter70 multifunctional turbine flow transmitter detects the rotation speed of DOWESTON flow meter. Each tooth that passes through will be picked up by a contactless point, and a pulse will be generated at the output end and converted into a corresponding proportion of current. Therefore, each pulse corresponds to a fixed volume, and the frequency corresponds to the volume flow. This digital transmitter is screwed into the instrument through the M14x1.5 thread. Therefore, it is suitable for all Doweston turbine measurement sensors.
Local digital display, supports multiple signal outputs
● Compatible with all series of flow meters
● Support analog + switch + Modebus-RTU/RS-485, pulse, frequency diversified signal output
● The drying point can be freely set
● All stainless steel housing with compact structure
● 8 digits display instantaneous flow and cumulative flow
● Connect using M12 connector
● On-site terminal wiring makes wiring more friendly
| power supply voltage: | UB: +5 to 30 VDC, adjustable, depending on version |
| Quiescent current: | IR < 1 mA |
| Frequency range: | 0.5 to 5000 Hz, depending on flow meter |
| ambient temperature: | -40°C to +80°C |
| process medium temperature: | -40°C to +80°C |
| output signal: | 4-20mA analog Upper and lower limit switches Modebus-RTU/RS-485 Pulse, frequency diversified signal output |
| Other signals: | Inquiry manufacturer |
| Reverse protection: | Yes |
