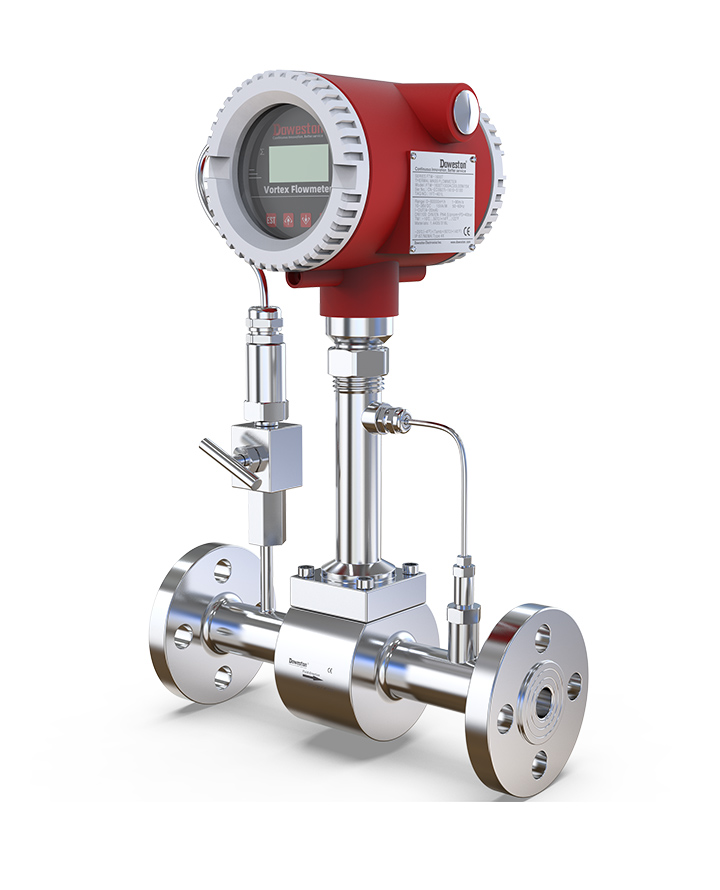

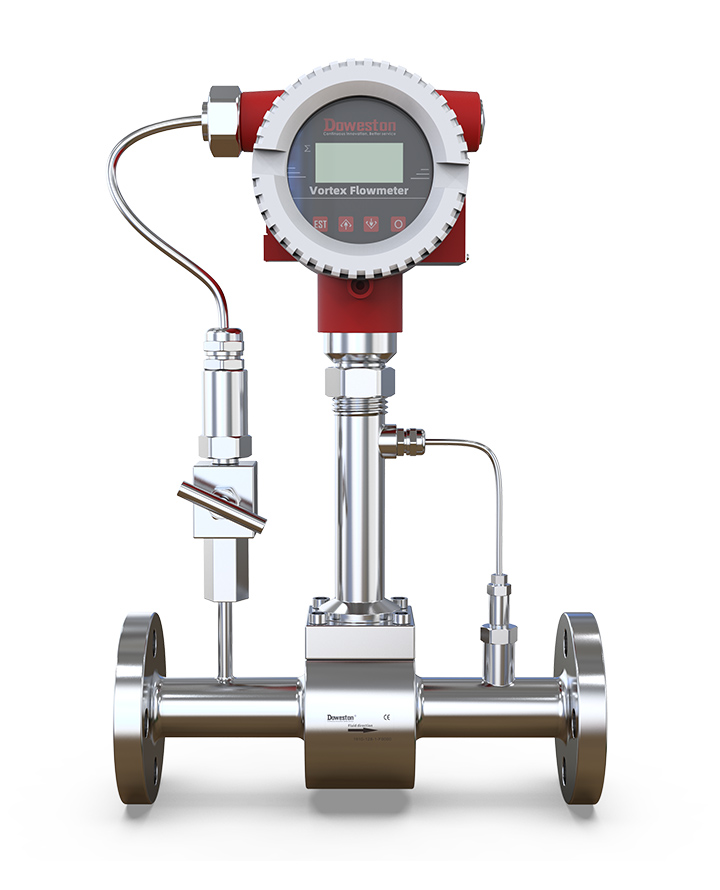

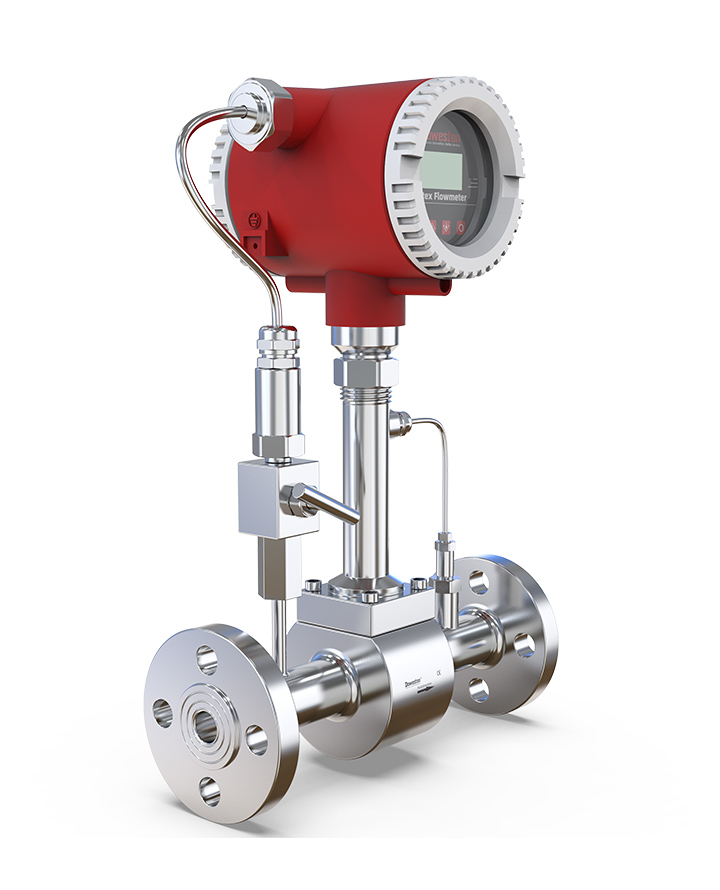

FTV-1600R Series
Temperature & Pressure Compensated Vortex Flow Meter

The basic principle of the FTV-1600R series temperature and pressure compensated Vortex flow meter is the Karman Vortex phenomenon. When the medium flows through the triangular prism-shaped Vortex generator at a certain speed, two rows of alternating vortices are formed on both sides of it. This kind of Vortex is called Karman Vortex street. Based on the Karman Vortex theory, Strouhal proposed that the frequency of Karman Vortex is proportional to the flow rate of the fluid.

● Adopting double bluff body Vortex flow sensor technology and differential dual piezoelectric sensor technology, it has a wide range, low flow lower limit, strong anti-interference ability, and accurate and reliable measurement.

● Adopting micro-power consumption high technology, it can work with both internal and external power sources, and the internal battery can be used continuously for more than five years.

● LCD is used to display the instantaneous flow rate under working conditions, cumulative flow rate under working conditions, etc. The display is clear and intuitive and easy to read.

● Compared with the precession flow meter, the pressure loss is smaller and is suitable for use in situations with lower pressure.

● No mechanical rotating parts, high reliability, good stability, less maintenance, and good adaptability to media

● It can realize GPRS wireless data transmission through RS485 interface and data collector, which is reliable and can facilitate automatic management.

● The meter head can be rotated 180° at will and is easy to install.

Applications:

●Chemical industry, food, paper making

● Sugar production, smelting, water supply and drainage

● Environmental protection, water conservancy, steel

● Petrochemicals, oil fields, pharmaceuticals

● In textile, hotel and other fields
