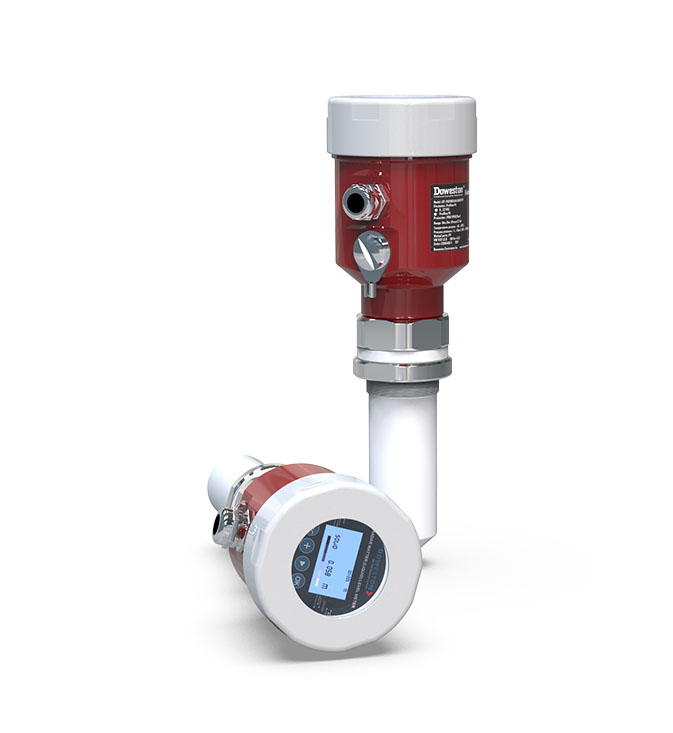

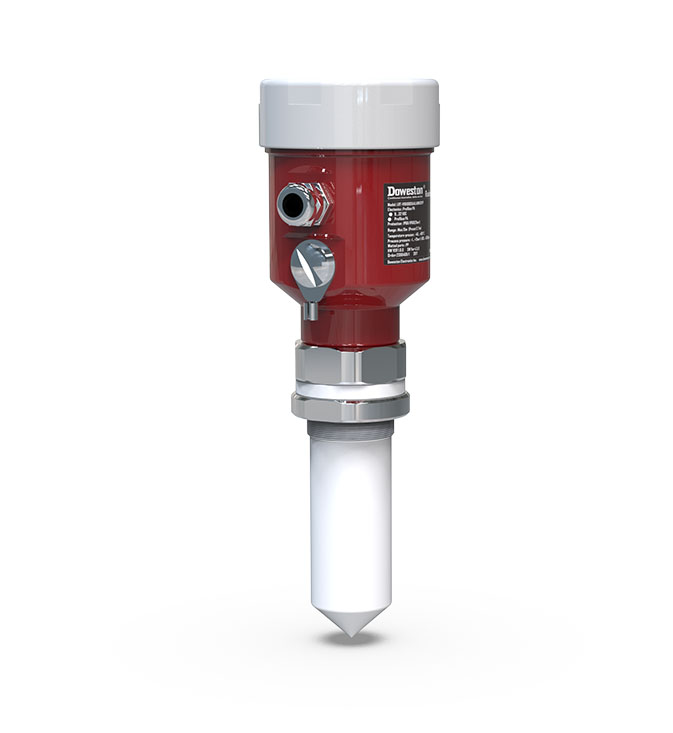

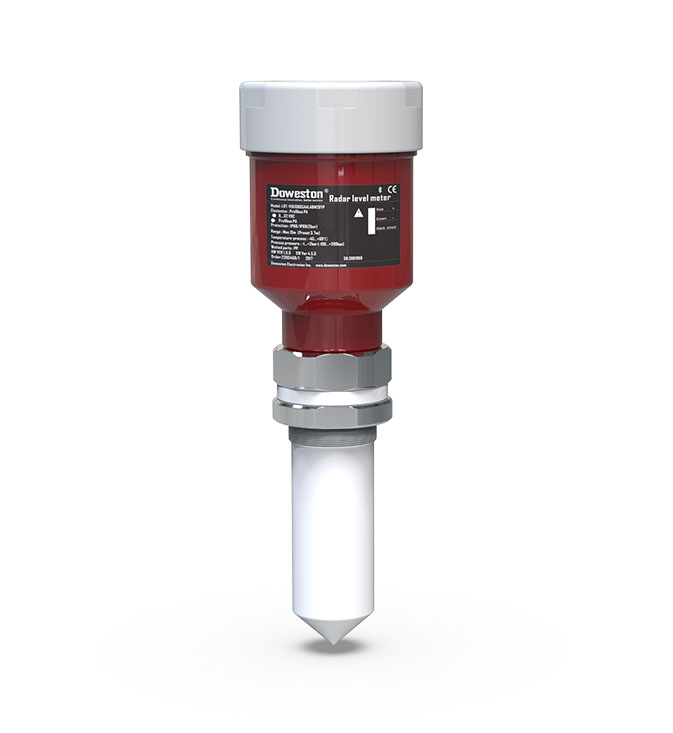

LRT-G1610 Series
Corrosion-Resistant Radar Level Meter

The LRT-G1610 anti-corrosion radar level meter series sensor is a 26G high-frequency radar level measuring instrument with a measuring distance of up to 10 meters. The antenna has been further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, allowing the instrument to be used for measurement of various highly corrosive liquids.

applications:Various corrosive liquids

Measuring range: 5, 10 meters

Process connection: threaded, flanged

Process temperature: -40 to 130°C (standard) / -40 to 250°C (high-temperature)

process pressure: -0.1~4.0MPa

Accuracy: ±3 mm

Ingress protection: IP67

Frequency range: 26 GHz

Power: 2-wire (24 V DC) / 4-wire (24 V DC / 220 V AC)

Explosion protection: Exia IIIC T6 Ga / Exd IIC T6 Gb

Housing: aluminum single chamber / aluminum dual chamber / plastic / stainless steel single chamber

Signal output: 4-20 mA/HART (2-wire/4-wire) / RS-485 Modbus

● Compact antenna for easy installation; non-contact radar with no wear or contamination.

● Virtually unaffected by corrosion or foam; nearly immune to atmospheric water vapor, temperature and pressure changes.

● Heavy dust environments have little effect on high-frequency level meter operation.

● Shorter wavelength gives better reflection off inclined solid surfaces.

● Narrow beam angle concentrates energy, strengthening echo performance while avoiding obstructions.

● Smaller blind zone delivers good results even on small tanks.

● High signal-to-noise ratio maintains superior performance even under agitation.

● High frequency, can measure solids and low dielectric constant media.
