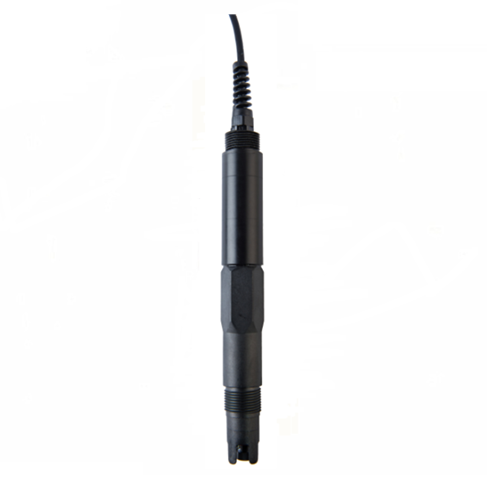

CL-D160 online chloride ion sensor
(RS-485/ModbusRTU)
The CL-D160 online chloride ion sensor uses a solid membrane ion-selective electrode for testing free fluoride ions in water. It is equipped with temperature compensation to ensure that the test is fast, simple and economical. This manual introduces the technical parameters, communication protocol, usage and maintenance of the fluoride ion sensor in detail.
● Signal output: RS-485 bus, Modbus/RTU protocol, easy to connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
● In the fluoride ion probe, the internal reference liquid seeps out from the microporous salt bridge extremely slowly under a pressure of at least 100KPa (1Bar). Such a reference system is very stable and has a longer electrode life than ordinary industrial electrodes.
●Easy to install: 3/4-inch NPT thread (pipe thread), easy for submersible installation or installation in pipes and tanks.
● IP68 Protection rating.
| Product features | |
|---|---|
| Digital output | Output 1 channel RS-485/ModbusRTU |
| Temperature compensation | intelligent real-time temperature compensation (PT100) |
| Applications | |
| Medium | liquid; |
| process medium temperature [°C] | 0...40 |
| Compressive strength [bar] | ≤1bar |
| Medium pH range | 2~12pH |
| Electrical data | |
| Operating voltage [V] | 18...36 DC |
| Current consumption [mA] | < 0.5W |
| Protection Rating | III |
| Reverse polarity protection | None |
| Power on delay time [s] | 3 |
| Total input/output | |
| Total input and output | Output 1 channelDigital |
| Output | |
| Output quantity | 1 |
| Output Signal | RS-485/ModbusRTU |
| Output function | Online chloride ion value |
| Measurement/setting range | |
| Setting range [cm/s] | 0~32000mg/L |
| Calibration method | Two-point calibration |
| Accuracy/bias | |
| Repeatability [cm/s] | ±1%FS |
| Accuracy | ±10%FS |
| Resolution | 1mg/L |
| Operating conditions | |
| ambient temperature [°C] | -25...80 |
| storage temperature [°C] | -25...80 |
| enclosure Protection rating | IP 68 |
| Certification/Testing | |
| EMC electromagnetic compatibility | Conforms to DIN EN 61000-6-2DIN EN 61000-6-3 |
| Shock-resistant | Conform toDIN IEC 60068-2-2750 g (11 ms) |
| Earthquake resistant | Conform toDIN EN 60068-2-620 g (55...2000 Hz) |
| MTTF [year] | 1 |
| Mechanical technical data | |
| weight [g] | |
| Fixed interface size [mm] | 3/4NPT |
| Thread code | 3/4NPT |
| Raw materials | PVC |
| Materials (wet parts) | PON,PVC |
| System interface | M18 x 1,5 internal thread |
| Comment | |
| Packaging unit | 1 piece, or whole batch in boxes |
| Electrical Connection | |
| Interface | Direct wiring, cable length |
| Cable length | Standard length 5m, other lengths can be customized |
