Home > Products > Product Under Maintenance > LEB-16 Series Low-Range Dedicated Capacitive Level Transmitter
New

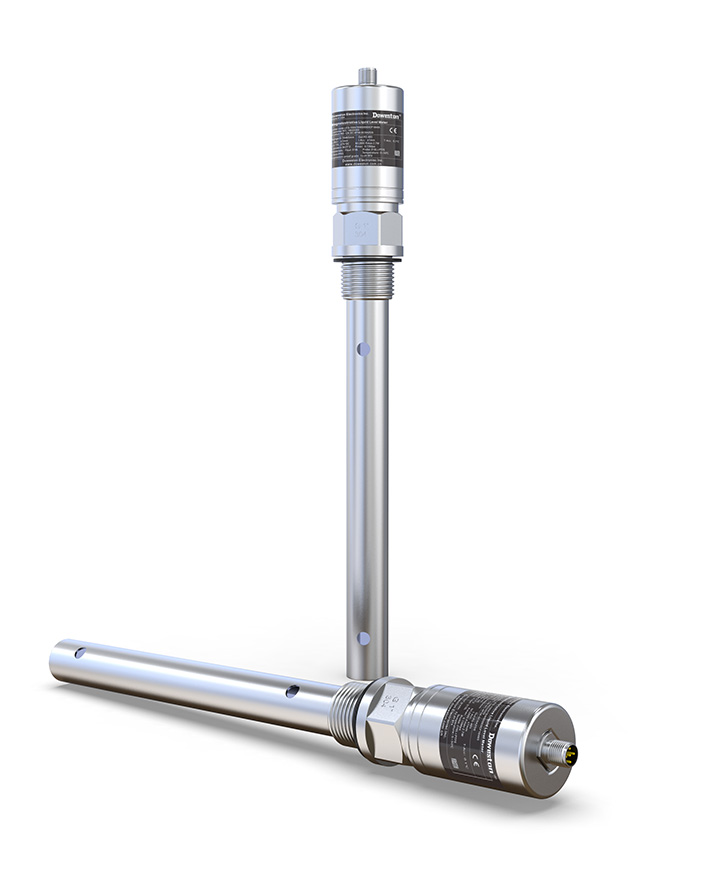

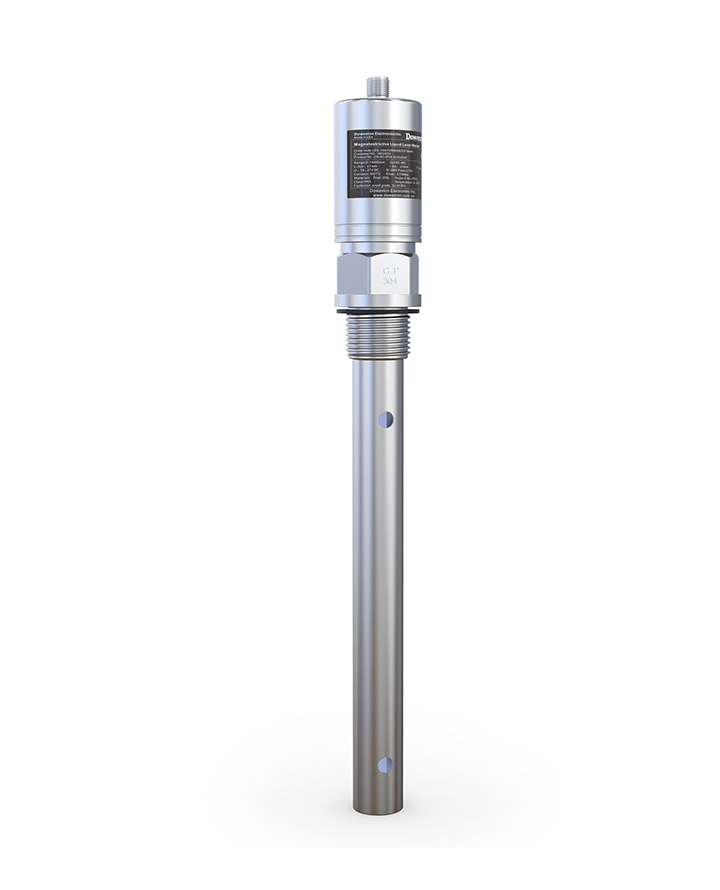

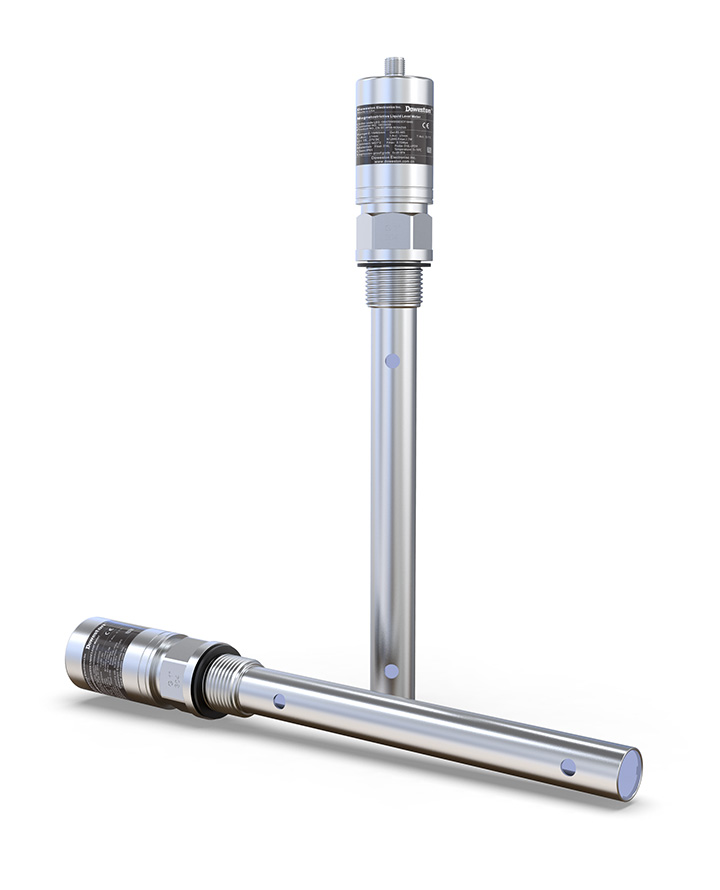

LEB-16 small range special capacitive liquid level meter
MajoritySmall range, special for special temperature and pressure occasionsLevel measurement
LEB-16 small range special capacitive liquid level gauge uses a metal probe as one electrode of the capacitor, and the container wall as the other pole of the capacitor. When the solution changes, the dielectric constant of the capacitor is opened, thus changing the capacitance. After circuit processing, the liquid level is output. Available forHigh temperature and high pressureStrong corrosion, easy to crystallize, anti-clogging, anti-freezing and solid powder, granular materials,covering most measurement requirements. Suitable forLiquid level measurement of various tanks and boxes, optionallocal display,LEB-16 useNewpeace control technology has been maturely used in refrigerant measurement and other industries.
LEB-16 small range special capacitive level meter is a device that converts changes in the position of the measured object into capacitance. The capacitive level meter has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and the ability to work under severe conditions such as high temperature, radiation and strong vibration. It has been used in various fields of industrial and agricultural production.
The LEB-16 capacitive liquid level meter using Newpeace control technology is widely used in refrigerant measurement.
■ Applicable media: Freon, copper liquid, chlorine-containing solution, etc.
■ measuring range:0-1000mm
■ Comprehensive accuracy: ±0.2%
■ Response time: <5ms
■ operating temperature:-50-200℃
■ Probe material: metal, plastic
■ Output: 4-20mA+RS485+Hart communication
■ Process connection: flange connection, threaded connection
■ Protection level: electrical part IP65
■ Seal: fluorine rubber (FKM)
Compatible Media | Freon, copper liquid, liquid ammonia, methanol, propylene carbon liquid, desulfurization liquid, chlorine-containing solution, etc. |
Measuring Range | 0-1000mm |
Overall Accuracy | ±0.2% |
Repeatability | ≤ ±0.1% FS/year |
Input Voltage | 12-36V DC |
Output | 4-20m, RS485, Hart |
Operating Temperature | -50-200℃ |
Tolerate stress | -0.1-5MPa |
Load resistance | ≤1000Ω |
Ambient Temperature | -40-80℃ |
Response Time | <5ms (10...90%FS) |
Probe electrode material | Stainless steel 304, 316L, PTFE coated |
Transmitter material | Die-cast aluminum / aluminum alloy |
Protection Rating | Electrical section IP65 |
Electrical Connection | Aviation connector (GAR). |
Explosion-proof Marking | ExibIIBT5 1/2NPT |
Seal | Fluororubber (FKM) |
Mounting Type | Threaded connection, flanged connection |
Weight | approx. 1.6kg |
Application Areas:
■ LEB-16 small range special capacitive liquid level meterSuitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.The LEB-16 capacitive liquid level meter using Newpeace control technology is widely used in refrigerant measurement.
