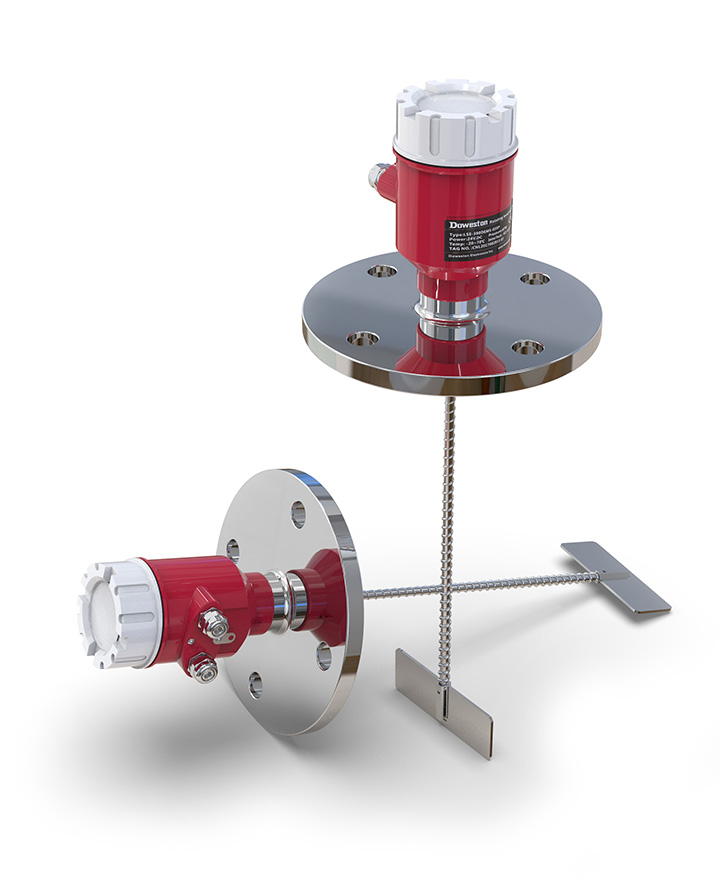

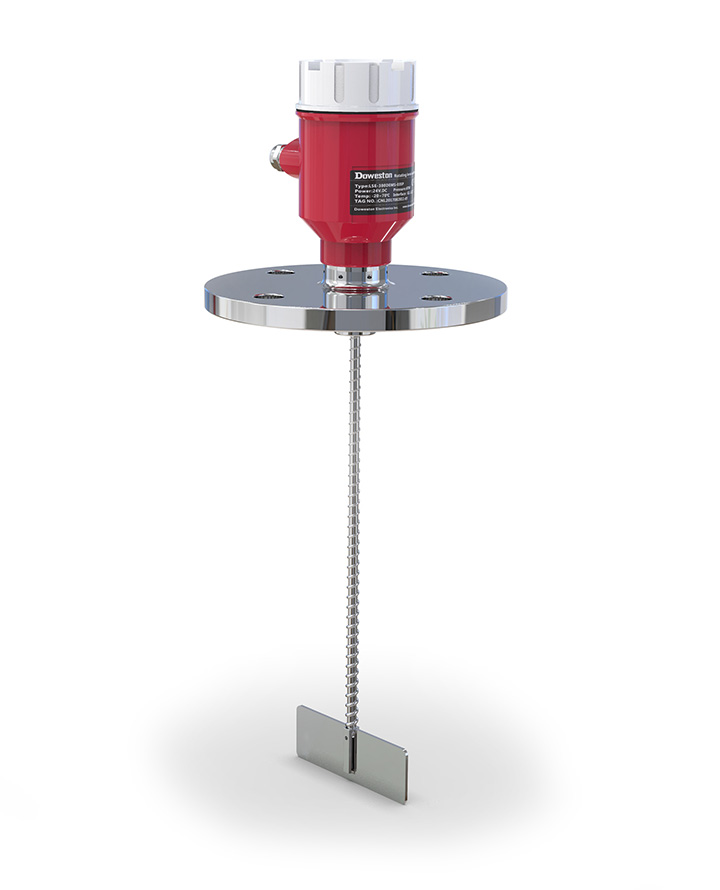

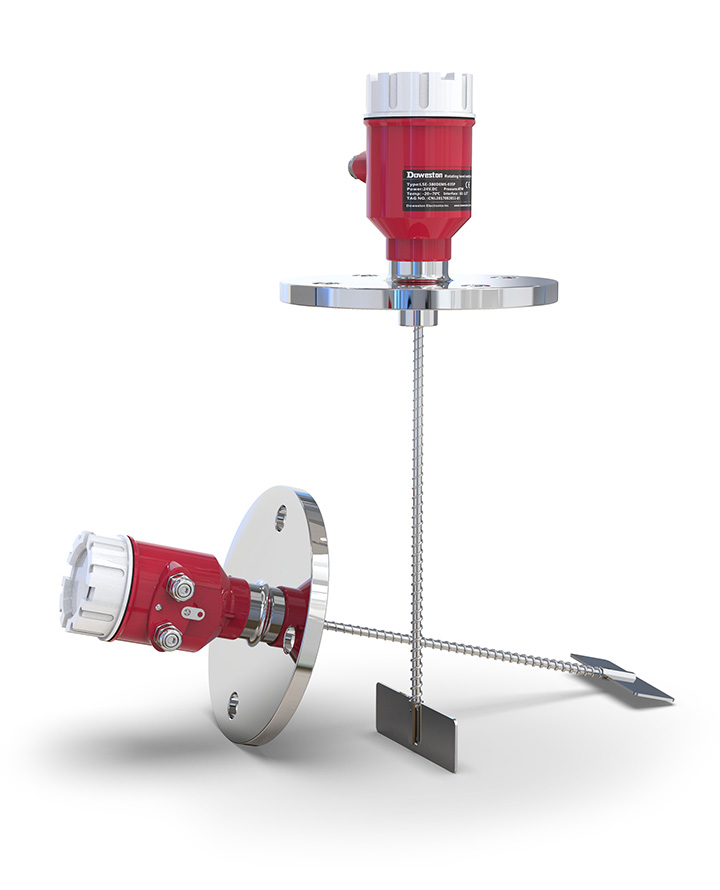

LSE-320 Series
Explosion-Proof Rotary Paddle Level Switch

The rotary paddle of the LSE-300 series paddle level switch uses a transmission shaft to connect with a clutch. When the material is not in contact, the motor keeps running normally. When the blade contacts the material and causes resistance, the motor stops rotating. The mechanism simultaneously outputs a contact signal to measure the material level height. There are standard type, shaft protection type, shaft length adjustable type, wire rope type and other specifications.It is suitable for fixed-point alarm or control of solid material levels in various silos and liquid levels in various containers.

■ Applicable: Liquid level and material level control of tanks, barrels, troughs, irrigation and other containers in chemical plastics, pharmaceuticals, feed, cement and chemical fertilizers, and food powder manufacturing and processing industries

■ ProduceType: standard type, shaft protection type, shaft length adjustable type, steel cable type

■ Power consumption: 3W, 11W (DC24V)

■ Blade material: stainless steel, PC

■ Contact capacity: SPDT 5A/250V AC

■ Blade speed: 1R.P.M.

■ operating temperature:-20℃~75℃

■ Output: Normally open, normally closed contact

■ Process connection: threaded, flanged

■ Protection level: electrical part IP65 (optional IP67)

■ Electrical connection: Thread 1"PF, Flange JIS 2-1/2"x5kg/cm²

■ Explosion-proof level: intrinsically safe/explosion-proof optional

■ weight:1.0-1.7kg
