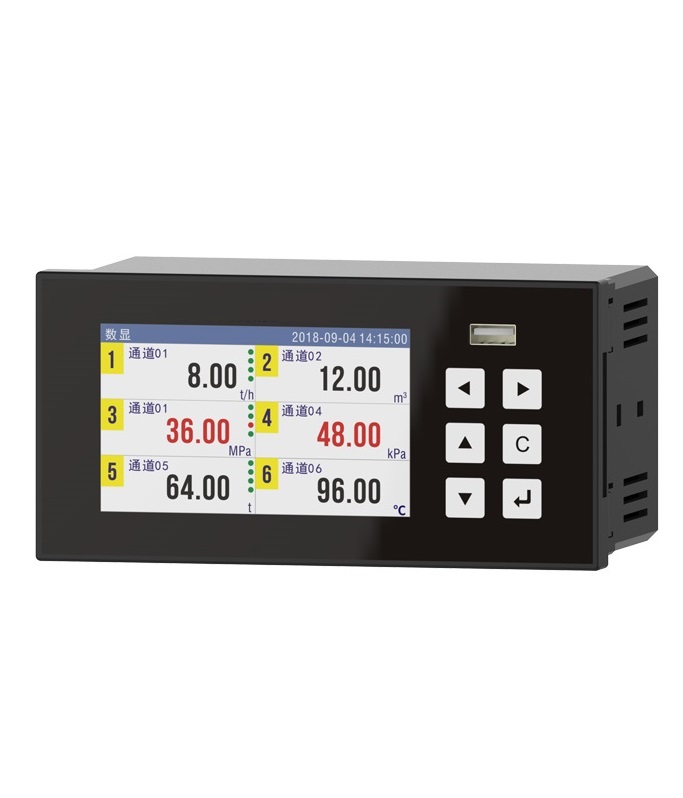

MBR-9000 Smart Multichannel Temperature Recorder
Support 6Different types of signal inputs, supports paperless recording, 1 channel RS-485 communication output

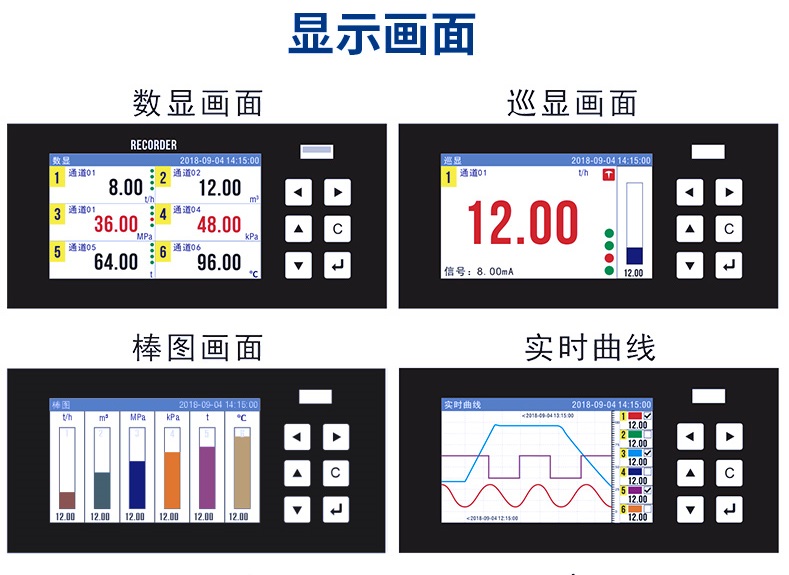

MBR-9000 intelligent multi-channel temperature recorder is a smart instrument that uses cutting-edge intelligent control technology. The instrument integrates digital display, recording, communication, control and other functions into one. The 6 instrument input channels can be displayed independently or on the same screen. The display function can be freely configured to meet the needs of different working conditions. It is an ideal instrument for multiple instruments to display on the same screen.
160*80mm panel size, 160(W)*80(H)*90(D)mm
6-channel signal input fully isolated design, full-scale accuracy 0.2%
6-way alarm relay, 2-way 24V DC power distribution
900,000 pieces of historical data, one-click USB high-speed transfer
256 alarms, power outages, log records

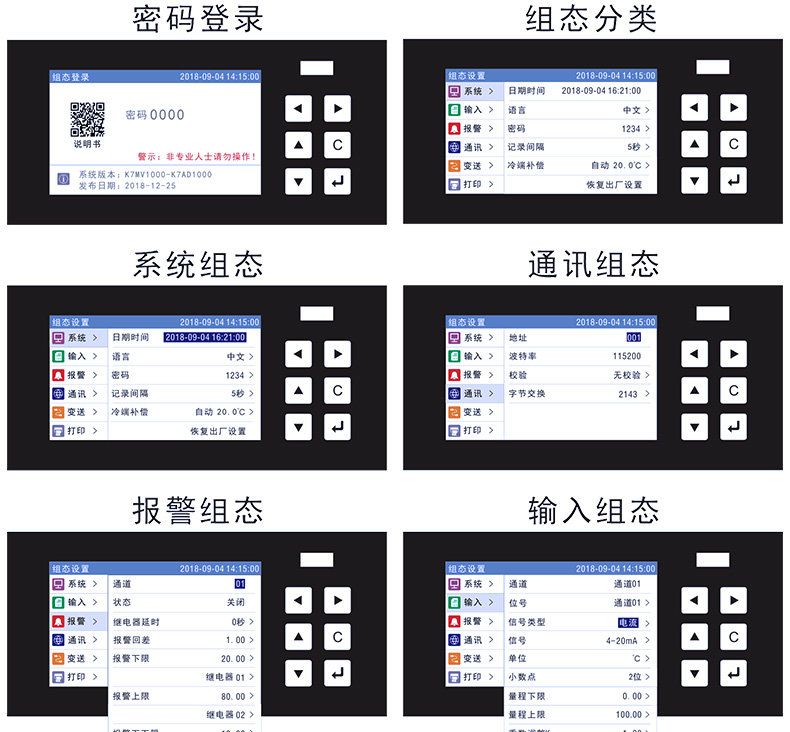

4-inch ultra-clear color LCD display, human body sensing touch buttons
Support bilingual switching between Chinese and English
Standard 2-way alarm relay
Standard RS485 interface, ModbusRTU protocol
| Classification | Functional specifications | |
| Applications | Temperature, pressure, liquid level, temperature, rotation speed, etc. | |
| Input channel | 1-6 inputs are optional, the signal is fully isolated, the sampling period is 1 second | |

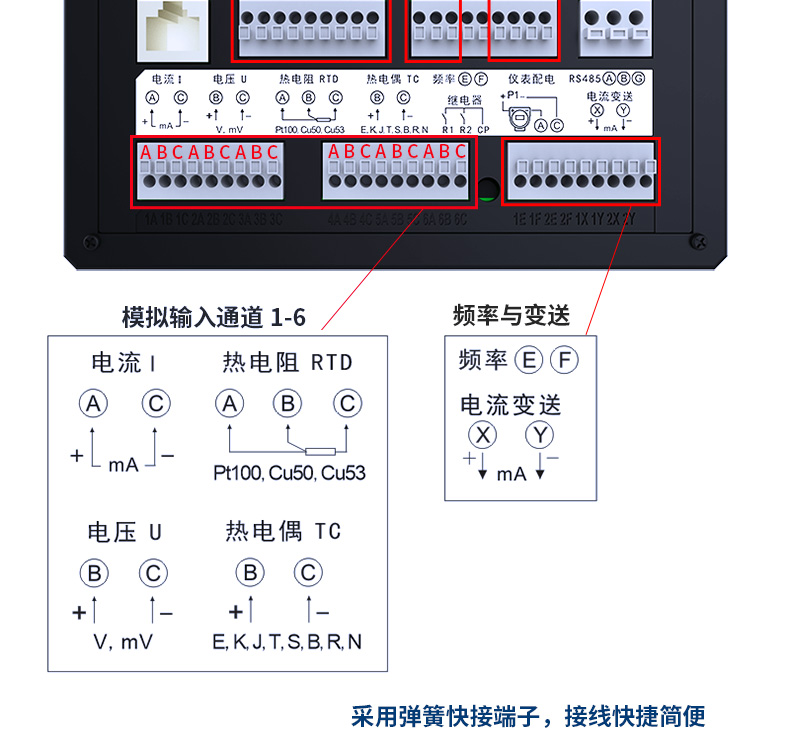

| Input signal | Voltage: 0-20mV, 0-50mV, 0-100mV, 0-5V, 1-5V, 1-5V square root, 0-10V Current: 0-10mA, 4-20mA, 4-20mA square root Thermal resistance: PT100, Cu100, Cu50 Thermocouple: E, K, J Thermocouple: T, S, B, R, N Frequency:Fr | ±0.2%FS.
±0.2%FS. ±0.5℃ ±2℃ ±3℃ |
| Transmission output | 2-channel transmission is optional, 4-20mA, accuracy ±0.1%FS. | |
| Storage capacity | 128Mb, 900,000 records, 1 second recording interval can record for 10 days | |
| LCD screen | 4.0-inch TFT true color LCD screen, resolution 800*480 | |
| Language | Simplified Chinese, English bilingual | |

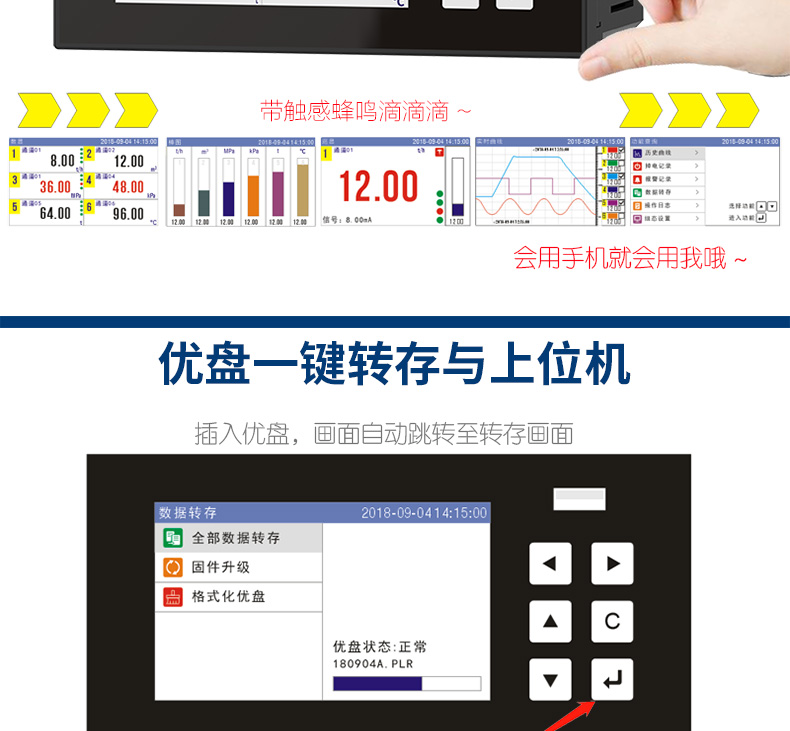

| USB | USB2.0 high-speed interface | |
| Alarm | 1-6 alarm channels optional, relay 220V/3A normally open contact | |
| Distribution | 1 channel DC 24VDC±10%, 60mA | |
| RS485 | 1 RS485 interface, standard ModbusRTU protocol | |
| RJ45 | 1 RJ45 interface, standard ModbusTCP protocol | |
| 1-way micro printer interface | ||
| Power | AC: 85-260VAC, frequency 47~63Hz, maximum power < 40W | |

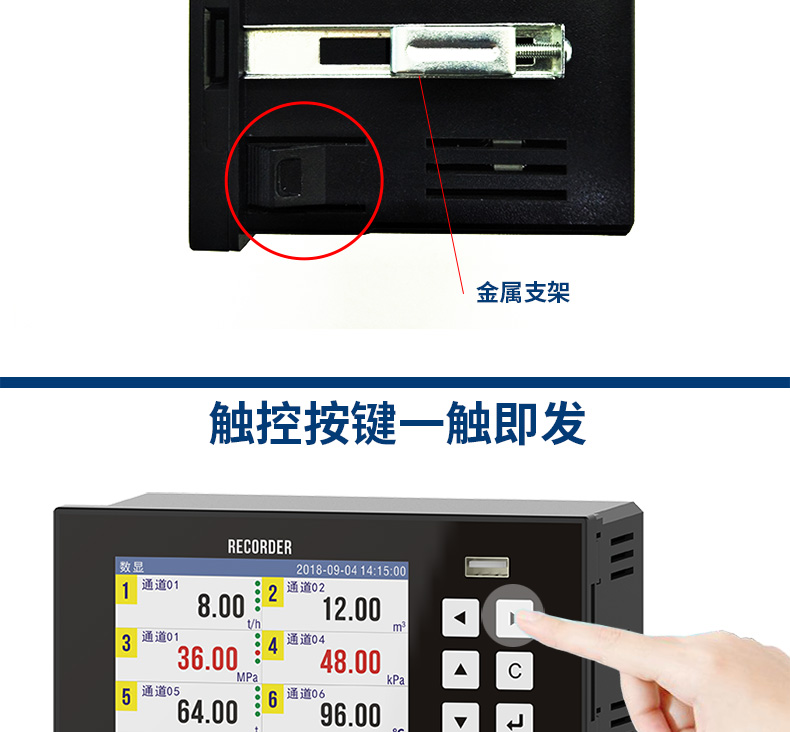

| Button | Touch keys: up, down, left, right, cancel, confirm | |
| Software function | Real-time digital display, historical data (900,000 items), Alarm list (256 items), power failure record (256 items), operation log (256 items) | |

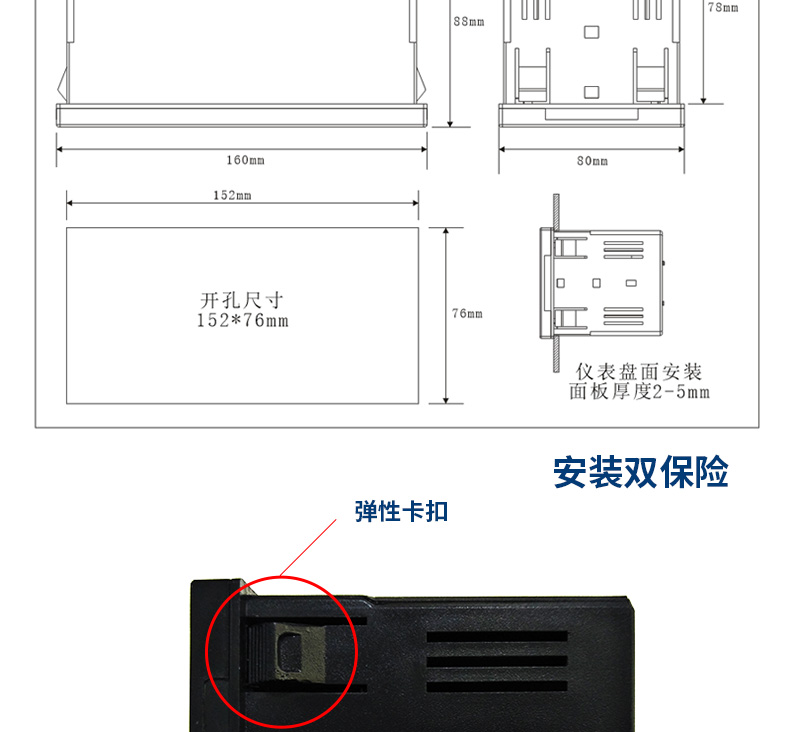

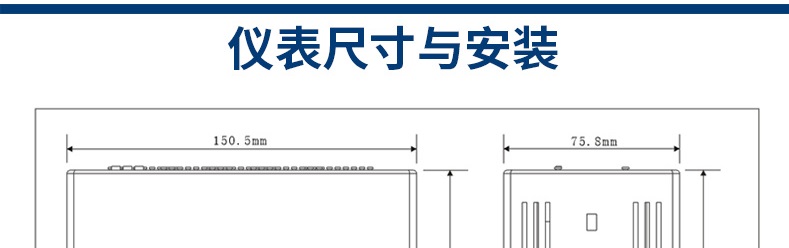

| Dimensions weight | Panel 160*80*88mm, opening 152*76mm, weight 450g | |
One instrument to solve your various application needs
That's right, it's MBR-9000
