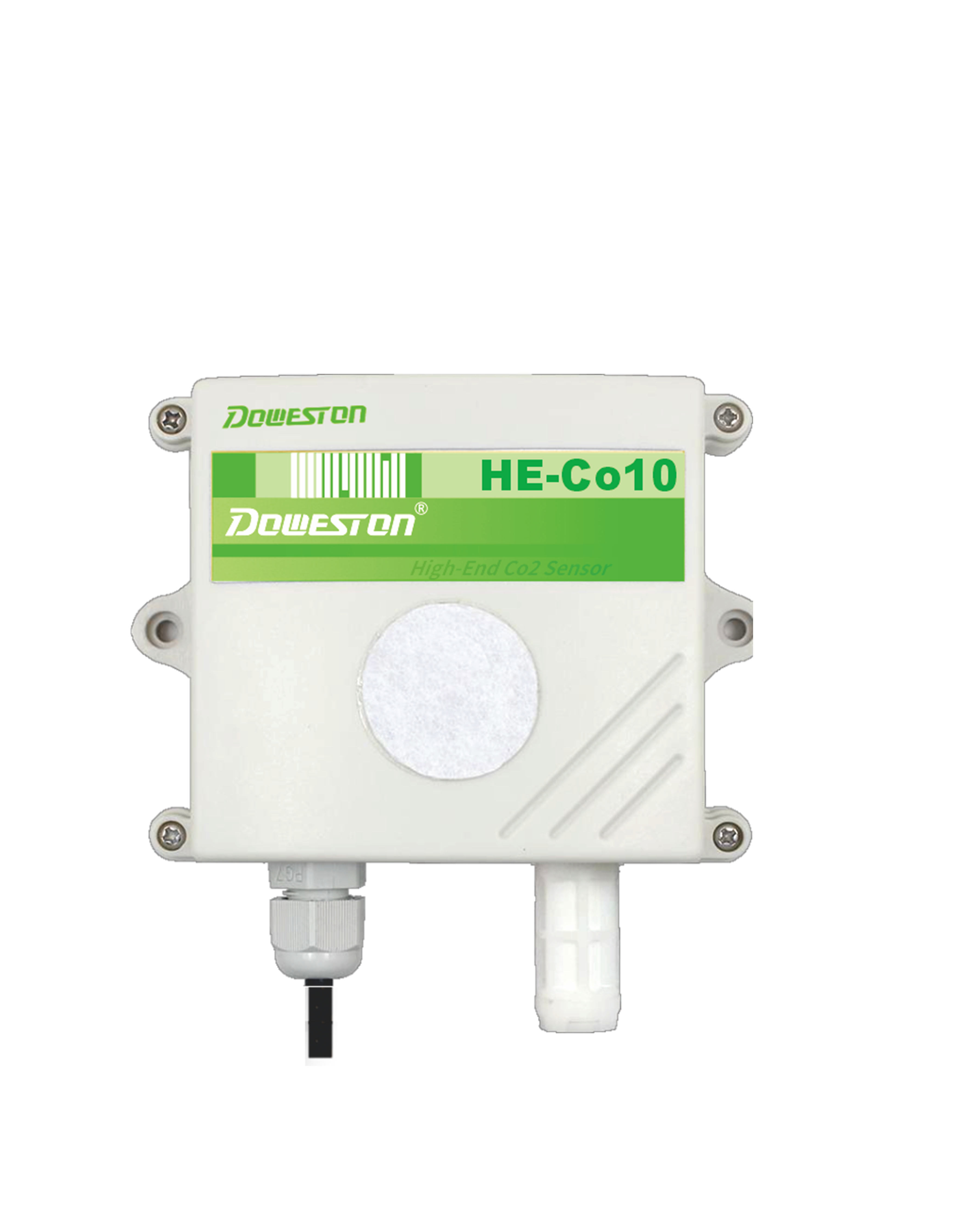

HE-CO10 series carbon dioxide transmitter
Equipment10-30V wide voltage power supply, enclosure Protection rating high, can adapt to various harsh conditions on site
HE-CO10 adoptsCO2Detection core, new infrared calibration technology, can measure CO2 concentration in different application areas, with fast and sensitive response, avoiding the life and long-term drift problems of traditional electrochemical sensors. Analog signal output, 4-20mA, 0-10V, 0-5V optional.
■ New infrared calibration technology measures CO2 concentration with high accuracy, small drift and long life.
■ Wide measuring range, default 400-5000ppm, built-in temperature compensation, less affected by temperature 4-20mA, 0-10V, 0-5V multiple analog signal outputs optional
■ The product adopts a wall-mounted waterproof shell, which is easy to install and has a high protection level.
Application fields
■ Smart agricultural greenhouse
■ Flower culture
■ Edible fungi cultivation
■ Public areas with dense crowds at stations and airports
■ Exhibition halls and museums
■ Conference center
■ Indoor stadium
All prices are pre-tax prices in RMB and do not include 13% VAT or shipping!
| Class A accuracy | Co2 detection accuracy | DC10-30V |
| Long term stability | 0.4W | |
| Class B accuracy | Co2 detection accuracy | CO2 400~5000ppm ( default ) |
| ( default ) | Long term stability | ± (40ppm+ 2%F· S) (25℃ ) |
| Nonlinear accuracy | <1.5%F· S | |
| Transmitter circuit operating temperature and humidity | ± (40ppm+ 2.5%F· S) (25℃ ) | |
| Probe operating temperature | <2%F· S | |
| Probe working humidity | <1%F· S | |
| Data update time | -40℃~+60℃, 0%RH~80%RH | |
| System warm-up time | -40℃~+120℃, default -40℃~+80℃ | |
| Response Time | Class A precision sensor | 0%RH-100%RH |
| Class B accuracy sensor | 2s | |
| Effect of temperature | 2min (available), 10min (maximum accuracy) | |
| Average current | Generally less than 75S for 90% step change | |
| Output Signal | Generally less than 90S for 90% step change | |
| Installation method | Temperature core automatic compensation | |
| <85mA | ||
| 4-20mA, 0-5V, 0-10V, RS485(Modbus protocol ) | ||
| Wall-mounted |
