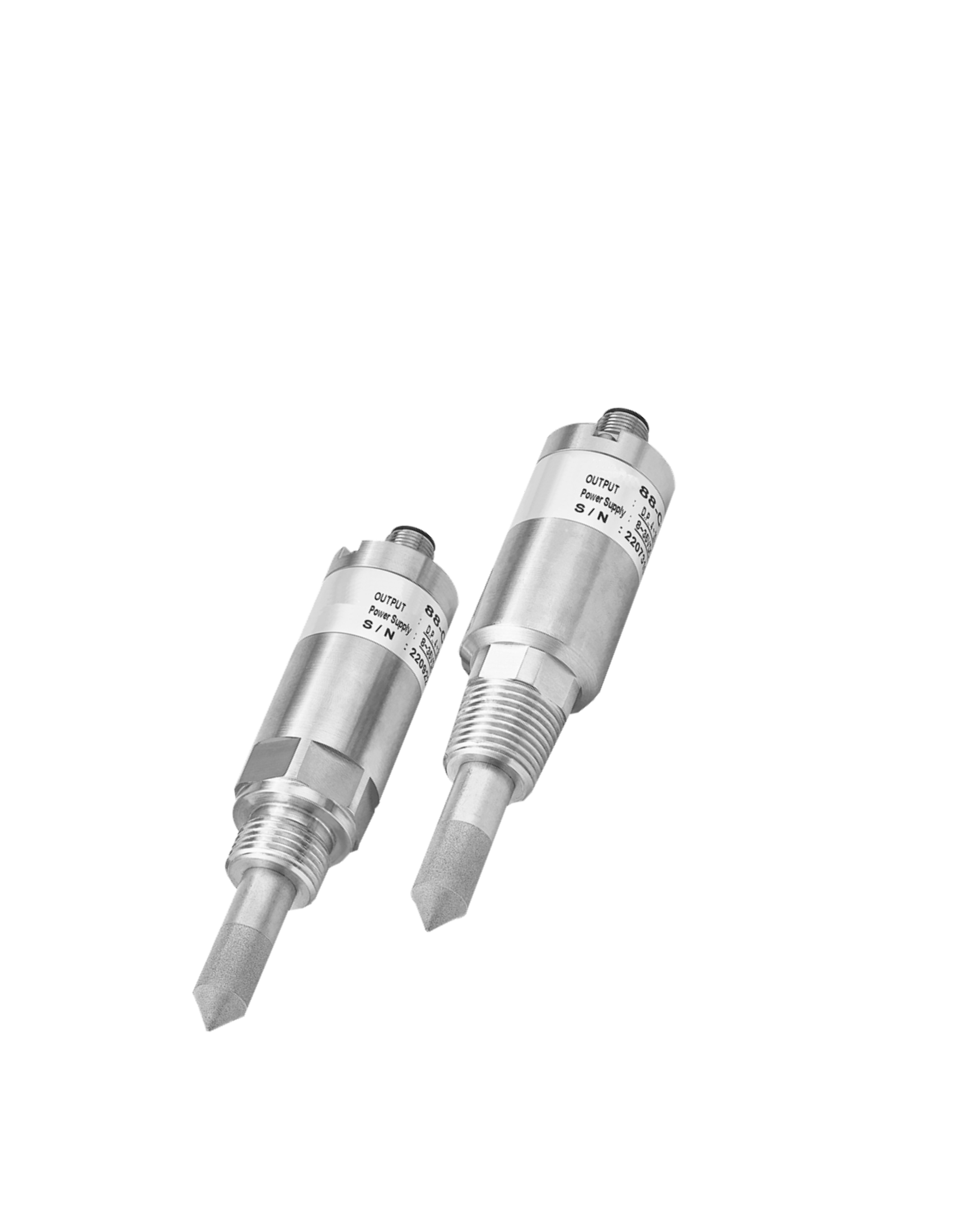

HS-188 SeriesHigh pressure and low humidityDew point sensor
Small size, sturdy and durable, high precision, good long-term honing stability
Dew point sensors are used to measure and monitor dew point temperature. The dew point (or dew point temperature) indicates the air temperature from which water contained in the air condenses. If this happens in a compressed air system, for example, it will result in system damage and reduced quality of the final product.
Dew point monitors (dew point monitors) are used in building technology to detect the risk of condensation, for example in air conditioning ceilings, pipes or control cabinets, before damage occurs.
■ Temperature compensation and linear correction function
■ Industrial grade chip is anti-condensation and can withstand pressure of 16 bar
■ High pressure, low humidity, programmable dew point measurement range -100... +60 dp°C
■ Standard Modbus RTU communication protocol, RS-485 communication interface
■ Small size, sturdy and durable, high precision, good long-term honing stability
■ In response to different application environments, various specifications of connecting teeth are provided for easy installation.
■ Various analog output signals available: 0... 1 V / 0... 5 V / 1... 5 V / 0... 10 V / 2... 10 V / 0... 20 mA / 4... 20 mA
■ Free dedicated planning software, which can adjust the planning dew point range and provide a variety of physical quantity options: dew point/frost point/absolute humidity, etc.
Application fields
■ Compressed air system
■ Freezer
■ Adsorption machine
■ Plastic dryer
■ Industrial drying process
■ Papermaking
■ Chemical process monitoring
All prices are pre-tax prices in RMB and do not include 13% VAT or shipping!
| Capacitive Humidity Sensor & Pt100 | |
| Scope of work | Dew point: -60... +60 dp°C |
| Output | |
| Maximum adjustment planning scope | Dew point: -100... +60 dp°C |
| Dew point conversion range of other physical quantities | Frost point: -60... 0 fp°C |
| Absolute humidity (volume) 0... 50000 ppm/v | |
| Absolute humidity (weight) 0... 50000 ppm/w | |
| Output Signal | 0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / |
| 0 ... 5 V / 0 ... 10 V | |
| Signal connection method | Three-wire circuit |
| Communication format | Standard RS-485 and 1 set of analog output signals |
| Linear accuracy (dew point operating range -60...+60 dp°C) | ±2 dp°C(at +25°C)±(0.02%F.S./°C) |
| Load impedance | Current output Max. 500Ω / |
| Voltage output Min. 10KΩ | |
| Output calibration (ZERO & SPAN) adjustment range | Factory software planning |
| Reaction time t90 (temperature at +25°C) | <20 seconds |
| Environment | |
| Measured medium | Air |
| Body working environment temperature | ﹣40 ... +60℃ |
| Body working environment humidity | 0... 95%RH (non-condensation) |
| Probe working environment temperature | ﹣40 ... +60℃ |
| Storage temperature | ﹣25 ... +60°C |
| Pressure resistance | 16 bar |
| Electrical specifications | |
| Operating power | DC 8 ... 35 V&AC 10 ... 30 V |
| Current consumption | DC 24 V, 50 mA |
| Electrical Connection | M12 quick connector |
| Installation and fixing | |
| Mounting Type | Metal quick connector |
| Protect | |
| Protection Rating | Body IP65 (probe: IP20) |
| Electrical protection | ■ Reverse protection ■ Overvoltage ■ Short circuit |
| Material | |
| Housing Material | stainless steel SUS304 |
| Probe material | Stainless steel SUS304 / Sintered filter head SUS316 |
| Weight | 233 g |
| Factory settings | |
| Planning dew point measurement range -100... +20 dp°C | |
| Output signal 4... 20 mA and RS-485 functionality as standard |
