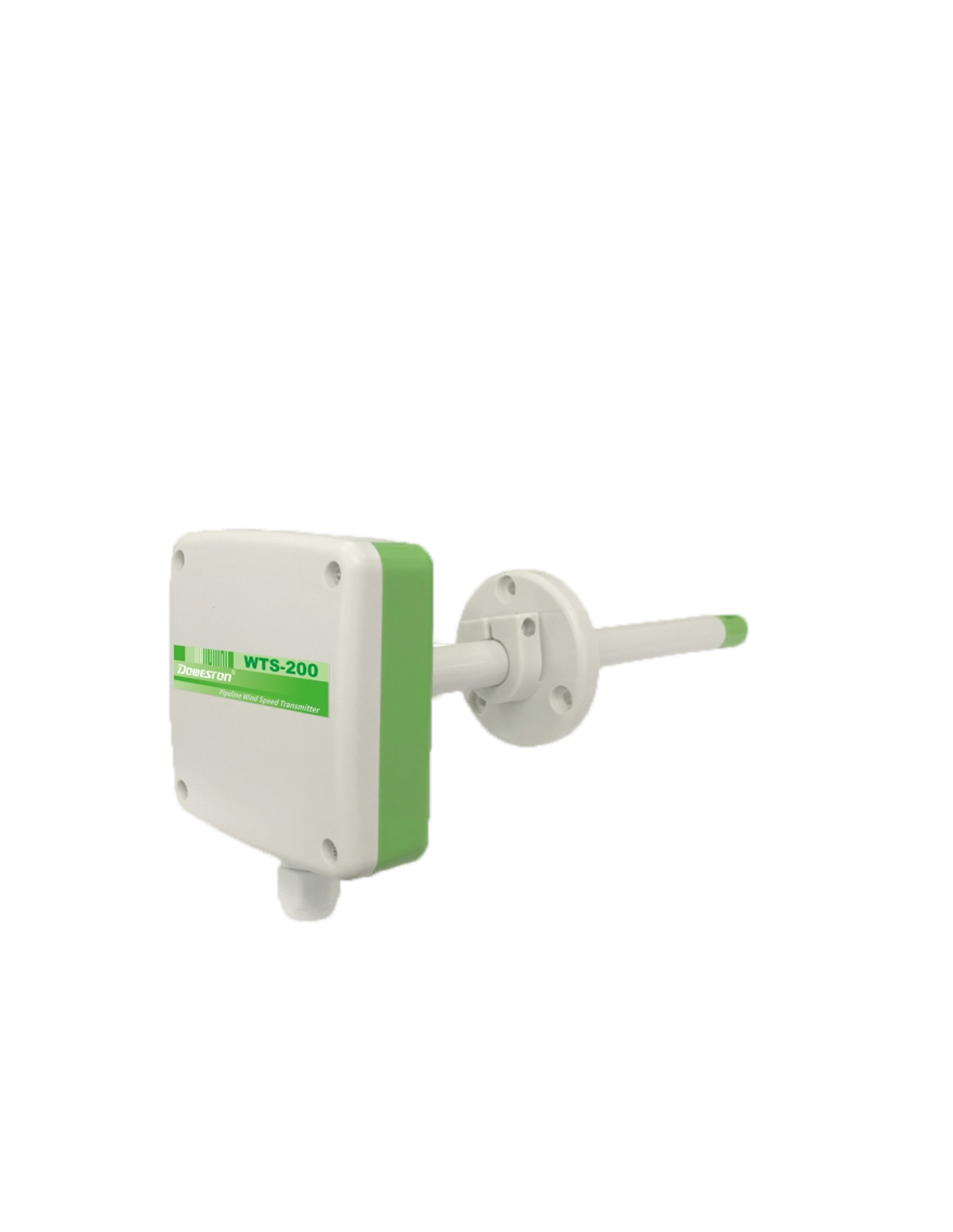

WTS-200
Duct Air Velocity Transmitter

■ High-precision wind speed measurement unit, low starting wind speed and sensitive response

■ Full-scale secondary calibration method, good linearity and high accuracy;

■ Open-hole flange installation, high-quality silicone sealing ring, small air leakage, durable;

■ The measurement cross-sectional area can be set, and real-time air volume values are uploaded according to the set pipe cross-sectional area;

■ Standard ModBus-RTU protocol, communication line length up to 2000 meters;

■ Wide measuring range, default 20m/s, customizable 30m/s

■ The terminal blocks adopt imported screw-free terminals, which require no tools and are convenient for wiring;

■ Using special EMC anti-interference devices, it has strong anti-interference ability;

■ DC10-30V wide-range power supply enables long-distance centralized powering;

■ With wind speed marking direction, it is easy to install on site.

Application fields

■ Smart agricultural greenhouse

■ Flower culture

■ Edible fungi cultivation and breeding pens

■ HVAC

■ Filter pressure drop monitoring

■ Power plant flue gas treatment

■ Textile, chemical industry, aviation

■ Duct air flow

■ Variable air volume system

■ Micro differential pressure measurement in operating rooms, clean rooms, biological laboratories, electronics, medical environments and other fields
