Home > Products > Environmental Monitoring > Air Quality Sensors > UB-255 Series Temperature, Humidity & Oxygen Integral Transmitter (Explosion-Proof)
New

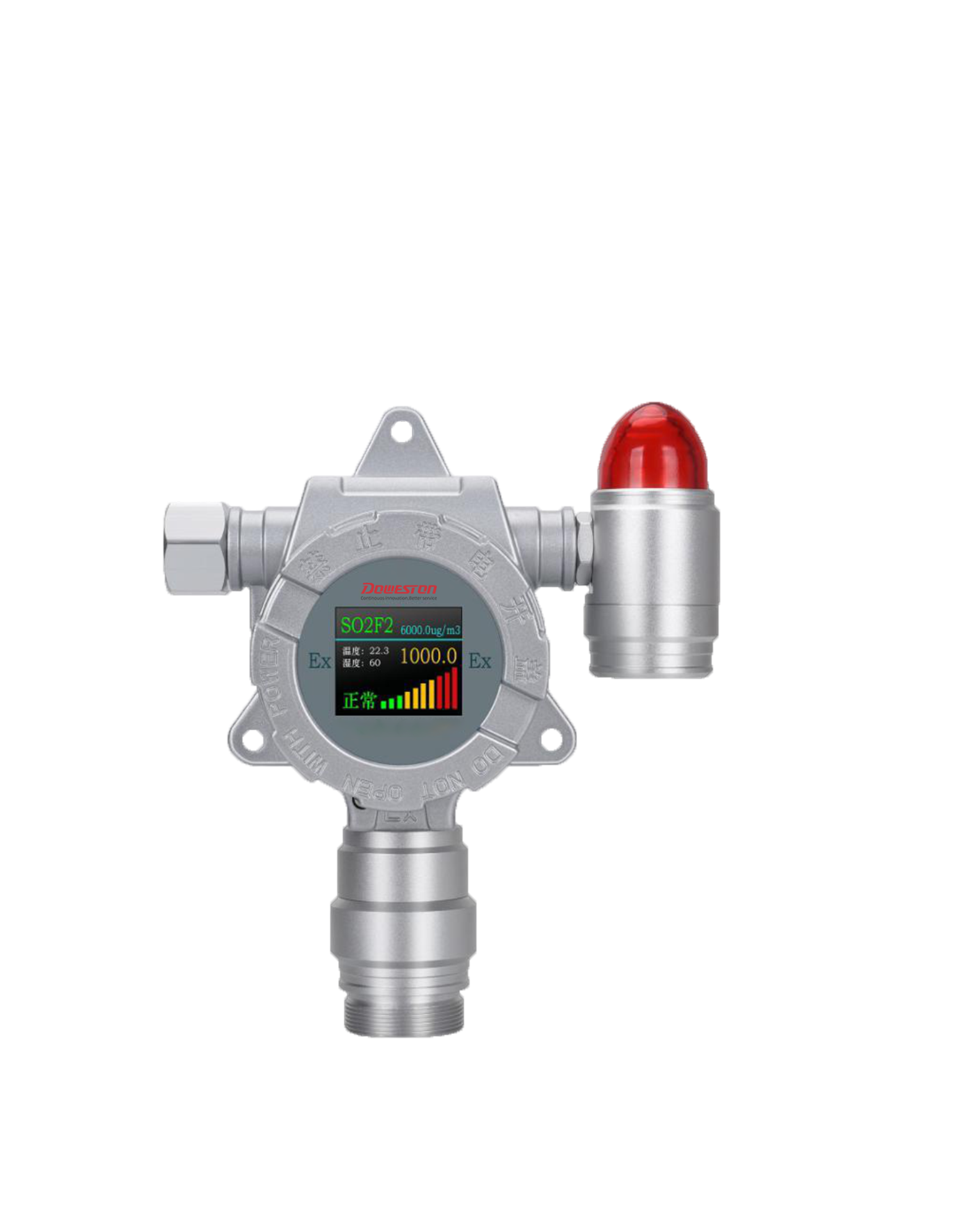

UB-255 series temperature, humidity and oxygen content integrated transmitter (explosion-proof type)
Suitable for real-time and accurate detection of gas concentration and leakage in various environments
The fixed gas detector UB255 series is suitable for real-time and accurate detection of gas concentration and leakage in various environments, using catalytic combustion, atmospheric monitoring, electrochemistry, thermal conductivity, laser, PID, infrared and other sensors and microcontroller technology. It has the advantages of fast response, high measurement accuracy, good stability and repeatability. The explosion-proof wiring method is suitable for various dangerous places, and is compatible with various control alarms, PLC, DCS and other control systems, which can simultaneously realize on-site alarm and early warning, 4-20mA Standard signal output, relay switching output; perfect display of various technical indicators and gas concentration values; at the same time, it has a variety of extremely strong circuit protection functions to effectively prevent instrument damage caused by various human factors and uncontrollable factors.
■ Intrinsically safe circuit design, explosion-proof certification, secondary lightning protection, anti-static, lightning protection and anti-static capabilities exceed national standards, and can withstand high-intensity pulse surge current impacts. High reliability and stability.
■ Standard bus RS485 and 4~20mA standard signals are output simultaneously, 1 set of relay switch output, optional frequency output 200-1000Hz, Hart protocol signal, 1~5V output, wireless transmission (10-50 kilometers or unlimited distance). It can be wired or wireless remote real-time monitoring, and the data can be uploaded to a mobile phone or transmitted to the Environmental Protection Bureau, other monitoring centers, monitoring equipment, and monitoring computers through LAN or the Internet, and the on-site concentration can be monitored in real time through free host computer software or gas alarm controllers.
■ It is compatible with various secondary meters, data acquisition modules, PLC, and DCS systems. It can directly drive solenoid valves, fans, alarms and other equipment, and can also drive high-power equipment by driving intermediate relays.
■ The standard infrared remote control can realize operations without opening the cover in dangerous situations, such as: modifying alarm points, concentration calibration, zero point calibration, silencer, factory reset, entering menu, 2.5-inch high-definition color screen (TF) to display real-time concentration, temperature, humidity, automatic tracking of zero point to prevent drift, temperature compensation, and multi-level calibration.
Application fields
Petroleum and petrochemical, chemical plants, smelting plants, steel plants, coal plants, thermal power plants, medical research, pharmaceutical production workshops, tobacco companies, environmental monitoring, school scientific research, building construction, fire alarms, sewage treatment, industrial gas process control, boiler rooms, garbage treatment plants, tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance, indoor air quality testing, hazardous site safety protection, aerospace, military equipment monitoring, etc.
All prices are pre-tax prices in RMB and do not include 13% VAT or shipping!
| Detection range | 0-100,0-500,0-2000,0-4000PPM;0-5,30,100%VOL ( span customizable ) |
| Resolution | 0.01,0.1,1PPM;0.01,0.1,1%VOL |
| Display type | LCD display |
| Temperature and humidity | Temperature detection range: -40 ~ 60°C, humidity detection range: 0-100%RH |
| Detection method | Diffusion type, flow type and pump suction type are optional |
| Detection accuracy | ≤±3% |
| Response Time | ≤20 seconds (T90) |
| Recovery time | ≤20 seconds |
| Signal Output | ① 4-20mA signal: standard 16-bit precision 4-20mA output chip, transmission distance 1Km |
| ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km | |
| ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself | |
| ④ Pulse signal: also called frequency signal, frequency range is adjustable (optional) | |
| ⑤ Switching signal: 2 sets of relays are standard, a third set of relays is optional, relay passive contacts, capacity 220VAC 3A/24VDC 3A | |
| Transmission method | ① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) |
| ②GPRS transmission: Built-in GPRS module can transmit data remotely in real time without distance limitation (optional) | |
| ③Lora transmission: transmission distance 10-50 kilometers | |
| Receiving equipment | User computer, control alarm, PLC, DCS, etc. |
| Alarm mode | On-site sound and light alarm, external alarm, remote controller alarm, computer data collection software alarm, etc. |
| Alarm settings | Two-level alarm is standard, three-level alarm is optional; alarm mode can be set: regular high and low alarm, interval control alarm |
| Electrical interface | 3/4″NPT internal thread, 1/2″NPT internal thread, supports 2 electrical connection methods at the same time |
| Explosion-proof Marking | ExdII Ct6 ( flameproof ) |
| Protection Rating | IP66 |
| Operating power | 24VDC (12~30VDC) |
| Dimensions weight | 183×143×107mm (L×W×H) 1.5Kg (net weight of instrument) |
| Housing material | Die-cast aluminum + sandblasting nitriding/fluorocarbon paint, explosion-proof and anti-corrosion |
| Operating Temperature | -30 to 60°C |
| Working humidity | ≤95%RH, no condensation |
| Working Pressure | 0 ~ 100Kpa |
| Mounting Type | Wall-mounted, pipe-mounted |
| Linear error | ≤±1% |
| Zero drift | ≤±1% (F.S/year) |
| Repeatability | ≤±1% |
