Home > Products > Process Analysis > Online Conductivity Analyzers > DD-154 Series Online Conductivity
New

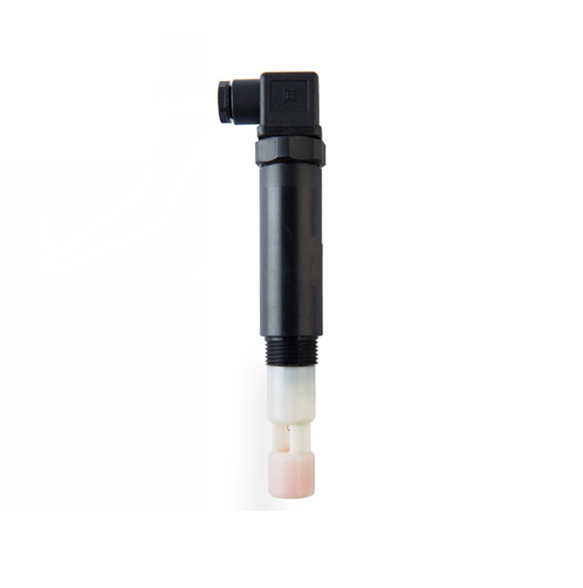

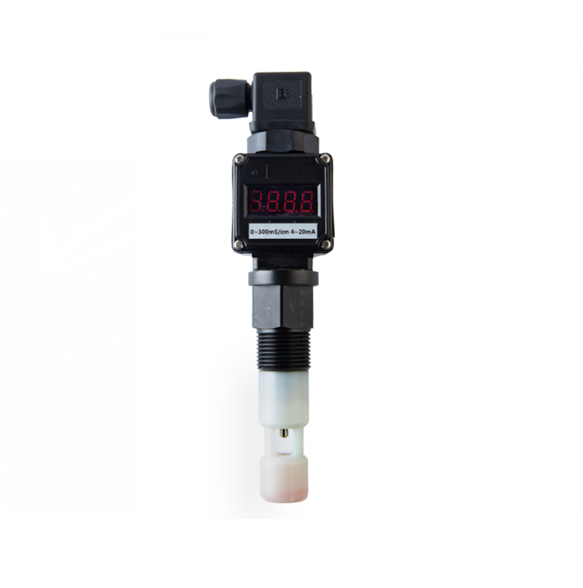

DD-D154 series online conductivity sensor
(4-20mA, Rs-485)
I hope you can check out our technical specifications to learn about our new DD-D154. It's cost-effective, purpose-built to meet the needs of high-volume applications, and we look forward to working with you in the new year.
Applications
All types of water treatment (rivers/lakes/drinking water sources/groundwater/marine water), aquaculture, environmental monitoring, CIP and related industries.
Features
●Drinking water/surface water/various water supplies/industrial water treatment
● signal output: 4~20mA
●Conveniently connected to third-party devices such as PLC, DCS, industrial control computers, general controllers, paperless recording instruments or touch screens.

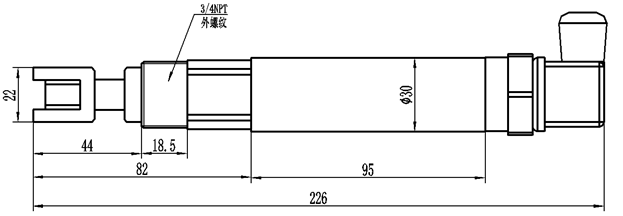

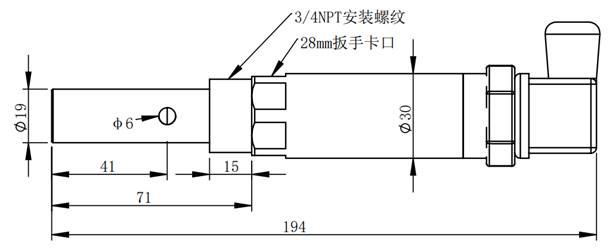

●3/4NPT pipe thread, easy to install in pipes or tanks.
●IP65 Protection rating.
| Model | DD-D154A | DD-D154B | ||
| Measuring range and resolution | 0.01~20μS/cm | 0.01 | 0.01~20μS/cm | 0.01 |
| 0.1~200μS/cm | 0.1 | 0.1~200μS/cm | 0.1 | |
| 0~5000μS/cm | 1 | 0~5000μS/cm | 1 | |
| 0~200mS/cm | 0.1 | 0~200mS/cm | 0.1 | |
| Accuracy | ±1.5%F.S. | ±1.5%F.S. | ||
| Display | 4 digit LED | No display | ||
| Operating Temperature | 0-65°C | 0-65°C | ||
| Working Pressure | <0.6MPa | <0.6MPa | ||
| Power supply | 24VDC±10% | 24VDC±10% | ||
| Signal Output | 4~20mA | 4~20mA | ||
| Wetted material | ABS/SUS316L( default )/POM | ABS/SUS316L( default )/POM | ||
| Mounting Type | 3/4NPT pipe thread | 3/4NPT pipe thread | ||
| Temperature compensation | Automatic temperature compensation (Pt1000) | Automatic temperature compensation (Pt1000) | ||
| Calibration method | Two-point calibration | Two-point calibration | ||
| Power Consumption | 0.1W~0.5W | 0.1W~0.5W | ||
| Protection Rating | IP65 | IP65 | ||

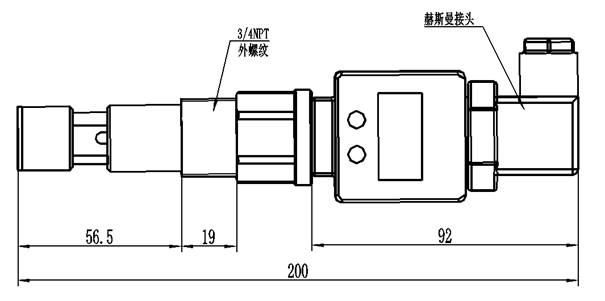

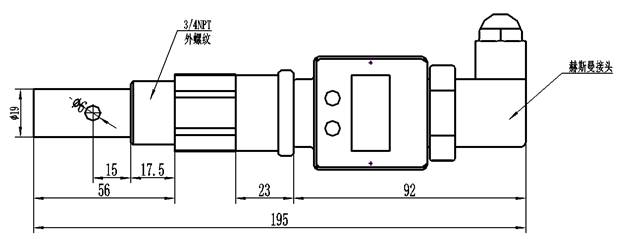

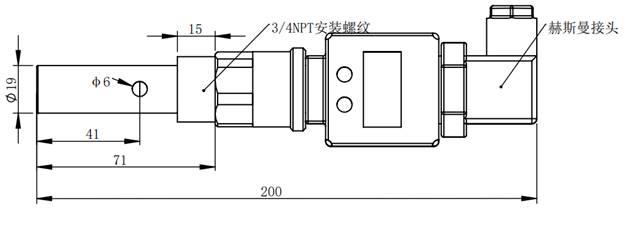

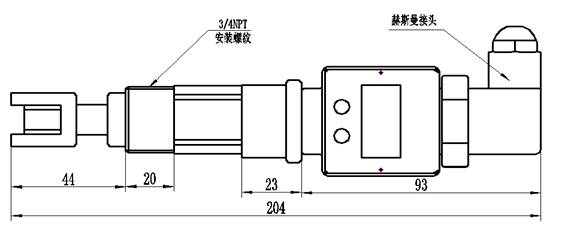

DD-D154A-0.01
DD-D154A-0.1
DD-D154A-1.0
DD-D154A-SI

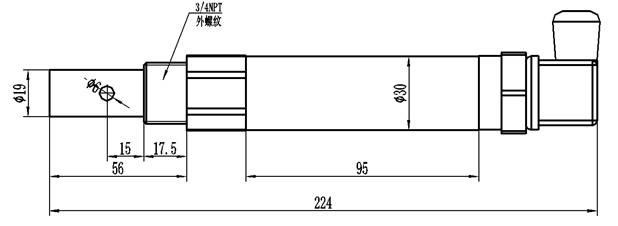

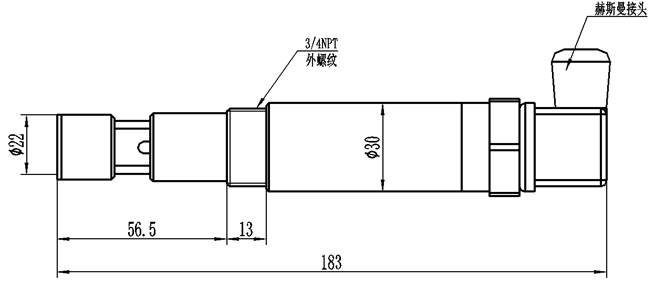

DD-D154B-0.01
DD-D154B-0.1
DD-D154B-1.0
DD-D154B-SI
