Home > Products > Environmental Monitoring > Soil Monitoring > DTH-121 Series Soil Temperature, Moisture & Conductivity 3-in-1 Transmitter
New

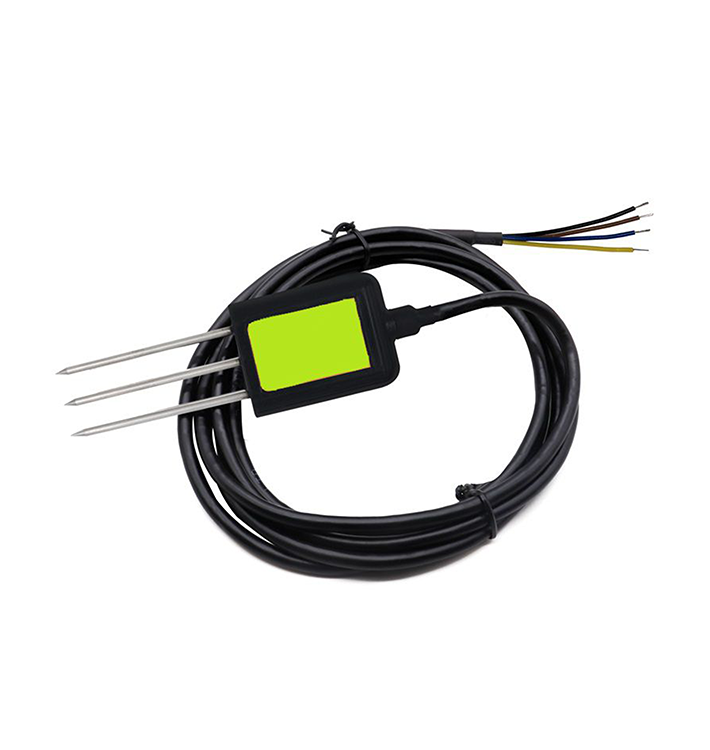

DTH-121 seriesSoil temperature moisture conductivityThree-in-one transmitter
Directly and stably reflect the true moisture content of various soils
The DTH-121 series soil temperature, moisture, and conductivity three-in-one transmitter can directly and stably reflect the true moisture content of various soils by measuring the dielectric constant of the soil. It can measure the volume percentage of soil moisture and is a soil moisture measurement method that complies with current international standards.
■ It can be used to determine the conductivity of water and fertilizer integrated solutions, as well as other nutrient solutions and substrates.
■ The electrodes are made of specially treated alloy materials, which can withstand strong external impacts and are not easily damaged.
■ Completely sealed and resistant to acid and alkali corrosion, it can be buried in the soil or directly put into water for long-term dynamic testing.
■ High accuracy, fast response, good interchangeability, probe insertion design ensures accurate measurement and reliable performance.
Application fields
■ Smart agricultural greenhouse
■ Flower culture
■ Edible fungi cultivation
■ Breeding pen
■ Aquarium
■ Exhibition halls and museums
■ Conference center
■ Indoor stadium
All prices are pre-tax prices in RMB and do not include 13% VAT or shipping!
Type 485:
DC power supply (default) | DC 4.5-30V | |
Maximum power consumption | 0.7W (24V DC power supply) | |
Operating Temperature | -40℃~+60℃ | |
Core chip temperature resistant | 85℃ | |
Conductivity parameter | Range | 0-20000us/cm |
Resolution | 10us/cm | |
Accuracy | ±3% within the range of 0-10000us/cm; ±5% within the range of 10000-20000us/cm | |
Soil moisture parameters | Range | 0-100% |
Resolution | 0.1% | |
Accuracy | 2% within 0-50%, 3% within 50-100% | |
Soil temperature parameters | Range | -40~80℃ |
Resolution | resolution: 0.1℃ | |
Accuracy | ±0.5°C (25°C) | |
Conductivity Temperature Compensation | Built-in temperature compensation sensor, compensation range 0-50°C | |
Protection Rating | IP68 | |
Probe material | Anti-corrosion special electrode | |
Sealing material | Black flame retardant epoxy resin | |
Default cable length | 2 meters, cable length can be customized as required | |
Overall Dimensions | 45*15*123mm | |
Output Signal | RS485(Modbus protocol ) | |
Analog type:
DC power supply (default) | DC 10-30V | |
Maximum power consumption | 0.4W (12V DC power supply) | |
Operating Temperature | -40℃~+60℃ | |
Core chip temperature resistant | 85℃ | |
Conductivity parameter | Range | 0-10000us/cm |
Accuracy | ±3%; | |
Soil moisture parameters | Range | 0-100% |
Accuracy | 2% within 0-50%, 3% within 50-100% | |
Conductivity Temperature Compensation | Built-in temperature compensation sensor, compensation range 0-50°C | |
Protection Rating | IP68 | |
Probe material | Anti-corrosion special electrode | |
Sealing material | Black flame retardant epoxy resin | |
Default cable length | 2 meters, cable length can be customized as required | |
Overall Dimensions | 45*15*123mm | |
Output Signal | 4~20mA current output | |
Load capacity | Current output≤600Ω | |

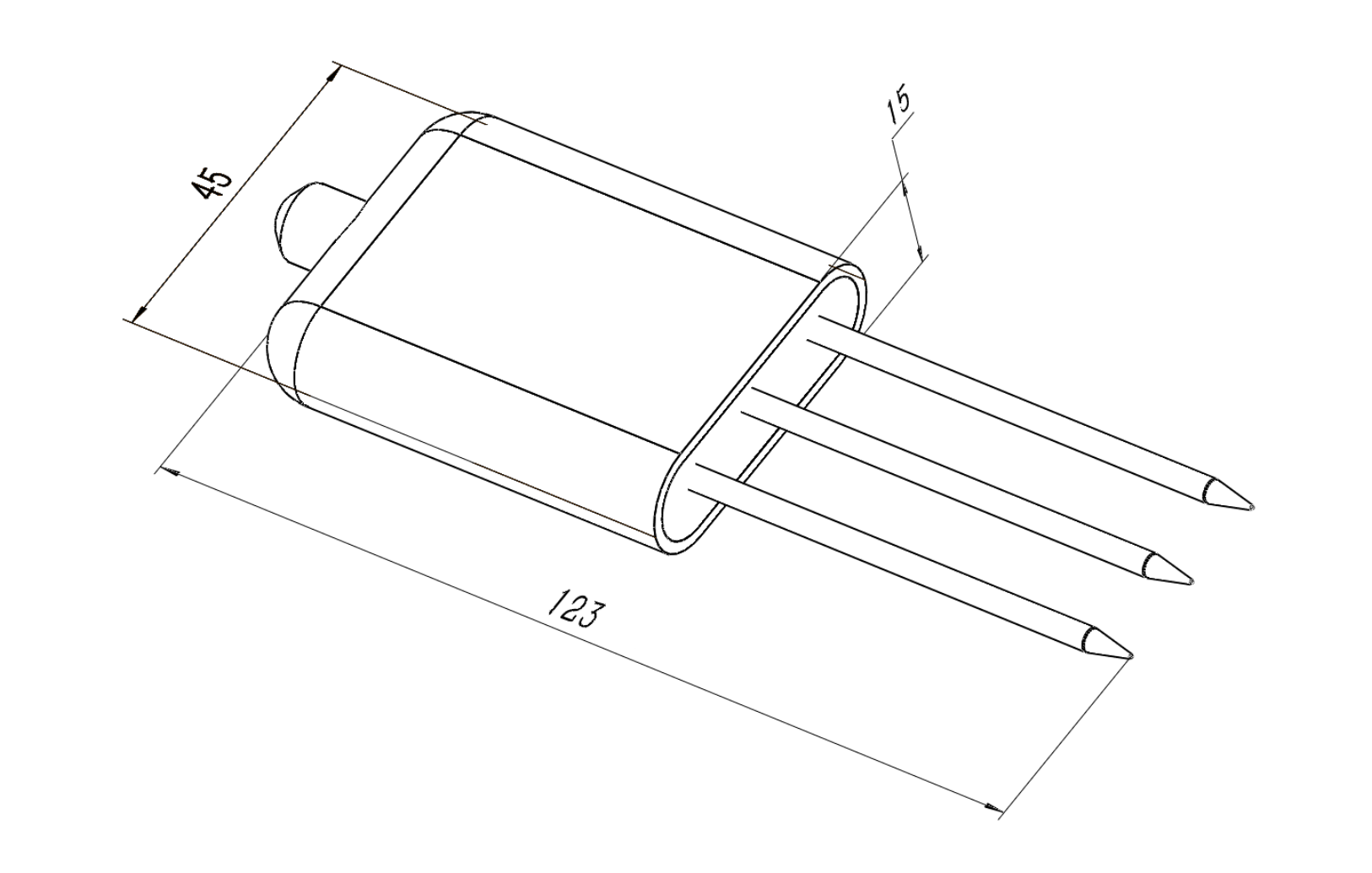

Equipment dimension drawing (unit: mm)
