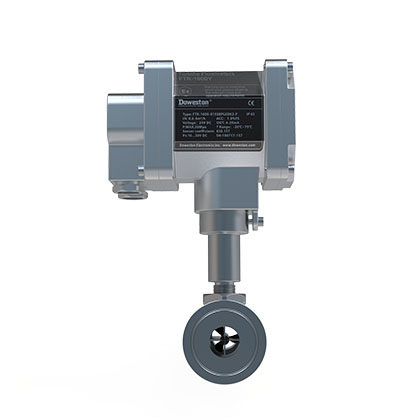

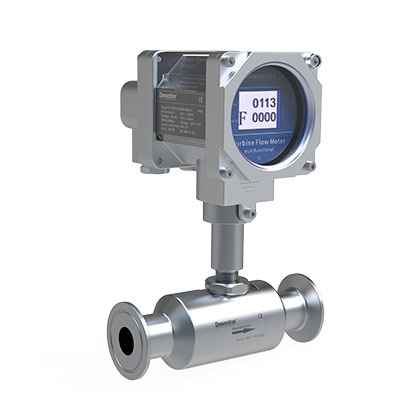

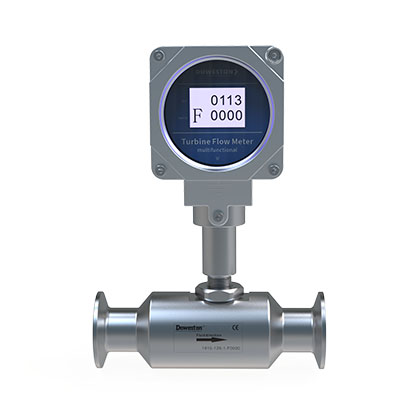

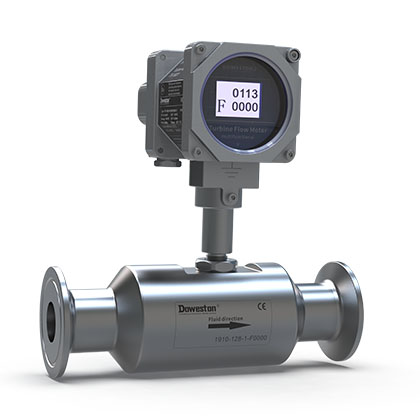

FTR-1410TI Series Multifunction
Sanitary Turbine Flow Meter

Basic principle of FTR-1410TI multifunctional sanitary turbine flow meter: fluid flows through the sensor housing. Since the blades of the impeller have a certain angle with the flow direction, the impulse of the fluid causes the blades to have a rotational moment. After overcoming the friction moment and fluid resistance, the blades rotate. After the torque is balanced, the rotational speed is stable. Under certain conditions, the rotational speed is proportional to the flow rate. Since the blades are magnetically permeable It is in the magnetic field of the signal detector (composed of magnet steel and coils). The rotating blades cut the magnetic lines of force and periodically change the magnetic flux of the coil, thereby inducing an electrical pulse signal at both ends of the coil. This signal is amplified and shaped by the amplifier to form a continuous rectangular pulse wave with a certain amplitude, which can be remotely transmitted to the display instrument to display the instantaneous flow and cumulative amount of the fluid. Within a certain flow range, the pulse frequency f is proportional to the instantaneous flow rate Q of the fluid flowing through the sensor.

■ Low pressure loss; corrosion-resistant impeller

■ Uses advanced ultra-low-power MCU technology: powerful functionality, low power consumption, superior performance

■ EEPROM retains totalized flow and meter coefficients on power loss for more than 10 years

■ Using high-performance MCU central processor to complete data collection, processing, display output, accumulated flow and instantaneous flow are simultaneously displayed on the display

■ Amplifier and sensor can be separated (up to 15 m)

■ Strong resistance to magnetic interference and vibration; reliable performance and long service life

■ Corrosion resistant, suitable for acid and alkaline solutions

■ Low lower flow velocity limit, wide measuring range

■ Available as an insertion type for large-diameter piping: low pressure loss, economical, removable without stopping flow, easy to install and maintain.

■ Wide rangeability: up to 1:20 for medium and large diameters, 1:10 for small diameters

 Application Areas:

■ FTR-1410TI multifunctional sanitary turbine flow meterWidelyUsed to measure the volumetric flow rate and total amount of low-viscosity liquids in closed pipes. It has extensive use value in food, beverage, pharmaceutical and other industries.
