Home > Products > Level Measurement > Microwave Level Switches > LBSF-L-101 Series High-Temperature Microwave Level Switch
New

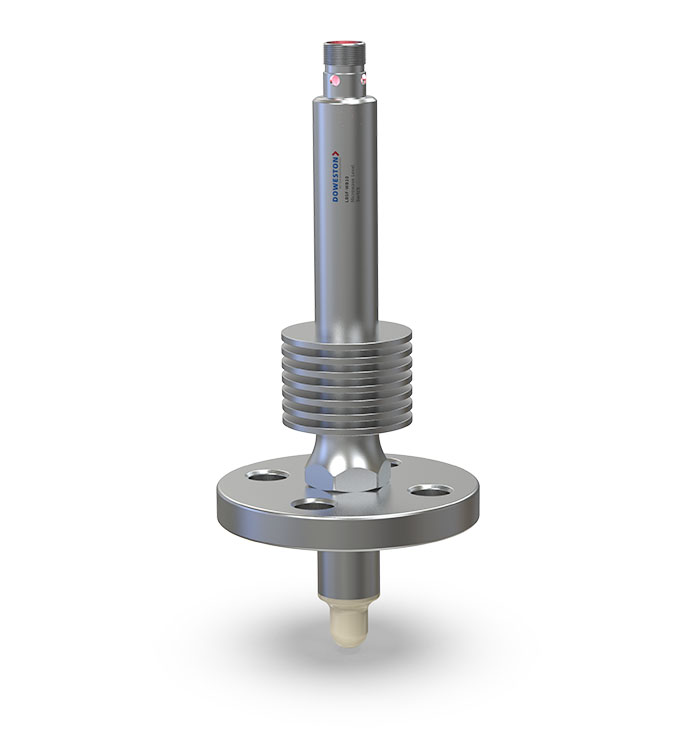

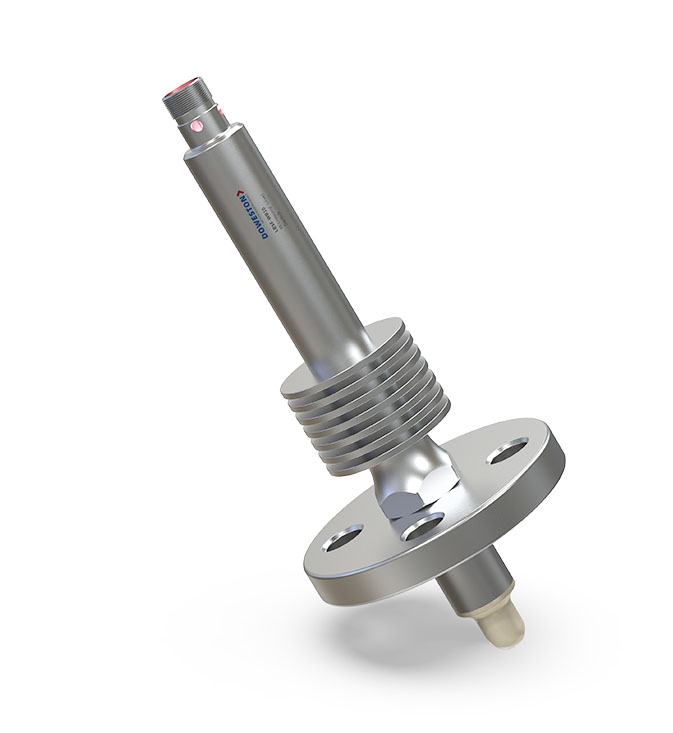

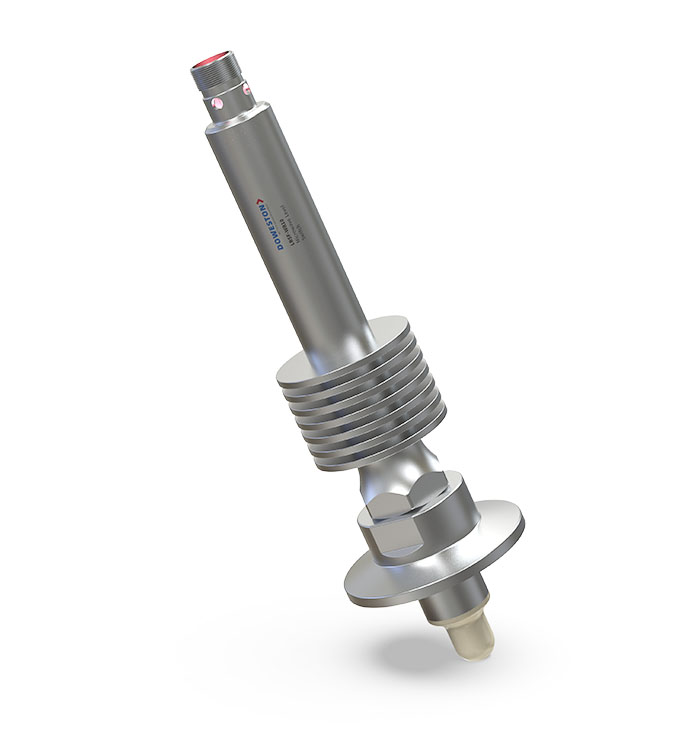

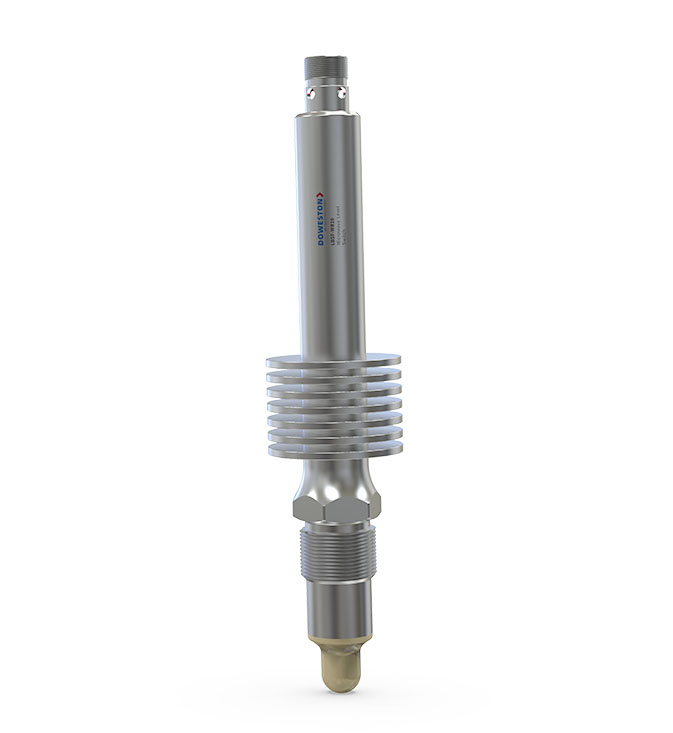

LBSF-L-101 series high temperature microwave liquid level switch
Suitable for mostLiquid, pasty, viscous or solid mediaLiquid (material) level alarm
LBSF-L-101 series microwave liquid level switchThe microwave frequency sweep principle is used as the basis for position alarm output. ownCompact structure, easy to install, no moving parts, reliable and durable, easy to complete point level detection, suitable for liquid, paste, viscous or solid media
Differentiates foam and liquid, measures separation layers, is easy to clean and maintain, supports various process connections,Suitable for health industry and industrial applications Can meet most measurement needs. Suitable for liquid level alarms in various mechanical equipment, normally open and normally closed can be set.
LBSF-L-101 series liquid (material) level switchIt is a device that converts changes in the position of the measured object into capacitance. The capacitance level meter has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, insensitivity to the physical and chemical properties of the medium, non-contact measurement, and the ability to work under severe conditions such as high temperature, radiation and strong vibration. It has been used in various fields of industrial and agricultural production.
■ No moving parts; long life and high stability
■ Made of PEEK, PTFE and other materials, it is wear-resistant and corrosion-resistant, and can adapt to harsh working conditions.
■ Output PNP, NPN, etc. can be connected to PLC or alarm
■ wide adaptability: measures solid granules, powders and all kinds of liquids
■ Highly buildup-resistant
■ Process connection: threaded connection, flange connection, chuck connection
■ Ingress protection: electrical section IP65
■ Seal: fluorine rubber (FKM)
Compatible Media | Butter, honey, sand, milk powder, flour, detergent, alcohol, methanol, etc. |
Measurement hysteresis | ±1mm |
| Measuring Range | Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring |
| Overall Accuracy | 0.2% FS (typical); 0.5% |
Medium dielectric constant | ≥1.5 |
| Surface roughness | Ra≤0.8 |
Display | Indicator light optional |
Input Voltage | 24V DC 12mA |
Output | SPDT, NPN, PNP transistor output |
Operating Temperature | -20-135°C (high temperature) |
Pressure | -1-40bar |
Ambient Temperature | -20-70°C, -40-85 ℃ |
Response Time | <0.2s( typical value ) (10...90%FS) |
| Damping time | 0-5s can be set |
Probe electrode material | Stainless steel 316L, PEEK |
| Insulation material | UPE, PTFE, PEEK |
Protection Rating | Electrical section IP67 |
Electrical Connection | Aviation connector (GAR). |
Sealing ring | FKM fluororubber, EPDM gasket, NBR gasket |
Mounting Type | Threaded connection, flange connection, chuck connection |
Application Areas:
■LBSF-L-101 series liquid (material) level switch is suitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.
