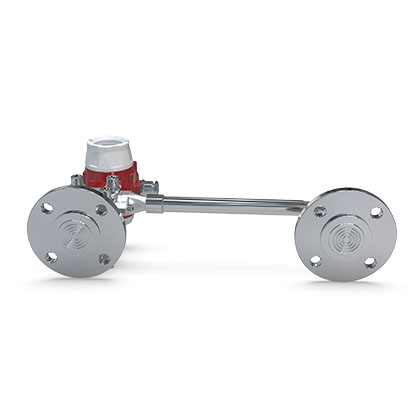

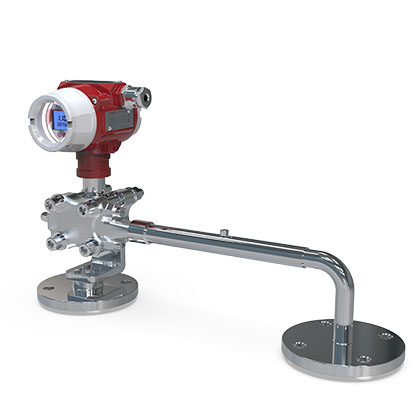

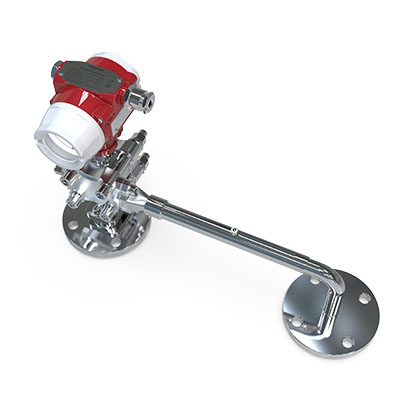

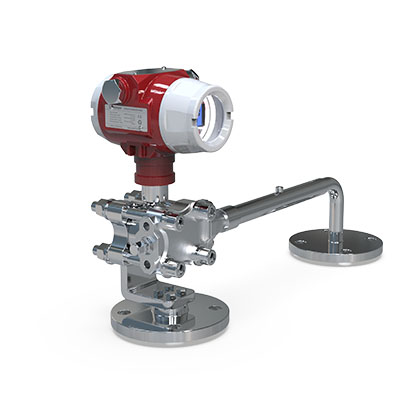

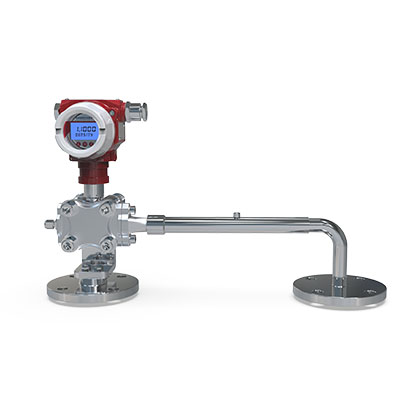

LPL-750E Series
Flanged Differential Pressure Density Meter

LPL-750E flange type differential pressure density meter is passedThe density is calculated by comparing the pressure difference of a fluid at two different points. This difference reflects the change in velocity of the fluid, according to Bernoulli's law, thus achieving an accurate measurement of the fluid's density.

■ Applicable liquids: Measuring explosive and non-explosive hazardous liquids, corrosive liquids (acid, alkali solutions, etc.), water, acid, alkali, pulp, dyes, oils, milk, alcohol, beverages, etc.

■ Diaphragm material: stainless steel 304/316L

■ density Accuracy:±1,0 kg/m3(±0,001 g/cm3)

■ Working density range: 0-3000 kg/m3(0-3 g/cm3)

■ Working temperature range: -40°C~150°C

■ Display: LCD indication output (optional)

■ Output: 2 sets of normally open and normally closed contacts; 4-20mA

■ Process connection: threaded, flanged

■ Protection level: electrical part IP65/IP67 (optional)

■ Electrical connection: M18x1.5; M20x1.5 (explosion-proof) (can be customized)

■ Explosion protection: ExdIICT6, NEPSI

■ Seal: fluorine rubber (FKM)
