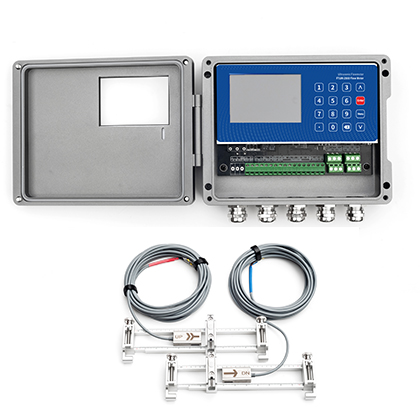

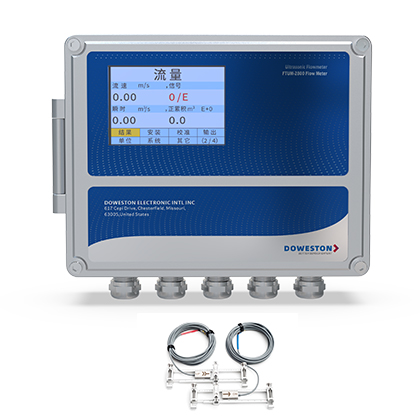

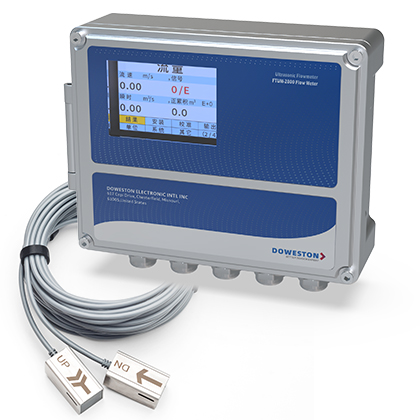

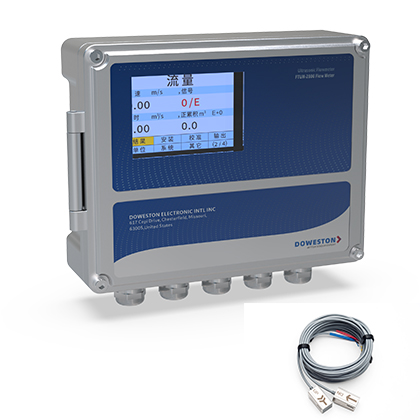

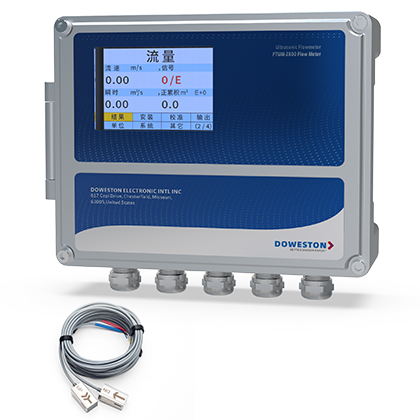

FTUM-2800B Ultrasonic Flow Meter
Measuring water supply pipelines, quick installation without drilling, 5G signal transmission,Continuous water flow measurement
FTUM-2800B Ultrasonic Flow MeterThe main advantage is the clamp-on ultrasonic flow meter: it is different from 99% of domestic applications.The capacitor charging algorithm that is about to be eliminated is either used alone or one of the related algorithmsThe external clamp flow meter is a domestic high-end time-difference ultrasonic flow meter.The measurement rate can be greater than 300 times per second (99% of other domestic clamp-on ultrasonicWave flow meters are less than 50 times, or even only once), strict control accuracy is smallIs less than 1.0%; and it has greatly improved the tolerance rate of bubbles in the measuring pipe diameter.Liter, it can withstand continuous bubbles or impurities for up to 5 seconds.
Compared with other conventional flow meters, the FTUM-2800B ultrasonic flow meter has the following features in addition to its high on-site installation flexibility, high response speed and better measurement capabilities at low flow rates:
1. Use an independent high-performance FPGA chip with a 400,000 gate array. The measurement rate can be greater than 300 times per second. Compared with other brands, the tolerance rate of bubbles in the measurement pipe diameter has been greatly improved. It can withstand continuous bubbles for up to 5 seconds.
2. The signal strength increases, and it has greater penetrating power against various scales, rust in pipes and pipe linings.
3. 4-line LCD display, Chinese/English bilingual menu, easy to operate.
4. The sensor adopts special manufacturing process and matching technology, and the zero point range can be controlled within 0.03m/s. The static time difference between each pair of sensors is less than 2 nanoseconds, thus effectively ensuring the authenticity of the measured time difference.
Range | ±0.03m/s ~ ±5m/s |
| Accuracy | ±1% |
| Repeatability | 0.2% |
| Linearity | ±1% |
| Pipe diameter | DN15mm~DN1200mm |
| Output | Analog output: 4~20mA, maximum load 750Ω. pulse output: 0~10KHz |
| Communication | RS232/RS485 Modbus |
| Power supply | 10~36VDC/AC90~245V |
| Display | 320*480 color TFT screen display |
| Operating Temperature | transmitter:-20℃~60℃ Sensor: -40°C~80°C (normal temperature: TT01, TT02) Sensor: -40°C~130°C (high temperature: TT03, TT05) Sensor: -40°C~180°C (special high temperature: TT02H) Small diameter sensor: 0°C~65°C (normal temperature: TT02S) Small diameter sensor: 0°C~115°C (high temperature: TT03S) |
| Humidity | Up to 99% RH, non-condensing |
| Transmitter | Aluminum alloy IP65 |
| Sensor | Sealed design, IP68 Twisted pair shielded outlet Standard/maximum cable length: 9 meters/300 meters |
