Home > Products > Process Analysis > Ammonium/Nitrate > NH3-N-6330 Online Ammonia Nitrogen Auto-Analyzer
New

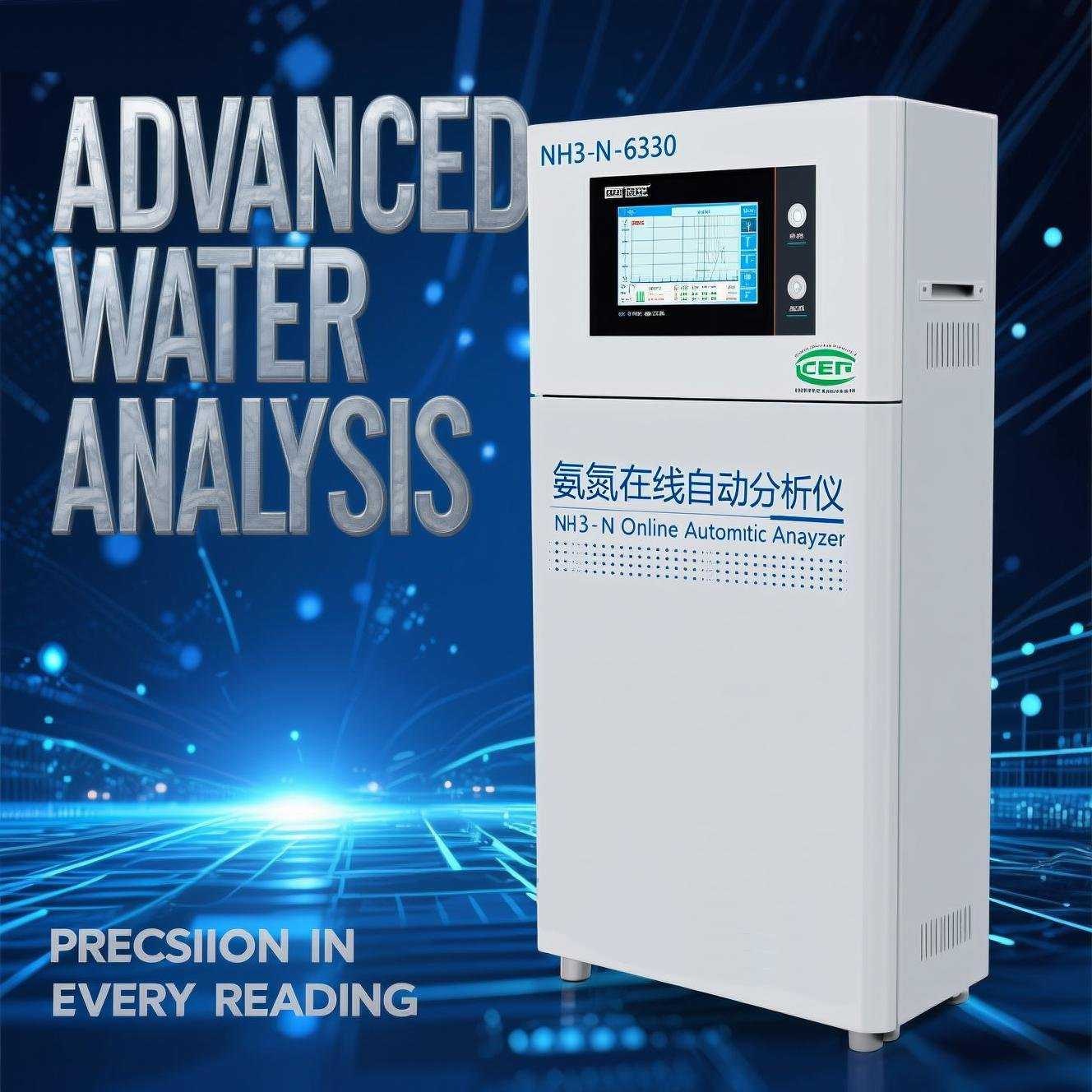

NH3-N-6330 ammonia nitrogen online automatic analyzer
high accuracy,Less potion consumption
NH3-N-6330 Ammonia Nitrogen Online Automatic Analyzer is an intelligent monitoring device using second-generation low-consumption reagents and miniaturized design. It can measure the ammonia nitrogen content of surface water, industrial waste water, domestic sewage and other water bodies. It performs precise online monitoring, with continuous detection, real-time analysis, and data storage and upload functions. Its optimized water sample collection system and remote operation and maintenance functions ensure accurate and stable monitoring data, fully complying with the latest environmental protection standards.
❖ Typical applications:
Suitable for online water quality monitoring of surface water, river sections, etc.
Discharge monitoring of sewage treatment, chemical industry, printing and dyeing wastewater, etc.
Suitable for industrial process raw water treatment process analysis
Wall-mounted installation, minimizing reagents and minimizing waste liquid
Platform design, high integration, simple operation
Visualized processes to facilitate operational analysis and diagnosis
Automatic range switching, convenient maintenance
3C certification standard, electrical/water chemical dry and wet environment separation
Remote monitoring, remote diagnosis, remote standard sample verification
Hierarchical authority password protection function to enhance system security
Comply with new national environmental protection standards
Can provide big data cloud platform hosting services
Measurement method | Salicylic acid spectrophotometry | ||
Human-computer interface | 7-inch color touch display | ||
Measuring range | (0~150)mg/L ( customizable ) | ||
Lower limit of quantification | ≤0.15mg/L (indicating error ±30%) | ||
Indication error | Ammonia nitrogen concentration ≤2mg/L:±8% | ||
2mg/L < ammonia nitrogen concentration ≤ 5mg/L: ±5% | |||
Ammonia nitrogen concentration > 5mg/L: ±3% | |||
Resolution | 0.001mg/L | ||
Repeatability | Ammonia nitrogen concentration ≤10mg/L: ≤2.0% | ||
Ammonia nitrogen concentration > 10mg/L: ≤5.0% | |||
Measurement interval | Whole point or customized (support remote control) | ||
Data storage | Always keep the last 10,000 groups | ||
Communication port | Numbers | RS485, RS232 (MODBUS-RTU standard protocol) | |
Simulation | 2-wire (4-20) mA | ||
Power supply | AC (100~240) V; 50/60Hz | ||
Maximum power consumption | ≤120W | ||
Operating environment | temperature: (5~40) ℃ | Humidity: ≤90%RH (no condensation) | |
Overall Dimensions | ( high * wide * deep ) (800×400×202) mm | ||
Quality | 25kg | ||
Accessory optional unit:
SIA-710 constant pressure, angle filter device 1 set
