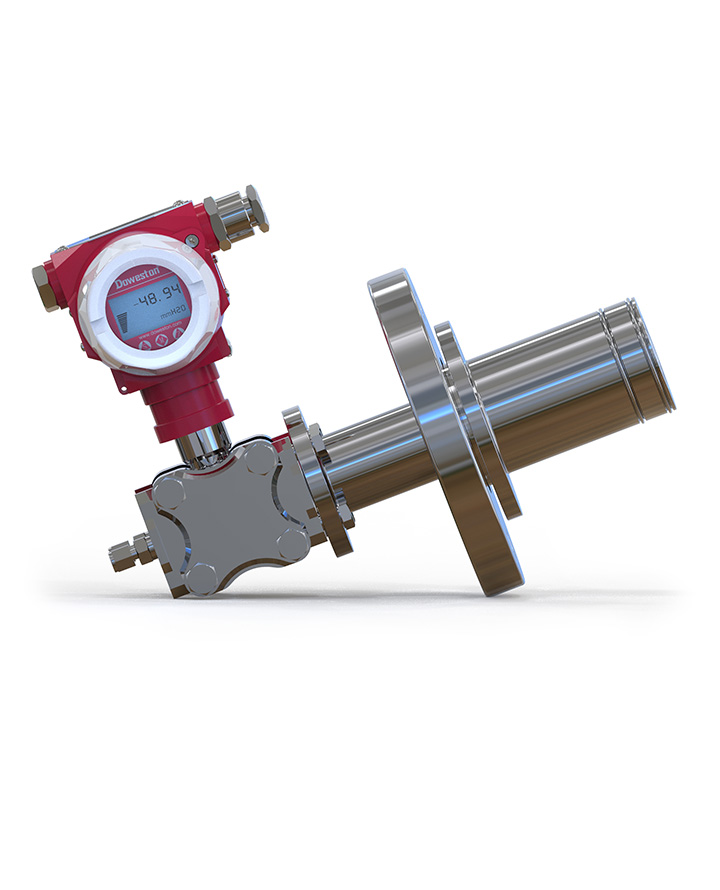

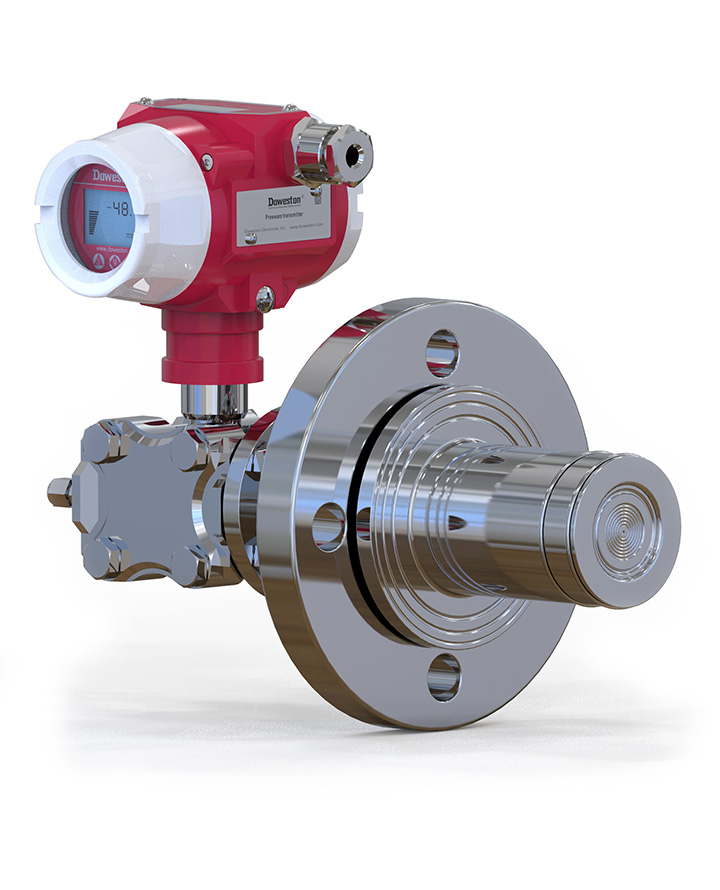

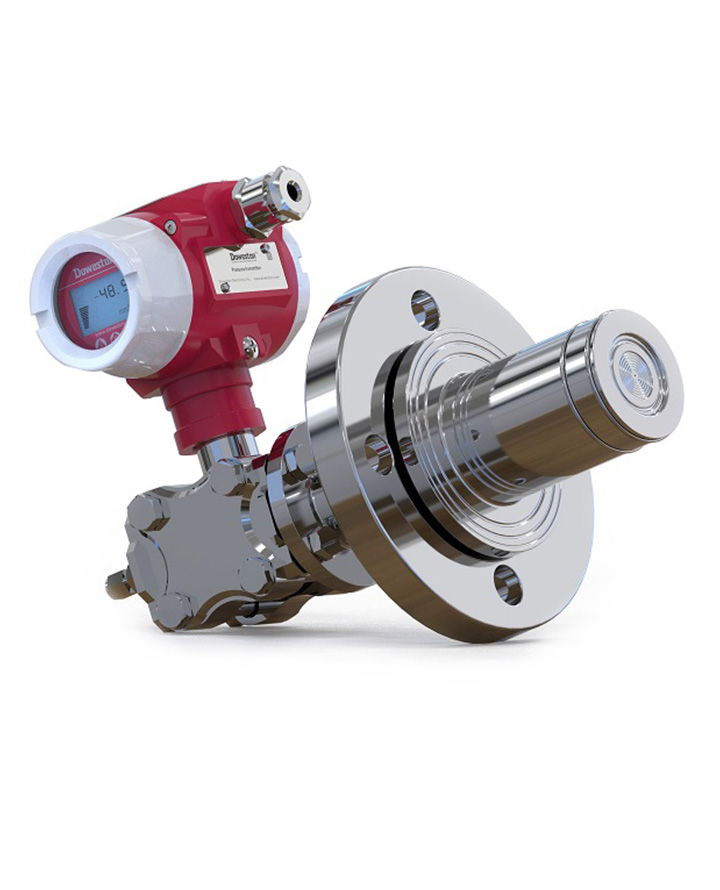

PD-750L Series
Single-Flange Pressure Transmitter

PD-750L single flange diaphragm remote pressure transmitterAn ultra-high-performance static pressure/differential pressure level gauge is carefully developed using advanced single-crystal silicon sensor packaging technology. The single-crystal silicon pressure sensor is located on the top of the metal body.Capillary connection, far away from the medium contact surface to achieve mechanical isolation and thermal isolation. It is a liquid level meter widely used in mechanical engineering and automatic control. It can be connected to meters, recorders, computers, PLC program controllers or alarms, etc.

■ The double-diaphragm overload structure can easily cope with high overload tests.

■ Diaphragm material: SS316L, Hastelloy C

■ The display module can be rotated 355°, and the key parameter operation function is friendly.

■ Precise liquid filling technology eliminates the influence of temperature and static pressure.

■ The rugged metal electrical housing withstands demanding environments.

■ Powerful transient voltage protection terminal module.

 Application Areas:

■ PD-750L single flange diaphragm remote pressure transmitterMainly used in differential pressure or liquid level measurement in distillation towers, chemical storage tanks, sulfate pulping vessels, enzyme fermentation, alkylation reactions, beer fermentation and other fields.
