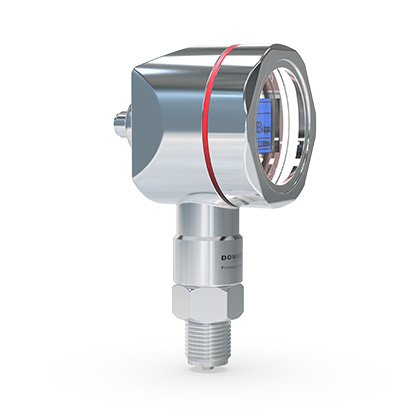

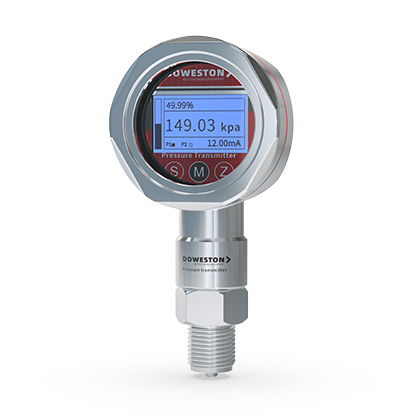

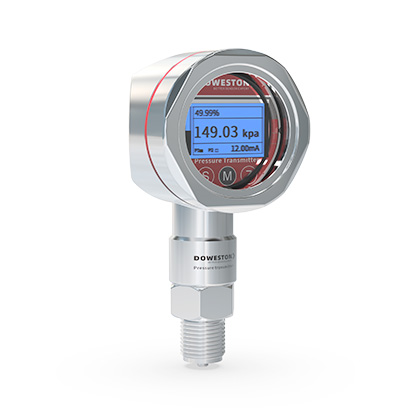

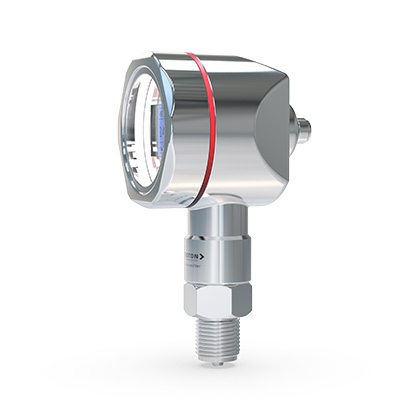

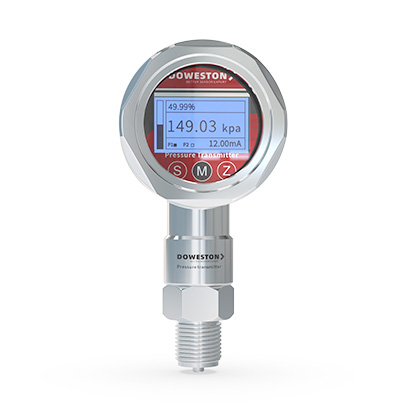

PD-310QS Series
Corrosion-Resistant Sanitary Pressure Transmitter

PD-310QS anti-corrosion hygienic pressure transmitterIt can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mA, Hart, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process regulation. It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries. It is also suitable for the Xu food hygiene industry.

■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid

■ measuring range:-0.1-100MPa

■ Comprehensive accuracy: ±0.075%FS

■ Diaphragm material: 316L stainless steel

■ operating temperature:-35-125℃

■ Output: 4-20 mA, RS-485, Hartetc.

■ Process connection: threaded, flanged

■ Warranty: Up to 3 years limited warranty

■ Electrical connection: aviation plug (IP65), waterproof gland (IP68)

■ SecretSeal: fluorine rubber
