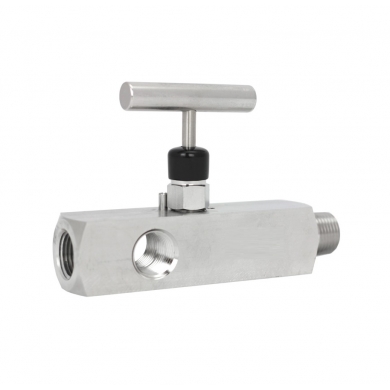

TVG-G4 Multi-Function Valve



Users can choose from a variety of bleeds, valves and plugs to get the desired setup.

• 3-1/2" FNPT instrument port

• Threads underneath FKM O-ring seal and PTFE gasket prevent corrosion and wear; soft seat comes standard with Delrin seat

• PTFE or Grafoil packing optional

• All stems are 316SS

• Vinyl dust cap (not packaged)

• Rolled thread strength, durability and ease of use

• All valves are helium leak tested for optimal performance

Valve body material: 316 stainless steel, galvanized carbon steel
Pressure level:Hard Seat - 10,000 psi at 200°F, Soft Seat - 6000 psi at 200°F.
Temperature Rating:Standard up to 200°F; Up to 1000°F
Orifice: 0.187"
flow:Hard seat CV: 0.44, soft seat CV: 0.76
Connection: 1/2" or 3/4"
