Home > Products > Level Measurement > Hydrostatic Level Meters > LPD-210D Series Corrosion-Resistant Submersible Level Transmitter
New

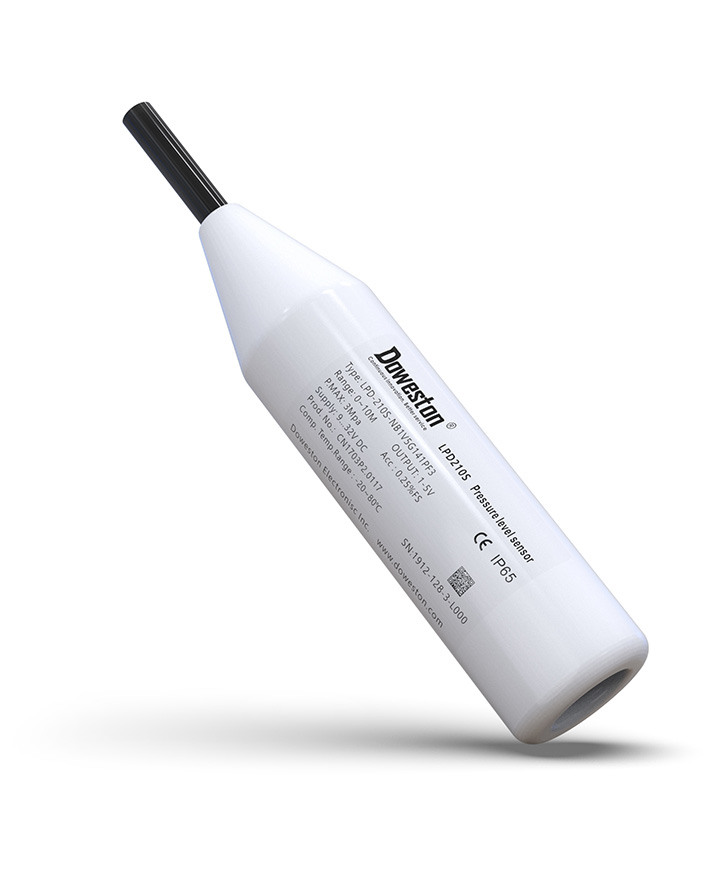

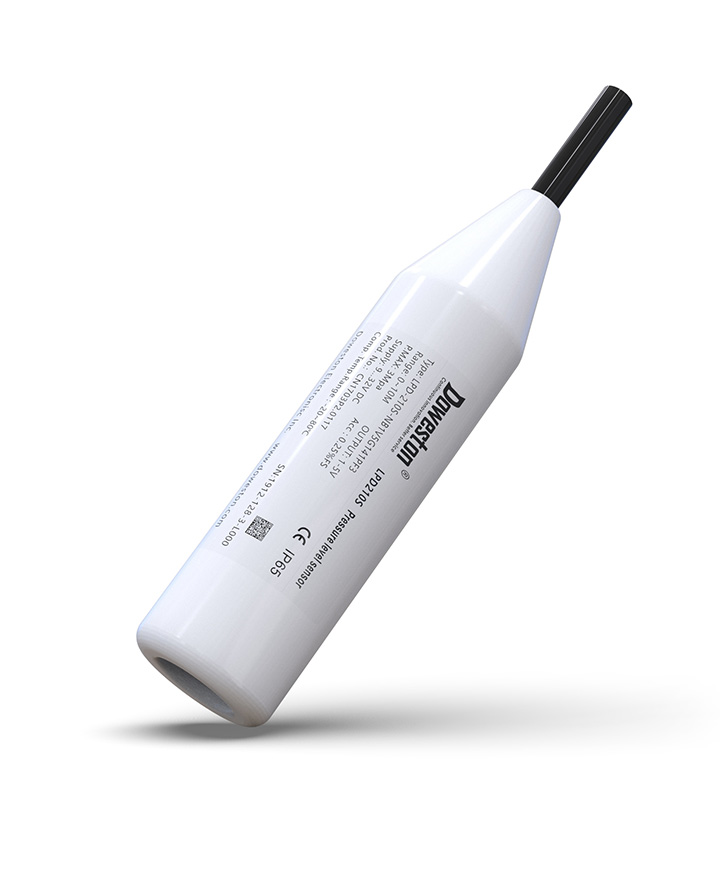

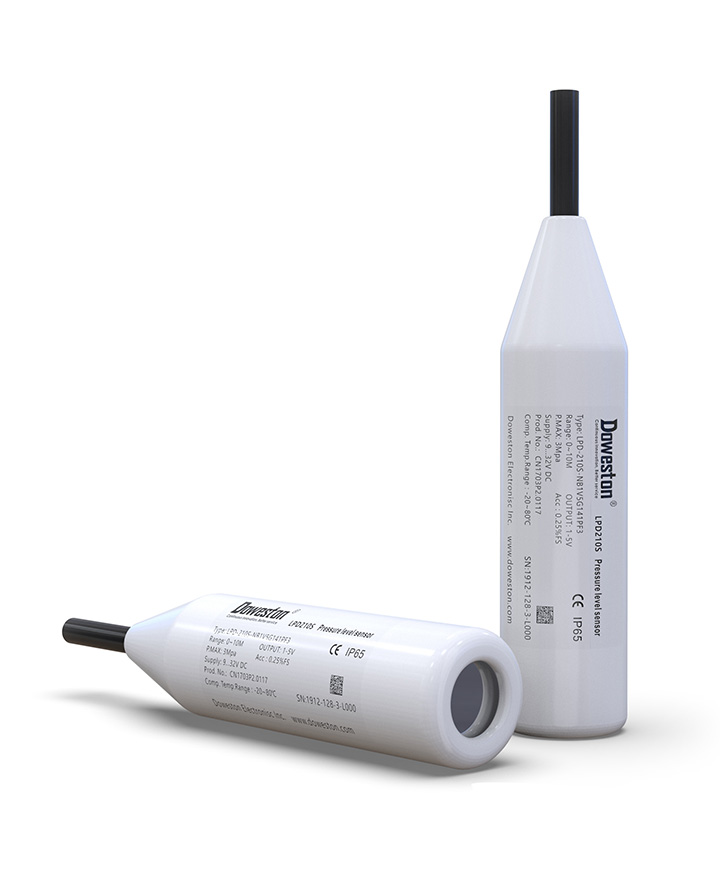

LPD-210D anti-corrosion input liquid level meter
StandardViscous, highly corrosive, fluid liquid containing scale and impuritiesLevel measurement
LPD-210D anti-corrosion input liquid level gauge isBased on the principle that the measured static pressure of a liquid is proportional to the height of the liquid, output after circuit processingAfter temperature compensation and linear correction, it is converted into a standard4-20mA or other different standardsElectrical signal.featuresWide measurement range, can be directly connected to controller (PLC/PC, etc.) with diversified information output, Comes with temperature compensation,Resistant to strong corrosion,Can meet most measurement needs.
| Compatible Media | Suitable for viscous, weakly acidic, weakly alkaline, fluid liquids containing scale or magnesium |
| Measuring Range | 0-5000mm |
| Overall Accuracy | ±0.25%FS,±0.1%FS,0.05%FSO BFSL optional |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/℃ |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, HART, RS-485, Modbus RTU |
| Operating Temperature | -40-125℃ |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80℃ |
| Response Time | <1 ms (10...90% FS) |
| Wetted Material | stainless steel 316L ( optionalCovered with PP, PTFE) |
| Cable material | Polyurethane, PTFE |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Direct outlet, terminal block |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | O-ring, laser-welded |
| Mounting Type | M20*1.5 8mm cable hole, G1-1/2 8mm cable hole, built-in cable fixing |
| Explosion-proof Class | ExdIICT6,NEPSI |
| Weight | approx. 0.5kg |
Application Areas:
■ LPD-210D anti-corrosion input liquid level meterSuitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.
