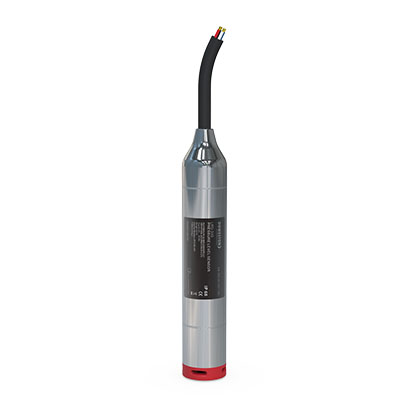

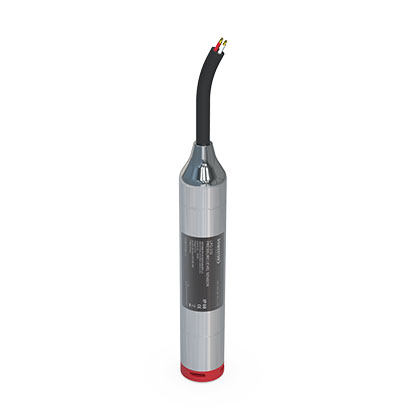

LPD-210B Series
Economy Submersible Level Transmitter

The LPD-210B economical input liquid level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. It uses foreign advanced isolated diffused silicon sensitive elements or ceramic capacitive pressure sensitive sensors to convert the static pressure into electrical signals, and then through temperature Level compensation and linear correction are converted into standard electrical signals (generally 4~20mA/1~5VDC). It is a liquid level meter widely used in mechanical engineering and automated control. It can be connected to meters, recorders, computers, PLC program controllers or alarms, etc.

■ measuring range:0-200m

■ Comprehensive accuracy: ±0.1%FS

■ Probe material: stainless steel (optional coating of PP, PTFE)

■ Operating temperature: -40 to 125°C

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20mA, Hart, RS485, etc.

■ Process connection: M20*1.5 8mm cable hole, built-in cable fixation

■ Protection level: electrical part IP65 (optional IP68)

■ Explosion protection: ExdIICT6, NEPSI

■ Service life:>1*10^8 pressure cycle
