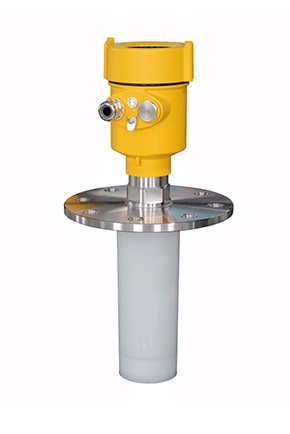

LRT-1902T Anti-Crystallization Radar Level Transmitter

● Will be heatedLevel instrument, Low temperature resistance, Self heating,NoFreeze, Anti-crystallization.
● Almost unaffected by corrosion and foam; almost unaffected by water vapor, temperature and pressure changes in the atmosphere.
● Serious dust environment has little impact on the operation of high-frequency level meters.
● The wavelength is shorter and reflects better on tilted solid surfaces.
● The beam angle is small and the energy is concentrated, which enhances the echo capability and helps avoid interference.
● The measurement blind area is smaller, and good results can be achieved for small tank measurements.
● High signal-to-noise ratio for better performance even under fluctuating conditions.
● High frequency, it is the best choice for measuring solids and low dielectric constant media.

Applications:

● Secondary water supply pipe network,

● Large water users,

● Zone metering,

● Pipe network leakage monitoring

● Monitoring and measuring of water quantity

Specifications PRODUCT SPECIFICATION

Application: temperature-resistant, pressure-resistant, slightly corrosive liquids
Measuring range: 20 meters
Process connection: threaded, flanged
Process temperature: -40 to 130°C (standard) / -40 to 250°C (high-temperature)
process pressure: -0.1~2.0MPa
Accuracy: ±3 mm
Ingress protection: IP67
Frequency range: 26 GHz
Power: 2-wire (24 V DC) / 4-wire (24 V DC / 220 V AC)
Explosion protection: Exia IIIC T6 Ga / Exd IIC T6 Gb
Housing: aluminum single chamber / aluminum dual chamber / plastic / stainless steel single chamber
Signal output: 4-20 mA/HART (2-wire/4-wire) / RS-485 Modbus

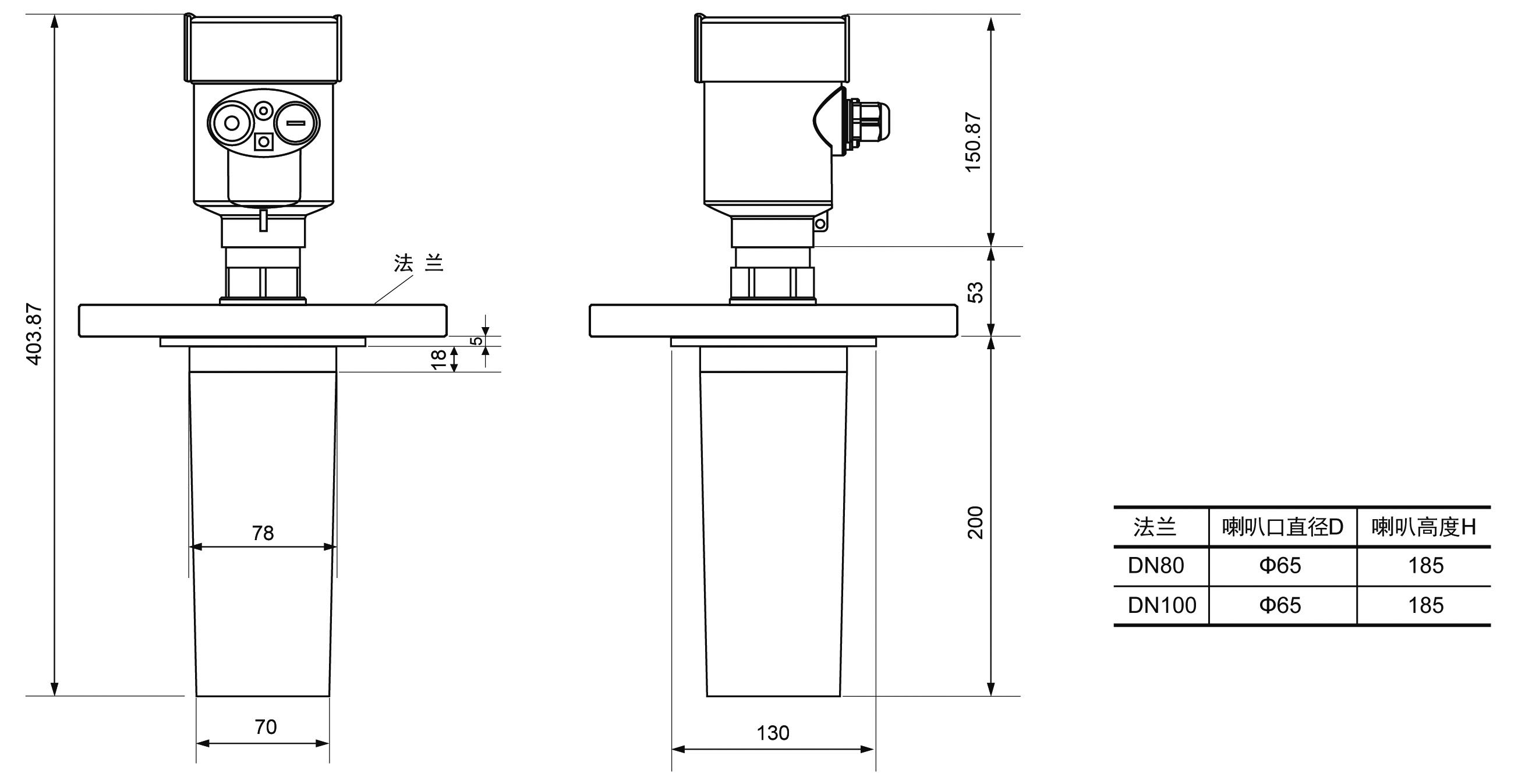

Appearance size APPEARANCE OF SIZE
