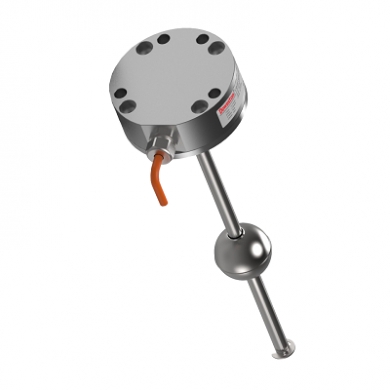

LKS-100 Integral-Flange Magnetostrictive Level Transmitter

The LKS-100 flange integrated magnetostrictive liquid level meter electronic compartment comes with its own mounting flange. It has a compact structure and is easy to install. It is suitable for tight installation space situations and can be installed in common liquid tanks and measuring equipment. The sensor can be used with 4 M8 screws. Directly installed on the tank mouth flange; vertical installation is adopted, and the installation inclination should be less than 5 degrees; liquid level floats of various specifications are available. The hemisphere marked by the float should be above the liquid level, and there are measurement dead zones at both ends of the measuring rod; when the locking ring is fixed, the lower end and the bottom of the rod should be flush.
