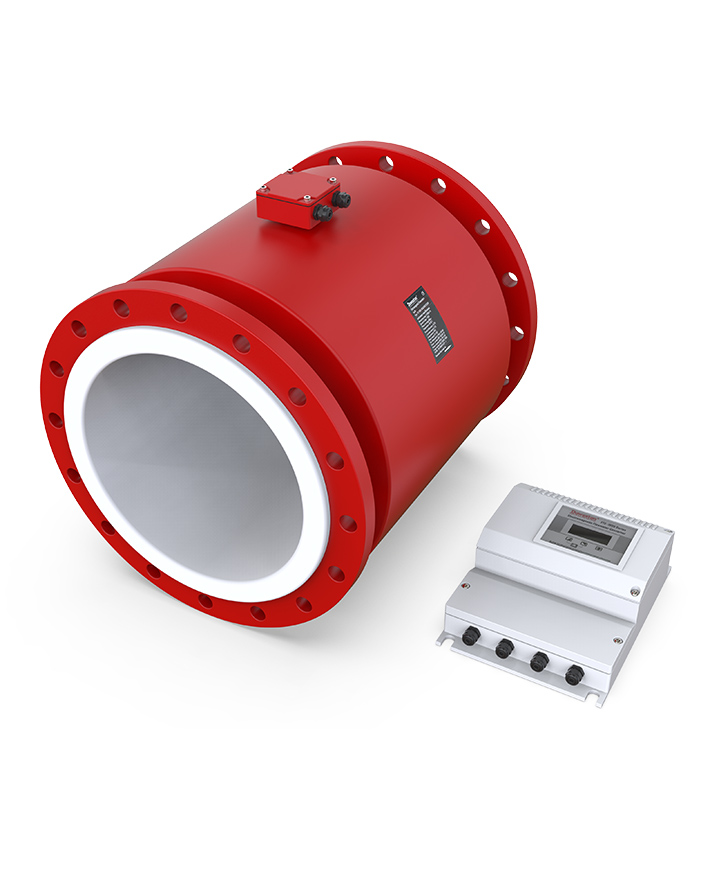

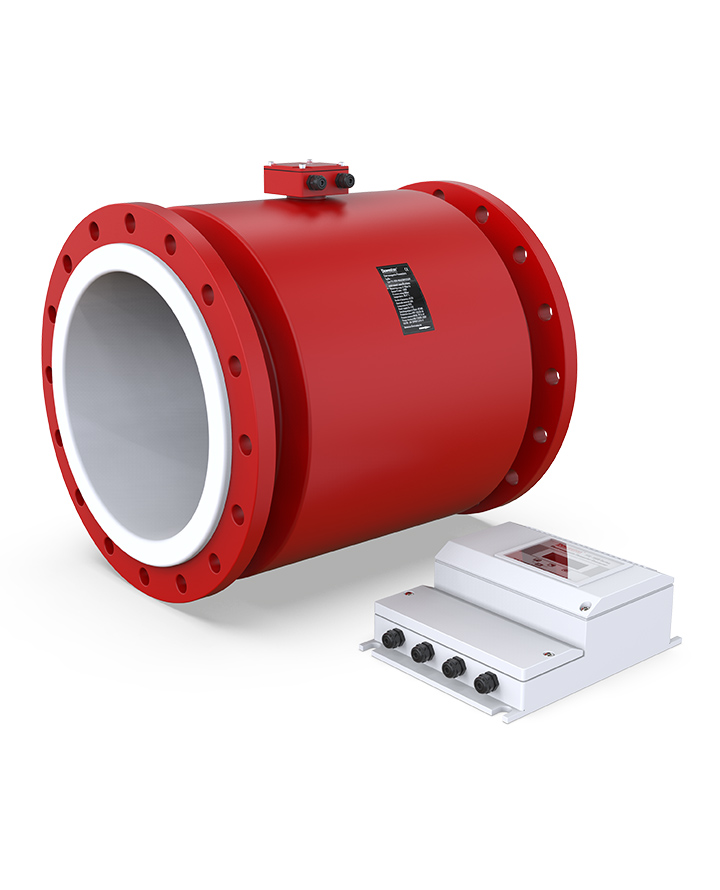

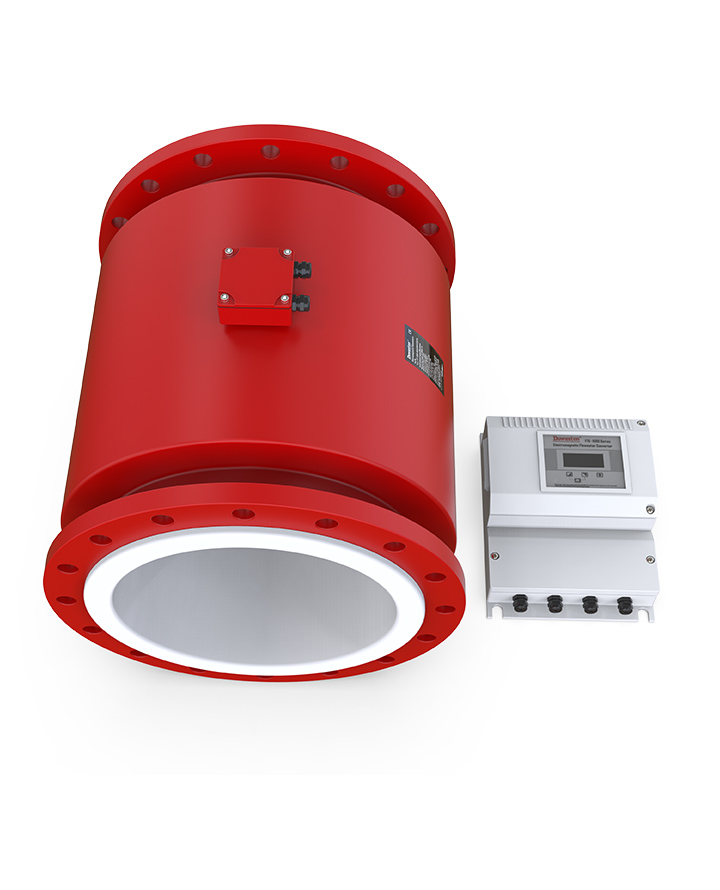

FTE-1600F Series
Split Electromagnetic Flow Meter

FTE-1600F series split electromagnetic flow meter is an instrument that measures the volume flow of conductive liquid based on the working principle of Faraday's law of electromagnetic induction. It is a product of the combination of fluid mechanics and electromagnetism. We have updated the FTE-1600 electromagnetic flow meter. New breakthroughs have been made in both the appearance and assembly methods, as well as the internal structure: an angular appearance and a rationalized structure with better magnetic field distribution. At the same time, a zinc spray process has been introduced, which can protect the pipe surface of the electromagnetic flow meter for a long time even in harsh environments, and has excellent surface anti-corrosion performance.

■ Small flow rate and high accuracy, the lower limit can reach 0.03m/s;

■ The sensor housing is all made of precision aluminum molds. The product is beautiful, has strong appearance consistency, close fit, no welding in the whole, fast assembly and disassembly, and easy maintenance;

■ Thickened lining and curved electrodes have good corrosion resistance and wear resistance, and are more adaptable to mixed media;

■There are no flow-blocking parts in the measuring pipe, no pressure loss, and low requirements for straight pipe sections. Unique adaptability to serological measurement;

■ Using a 16-bit embedded microprocessor, it has fast computing speed, high precision, and programmable frequency low-frequency rectangular wave magnet, which improves the stability of flow measurement and has low power consumption;

■ Using SMD devices and surface mount (SMT) technology, the circuit has high reliability;

■ The measuring range can be modified online according to the actual needs of the user on site to better match the collection terminal;

■The measurement results have nothing to do with physical parameters such as fluid pressure, temperature, density, viscosity, etc.;

■ With RS485, RS232, Hart, Modbus, Profibus-DP and other digital communication signal outputs (optional);

■ It has self-check, self-diagnosis and alarm functions;

■ Ultra-low EMI switching power supply, suitable for a wide range of power supply voltage changes, and good anti-EMI performance.
