Home > Products > Flow Measurement > Coriolis Mass Flow Meter > FTM-1660Q Sanitary Coriolis Mass Flow Meter
New

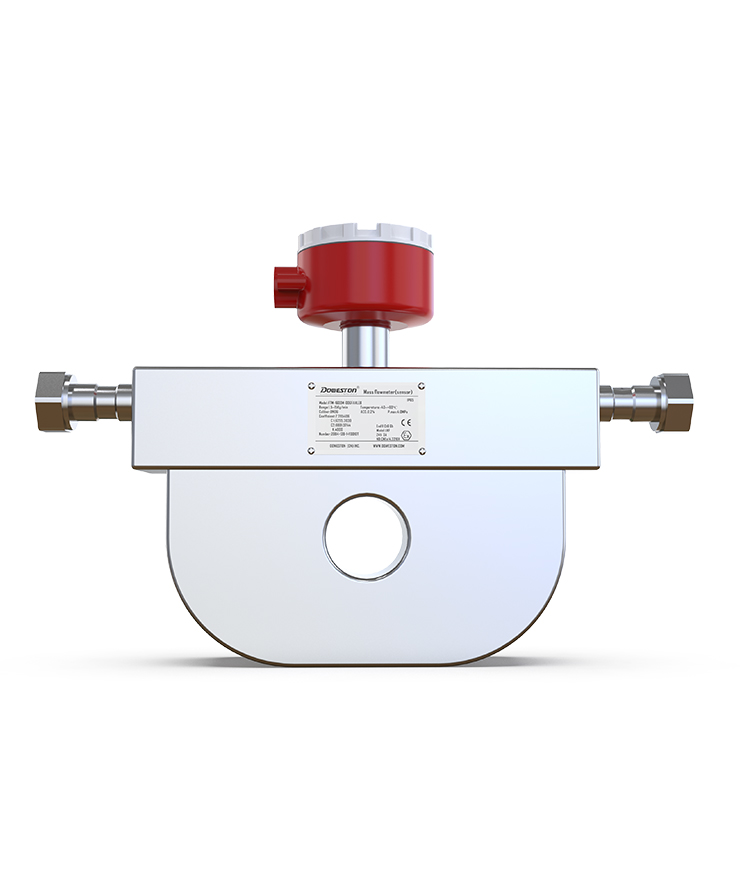

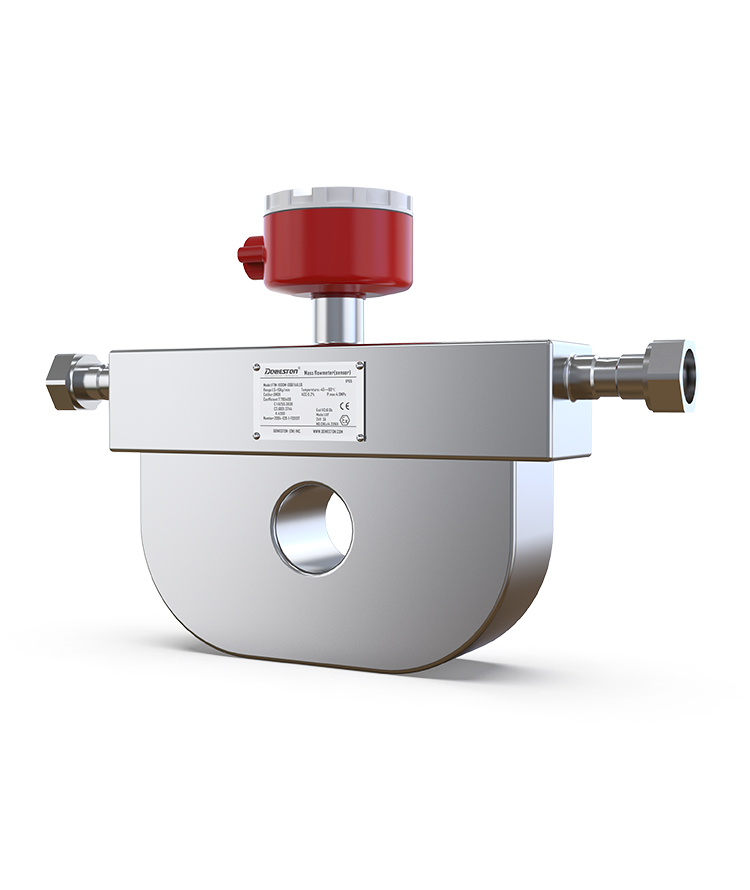

FTM-1660Q series hygienic Coriolis mass meter
Food, pharmaceutical, brewing and other industrieshigh accuracy accuracy metering
FTM-1660Q series hygienic Coriolis mass meterIt adopts new hygienic lining materials and lining technology, which meets the hygienic requirements of the food industry. It also adopts stainless steel clamp connection to facilitate the installation of the flow meter.Quick disassembly and cleaning, making the flow meter less likely to be contaminated during use, and can effectively prevent the accumulation of measurement fluid residues in the measurement tube, and can be widely used inMineral water, soy sauce, jam, beer, juice, rice wine, milk and other foods and pharmaceuticalsHygienic field of production and manufacturing processes.
FTM-1660Q series hygienic typeThe mass flow meter uses the Coriolis force effect to directly measure the mass flow of the medium passing through the flow meter. On this basis, it is specially designed and developed for the food and pharmaceutical industry. Its installation method, inner village material, surface roughness, etc. are improved to meet the requirements of the food hygiene industry. It can be used to measure its mass flow, volume flow, density, etc., chuck installation, explosion-proof disassembly and assembly, and cleaning.
■ Extremely high measurement accuracy (0.2%~0.1%) and good low temperature resistance
■ Directly measure the mass flow rate and fluid density of the fluid in the pipeline
■Wide range of applications (can measure various non-Newtonian fluids, various slurries, suspensions, high-viscosity fluids, etc.)
■ Low installation requirements (the requirements for the front and rear straight pipe sections of the instrument are not high)
■ There are no moving parts inside the flow meter pipeline, which ensures reliable and stable operation and low maintenance rate.
■ Surface roughness Ra≤0.4μm
Applications:
■ Fine chemical industry
■ Food and pharmaceutical industry
■ Metallurgical industry
■ Oil and gas industry
■ high accuracy metering
| Measuring Range | 3-65000 kg/h, 0.11-2390 lb/min, 3-63500 L/h |
| Compatible Media | Mineral water, soy sauce, jam, beer, juice, rice wine, milk, minor additives... |
| Nominal Diameter | DN1.5-200 |
| Measuring Range | 0.25-10m/s |
| Zero stability | 0.015%FS |
| Zero drift | 0.0015%FS.PER℃ |
| Repeatability Error | ±0.15% of measured value |
| Accuracy Class | 0.1% FS, 0.15% FS, 0.25% FS, 0.5% FS, |
| Density measuring range | 0-4500kg/m³ |
| Density measurement accuracy | ±0.002kg/ltr |
| Temperature measurement accuracy | ±0.5% of reading ±1°C |
| Operating Temperature | -196~-100°C (ultra-low temperature), -100~0°C (low temperature) |
| Working Pressure | 1.0-35MPa |
| Housing Material | Stainless steel DIN 1.4301, cast aluminum alloy |
| Pipe material | Stainless steel DIN 1.4404 |
| Wetted Material | 304, 316L, Hastelloy, titanium alloy, 316L silicone |
| Display | Graphic, 132×32 dots |
| Signal Output | 4-20 mA, pulse/frequency (0.5-10000 Hz), push-pull output, programmable, |
| Communication output | RS-485, Modbus protocol, HART output |
| Power Supply | 220 V AC ±15% or 24 V DC, ripple ≤5% |
| Electrical Connection | Clamp-type terminal block |
| Connection Type | Sanitary chuck (others can be customized) |
| Protection Rating | IP65 (IP67 optional) |
| Ambient Temperature | -35 to +70°C |
| Relative Humidity | 5%–95% |
| Total power consumption | Less than 15 W |
