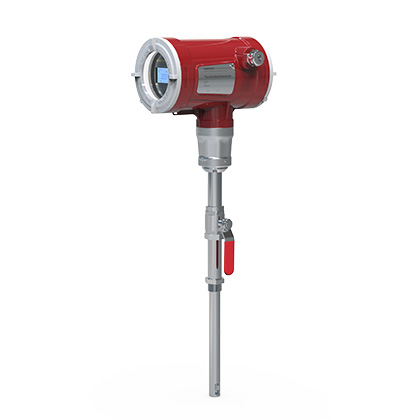

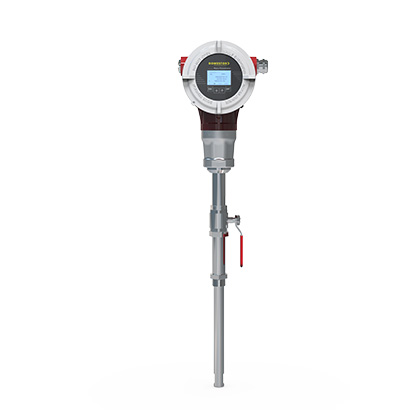

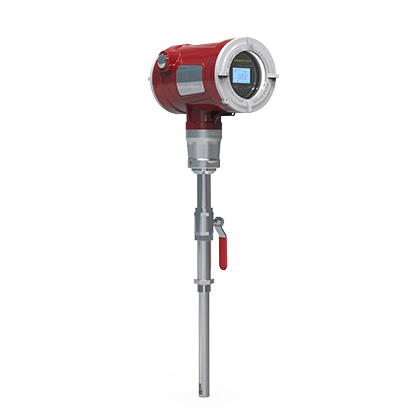

FTW-1600T Series
Insertion Thermal Mass Flow Meter

FTW-1600T insertion type thermal mass flow meterBased onA flow meter designed based on the principle of thermal diffusion. That is, when a fluid flows through a heating object, the amount of heat lost by the heating object is proportional to the flow rate of the fluid. The sensor of this series of flow meters has two standard RTDs, one used as a heat source and one used to measure the fluid temperature. When the fluid flows, the temperature difference between the two has a linear relationship with the flow rate. This relationship is then converted into a linear output of the measured flow signal through microelectronic control technology.

■ Corrosion-resistant all-stainless construction, ABS injection-molded probe, simple structure

■ Easy installation, simple maintenance, two-way detection, anti-vibration

■ Simultaneous detection of flow rate and temperature, switching display

■ Large diameter and small flow measurement, can be used for leak detection

■ Direct mass flow detection without temperature and pressure compensation

■ Using SMD devices and surface mount (SMT) technology, the circuit has high reliability;

■ The measuring range can be modified online according to the user's actual needs on site to better match the collection terminal;

■ Using RS-485 communication or HART communication, factory automation and integration can be realized

■ Self-test, self-diagnosis and alarm functions;

■ Low EMI switching power supply, suitable for a wide range of power supply voltage changes, and good anti-EMI performance.
