Home > Products > Flow Measurement > Gas Mass Flow Meters & Controllers > FTWM-1700 Series Micro-Flow Gas Mass Flow Meter
New

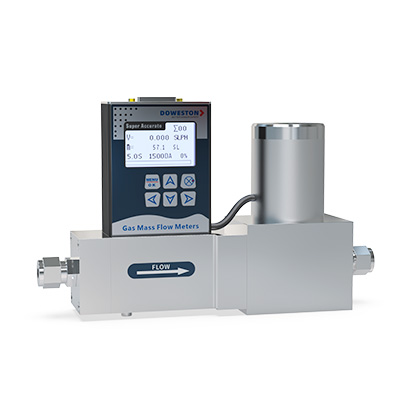

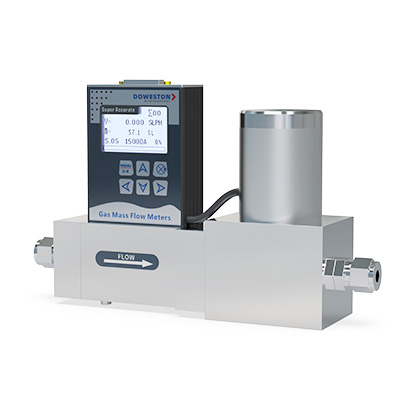

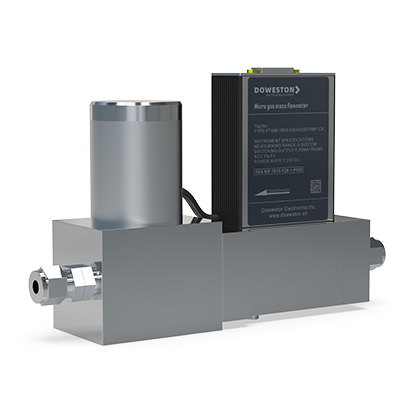

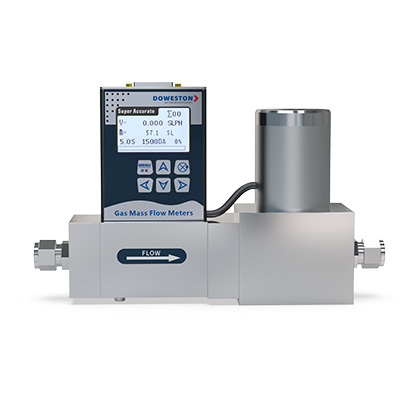

FTWM-1700 series micro gas flow meter
designed for pipe diameters of 1-8 mm
Designed for medium and low speed flow measurement in liquid pipelines
LimitsmallRange3ml/min, with excellent performance in low flow rate and slow flow conditions, it is the first choice for flow measurement in laboratories, testing and other places.
● Maximum measurable flow rate100%F.S (controllable),
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● Multi-variable measurement and a 50:1 range adjustability ratio can equal the effectiveness of multiple devices
| Sensor | |||
| Path | small 1mm, large 8mm | ||
| Maximum measurable flow rate | 100%F.S (controllable) | ||
| Range adjustable ratio | 50:1 | ||
| Accuracy | ±1%F.S | ||
| Repeatability | ±1%F.S | ||
| Zero output drift | 0.02%F.S/℃/Atm | ||
| Scope of work | 2%~100%F.S | ||
| Response Time | 200 milliseconds (adjustable) | ||
| Operating power | 20 ~ 30Vdc,50mA | ||
| Output type | RS485, RS232 | ||
