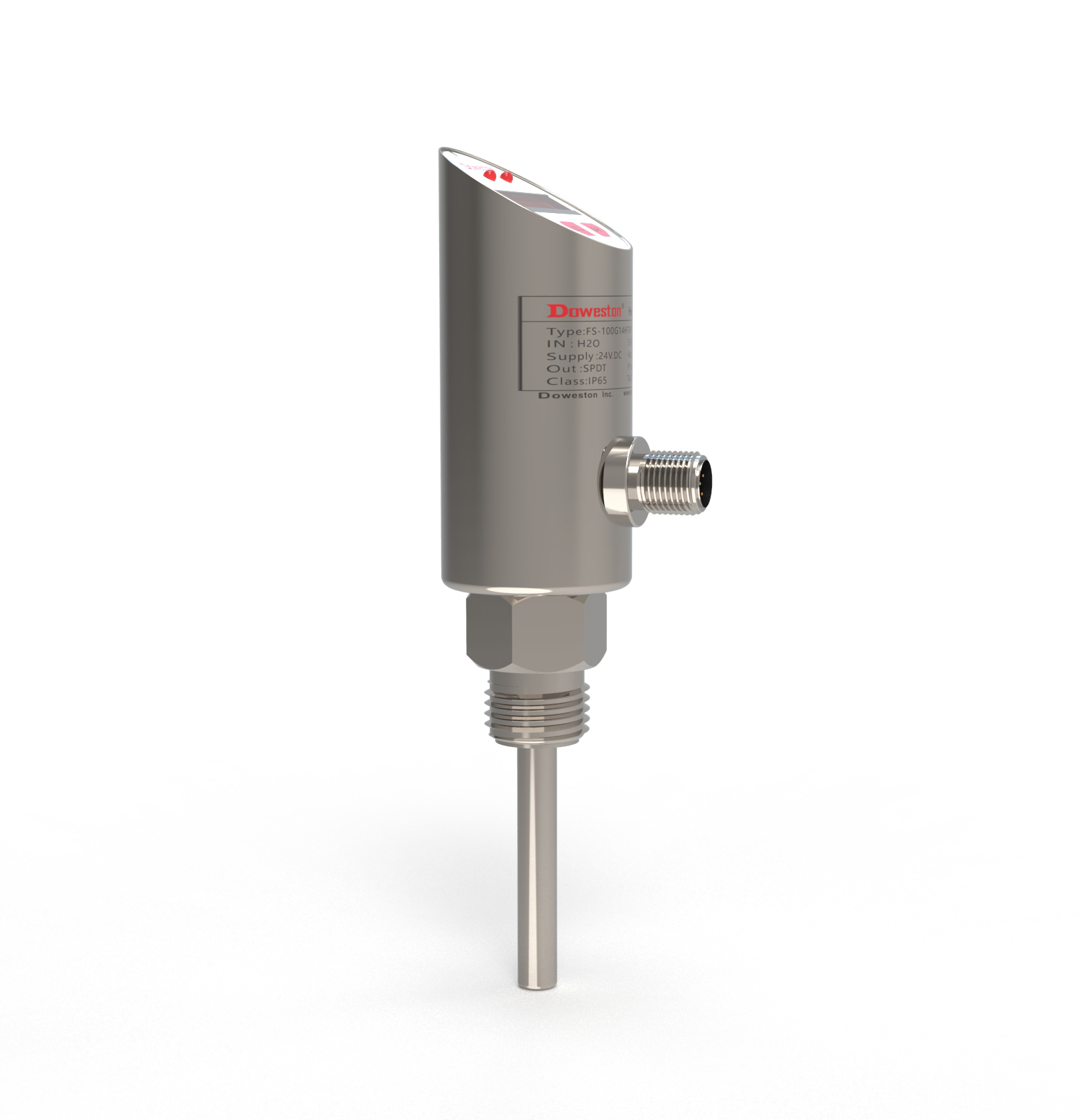

TA-130 Series
Multifunction Temperature Transmitter

 Principle:
■  TA-130 multifunctional temperature transmitterIt is composed of reference unit, R/V conversion unit, linear circuit, reverse connection protection, current limiting protection, V/I conversion unit, etc. After the temperature measurement thermal resistance signal is converted and amplified, the nonlinear relationship between temperature and resistance is compensated by a linear circuit. After passing through the V/I conversion circuit, a 4-20mA constant current signal that is linearly related to the measured temperature is output. Thermal resistance transmitter is a type of temperature detector commonly used in medium and low temperature areas..

 Features:
■  Local display, convenient for observation
■  Flexible sheathed cable with anti-vibration measuring insert
■  Protecting tube diameter (from 3.0 mm)
■  Application-specific insertion length

■  Compact structure, few moving parts, all stainless steel shell

■ Good mechanical strength, vibration and shock resistant

■  Compact with no internal air gap

■ low thermal inertia with minimal measurement lag

■ Long service life

 Application Areas:

■ TA-130 multifunctional temperature transmitterIt is suitable for water treatment control equipment, electrical industry, ship hydraulic equipment, hydraulic and hydropower, chemical industry, petrochemical industry equipment and hot coal boilers, pneumatic, hydraulic, cooling system, heating system, automation engineering, etc.; the product is suitable for temperature detectors in medium and low temperature areas.
