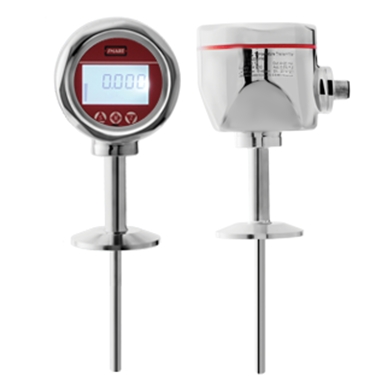

TA-300Q Series
Sanitary Smart Temperature Transmitter

 Principle:
■  TA-300Q hygienic type intelligent temperature transmitterIt is composed of reference unit, R/V conversion unit, linear circuit, reverse connection protection, current limiting protection, V/I conversion unit, etc. After the temperature measurement thermal resistance signal is converted and amplified, the nonlinear relationship between temperature and resistance is compensated by a linear circuit. After passing through the V/I conversion circuit, a 4-20mA constant current signal that is linearly related to the measured temperature is output. Thermal resistance transmitter is a temperature detector commonly used in medium and low temperature areas.

 Features:
■  For temperatures from -40 to +350°C
■  Flexible sheathed cable with anti-vibration measuring insert
■  It adopts stainless steel shell and its surface roughness meets the hygiene grade requirements of the food industry.
■  Surface roughness Ra≤0.4μm

■  Chuck connection for easy installation and cleaning

■ Good mechanical strength, vibration and shock resistant

■  Compact with no internal air gap

■ low thermal inertia with minimal measurement lag

■ Long service life

 Application Areas:

■ TA-300Q hygienic type intelligent temperature transmitterOften used to measure food, beverages, pharmaceuticals, brewingThe temperature of gas or liquid in equipment, pipelines and the surface temperature of solids.
