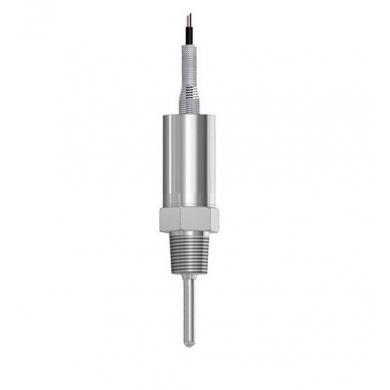

TA-100C Series
Mini Temperature Transmitter

 Principle:
■  TA-100C small temperature transmitterIt is composed of reference unit, R/V conversion unit, linear circuit, reverse connection protection, current limiting protection, V/I conversion unit, etc. After the temperature measurement thermal resistance signal is converted and amplified, the nonlinear relationship between temperature and resistance is compensated by a linear circuit. After passing through the V/I conversion circuit, a 4-20mA constant current signal that is linearly related to the measured temperature is output. Thermal resistance transmitter is a type of temperature detector commonly used in medium and low temperature areas..

 Features:
■  Requires small installation space

■  Flexible sheathed cable with anti-vibration measuring insert
■  High vibration and shock resistance

■  Sealed to NEMA 7, IP67

■  Compact structure, few moving parts, all stainless steel shell

■ Fully welded 316SS construction

■  Compact with no internal air gap

■ 4-20mA linear two-wire output

■ Various process connections and electrical terminals

 Application Areas:

■ TA-100C small temperature transmitterIt is suitable for water treatment control equipment, electrical industry, ship hydraulic equipment, hydraulic and hydropower, chemical industry, petrochemical industry equipment and thermal coal boilers, pneumatic, hydraulic, cooling system, heating system mechanical equipment, etc.; the product is suitable for temperature detectors in medium and low temperature areas.
