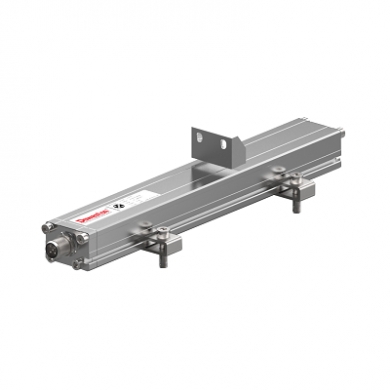

Home > Products > Level Measurement > Magnetostrictive Sensors & Level Meters > CLN-100 CNC Economy Magnetostrictive Displacement Sensor
CLN-100 CNC economical magnetostrictive displacement sensor is suitable for external installation of linear displacement measurement.
The CLN-100 CNC economical magnetostrictive displacement sensor has a height of only 27mm when fully installed, making it very suitable for applications with high installation space requirements.
The output signal of CLN-100 CNC economical magnetostrictive displacement sensor is a voltage of 0~10V. It is generally used in various CNC processing machine tools, such as stamping machinery, building materials machinery, wood processing machinery, etc.
| Analog output |
Project name | Specifications / Parameters |
Measuring Range | 50-2000mm |
Output Signal | 0~10VDC |
Resolution | 12-bit D/A |
Nonlinearity | <0.02%F.S. |
Repeatability | <0.002%F.S. |
Response frequency | Range dependent |
Operating Voltage | 24VDC (-15/+20%) |
Operating Temperature | -40°C to +85°C |
Protection capability | IP65 |
Mounting Type | External installation, fixed clip, M5X20 special screws |
