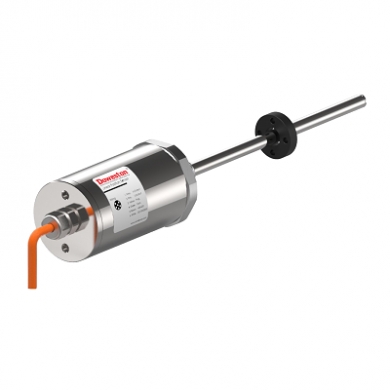

WHW-100 Marine Waterproof Magnetostrictive Displacement Sensor

WHW-100 marine waterproof magnetostrictive displacement sensor is a marine magnetostrictive ...
  • Factory Direct
    Chengdu production base, every unit calibrated before shipping
  • Fast Delivery
    Standard models in stock, custom builds on schedule
  • Technical Support
    Selection guidance / installation and commissioning / after-sales support
Brand: DOWESTONWarranty: 12 monthsOEM / customization supported

Product Overview

OVERVIEW

WHW-100 marine waterproof magnetostrictive displacement sensor is a marine magnetostrictive displacement sensor. It adopts an all-stainless steel shell and a special waterproof structure. It is specially designed for offshore equipment.
WHW-100 sea-mounted waterproof magnetostrictive displacement sensor has highly reliable protection capabilities, super anti-interference ability, never wears out, remains on power-off, high resolution, high precision, and high response.
The optional output signals of the WHW-100 marine waterproof magnetostrictive displacement sensor include: analog, SSI, Start/Stop, etc. Mainly used in offshore engineering equipment, offshore oil drilling platforms, offshore wind power, metallurgy, nuclear power and other fields.





Features

FEATURES





Analog output

SSI output

Project name

Specifications / Parameters

Specifications / Parameters

Measuring Range

25-7600mm

25-7600mm

Output Signal

 0~20mA,4~20mA; 0~10V,-10~+10V

 24, 25, 26-bit binary or Gray code

Resolution

16-bit D/A

0.5/ 1/ 2/ 5/ 10/ 20/ 50/ 100um

Nonlinearity

<0.01%F.S.(50μm)

<0.01%F.S.(40μm)

Repeatability

 <0.001%F.S.(1μm)

<0.001%F.S.(1 reading)

Response frequency

 Range dependent

Range dependent

Operating Voltage

24VDC  (-15/+20%)

Operating Temperature

-40°C to +85°C

Protection capability

IP69K, measuring rod pressure resistance: 35MPa continuous/70MPa peak

Mounting Type

Threaded installation, M18X1.5 or customized


Specifications

SPECIFICATIONS

Downloads

DOWNLOADS
  • Brochures
  • User Manuals
  • Drawings and Software
  • PDF

    Magnetostrictive Displacement Sensor Brochure

    Chinese pdf 2022/04/14
