Home > Products > Level Measurement > Magnetostrictive Sensors & Level Meters > LDW-100 Waterproof Split Magnetostrictive Displacement Sensor
The LDW-100 waterproof split magnetostrictive displacement sensor adopts an innovative special split structure and is designed for extremely small installation space.

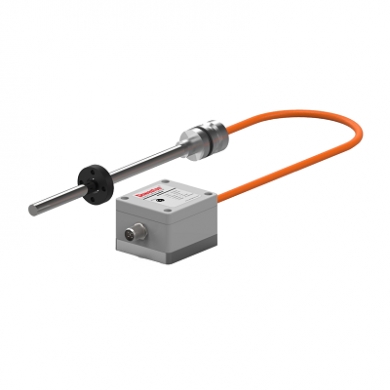

The measuring rod and electronic compartment of the LDW-100 waterproof split magnetostrictive displacement sensor can be connected using either an integrated straight-out cable (strong system protection capability) or dual aviation plugs (easy to install and replace on site).
LDW-100 waterproof split magnetostrictive displacement sensor is widely used in high-demand fields such as wind power generation, engineering machinery, high-speed railways, and rail transit.
| Analog output | Start/Stop output |
Project name | Specifications / Parameters | Specifications / Parameters |
Measuring Range | 50-5000mm | 50-5000mm |
Output Signal | 0~20mA,4~20mA,; 0~10V,-10~+10V | RSS 422 Differential Signaling |
Resolution | 16-bit D/A | 0.1mm/0.01mm |
Nonlinearity | <±0.02%F.S. | <±0.02%F.S. |
Repeatability | <±0.001%F.S. | <±0.001%F.S. |
Response frequency | 1kHz | Depends on the controller |
Operating Voltage | 24VDC (-15/+20%) | |
Operating Temperature | -40°C to +75°C | |
Protection capability | Electronic head part: IP67, measuring rod part: IP69, measuring rod pressure resistance: 35MPa continuous/70MPa peak | |
Mounting Type | Electronic head part: 4 M6X45 screws, measuring rod: M18X1.5 standard or tight seal | |
