Home > Products > Level Measurement > Magnetostrictive Sensors & Level Meters > KBI-100 Built-In High-Resolution Displacement Sensor

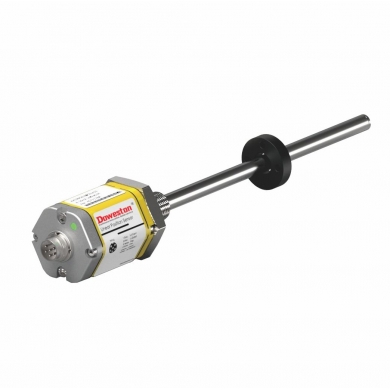

KBI-100 series pressure-resistant round tube magnetostrictive displacement sensor is suitable for built-in installation in hydraulic cylinders. It has strong anti-interference ability, good environmental tolerance, high resolution, high precision, high response and easy replacement.
It is widely used in metallurgy (continuous casting, continuous rolling), petrochemical, port machinery, testing machines, water conservancy and hydropower and other fields.
| Optional interface | |||
| Optional interface | Analog | SSI | Start/stop |
| Output Signal | 4~20mA; | 25, 24, 26 | Pulse signal |
| 0~10V, etc. | Binary/Gray | ||
| Optional interface | Profibus | CAN basic | CAN open |
| Output Signal | Profibus bus protocol | CAN - basic protocol | CAN - open protocol |
| Common parameters | |||
| Mounting Type | Built-in installation of oil cylinder, M18x1.5 metric thread or customized thread | ||
| Protection capability | Electronic compartment: IP67, Measuring rod: 35MPa continuous/70MPa peak | ||
| Operating Temperature | start/stop interface products: -40°C to +105°C; other interface products: -40°C to +85°C | ||
| Operating Voltage | 24VDC (-15/+20%), overvoltage protection, reverse polarity protection | ||
| Optional magnetic ring | OD33 (Screw installation); OD25.4 (Snap ring installation); OD17.4 (Snap ring installation) | ||
