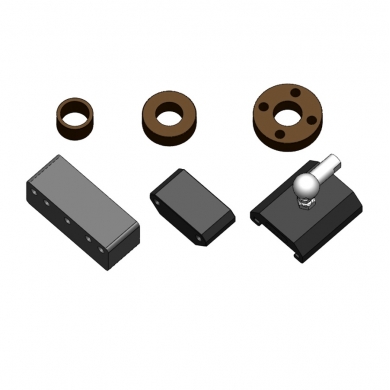

Optional Accessories - Magnetic Rings & Floats - Product Detail 1 - DOWESTON

Optional Accessories - Magnetic Rings & Floats

  • Factory Direct
    Chengdu production base, every unit calibrated before shipping
  • Fast Delivery
    Standard models in stock, custom builds on schedule
  • Technical Support
    Selection guidance / installation and commissioning / after-sales support
Get a Quote and Selection Advice Download Technical Documents
Brand: DOWESTONWarranty: 12 monthsOEM / customization supported

Product Overview

OVERVIEW





Features

FEATURES
Attachment nameOverall DimensionsApplications

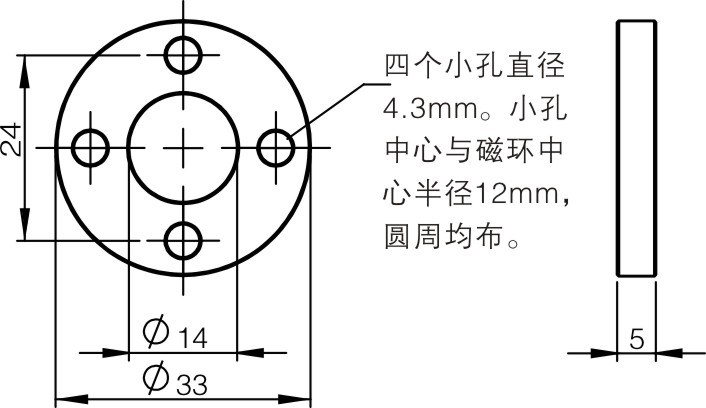

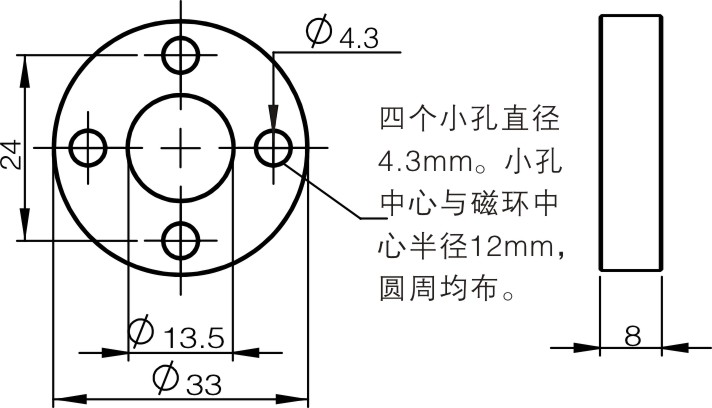

Ring magnet: OD33



Scope of application: RH, RF, RD

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Preload torque: upper limit 1N - m

 Magnetic isolation gasket: OD33


Scope of application: RH, RF, RD

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Preload torque: upper limit 1N - m

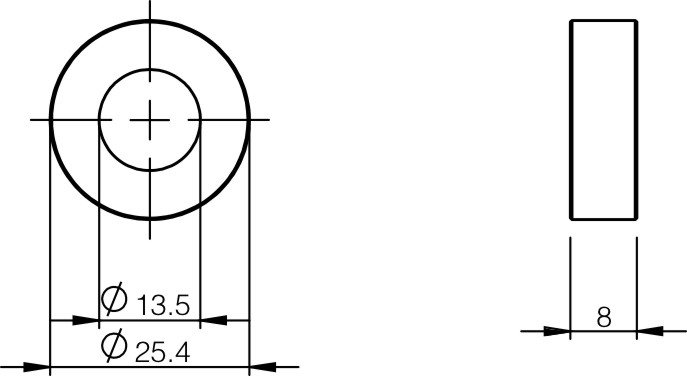

 Ring magnet: OD25.4



Scope of application: RH, RF, RD

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Preload torque: upper limit 1N - m

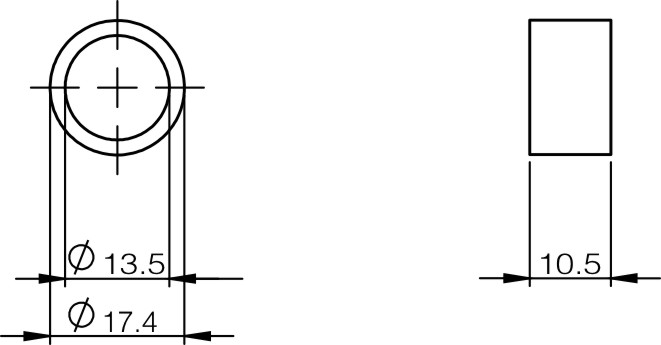

 Ring magnet: OD17.4



Scope of application: RH, RD

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Preload torque: upper limit 1N - m

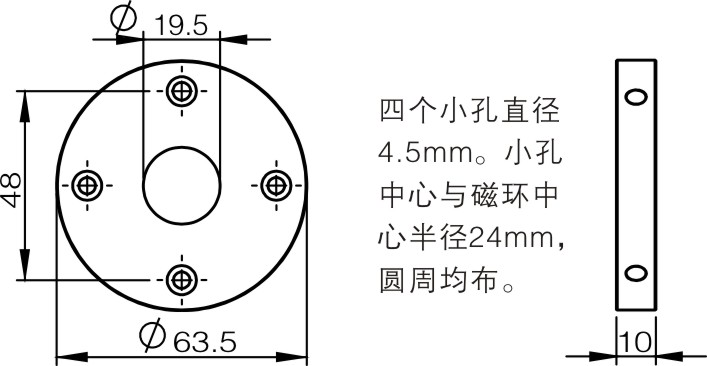

 Ring magnet: OD63.5


Scope of application: RH, RF, RD

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Preload torque: upper limit 1N - m

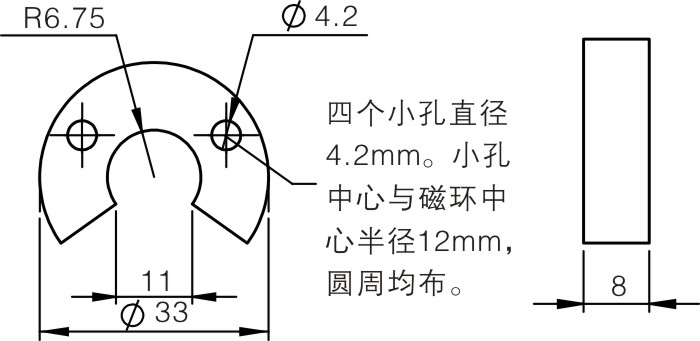

 C type semicircle magnet



Scope of application: RP

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Vertical distance: 3±1


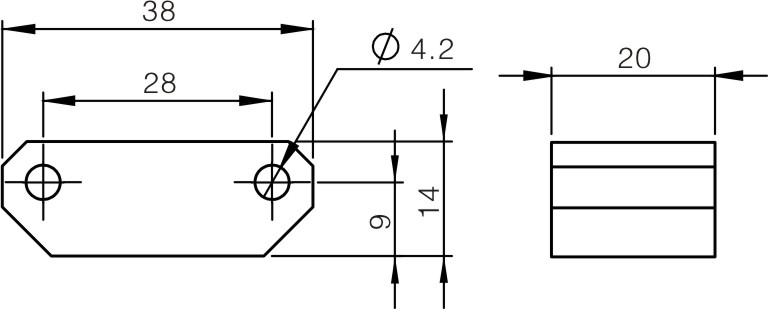

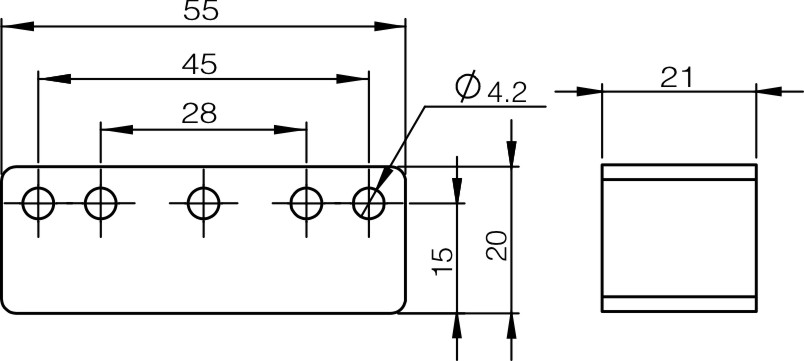

K type floating magnet



Scope of application: RP, CL

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Horizontal deviation: ±3mm

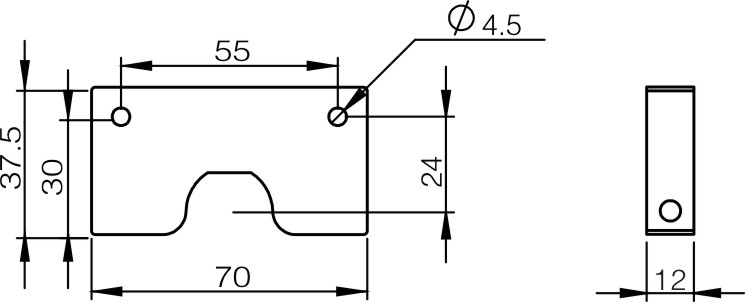

U-shaped floating magnet



Scope of application: RP, RF

Operating temperature: -40°C to +85°C

Installation screws: M4X18

Horizontal deviation: ±4mm

Vertical distance: -3.3 to 4.7mm

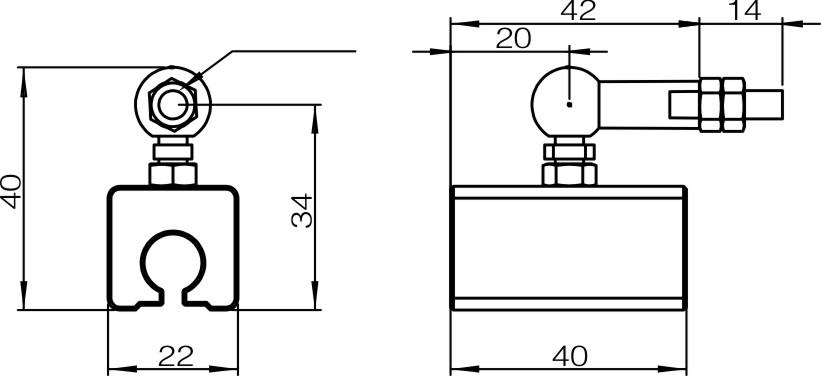

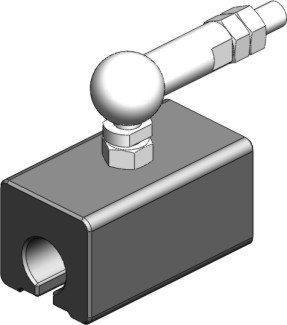

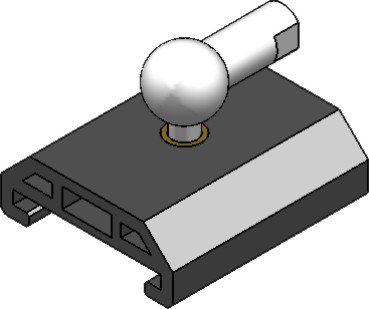

 S type slider magnet


 1470476607805.jpgScope of application: RP

Operating temperature: -40°C to +85°C

Installation thread: M5

 V type slider magnet



Scope of application: RS

Operating temperature: -40°C to +85°C

Installation thread: M5

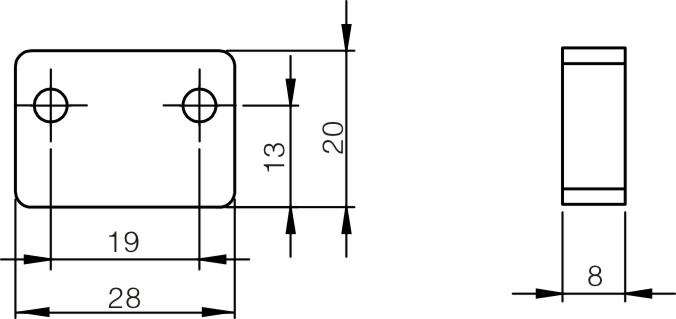

 M type floating magnet



 Scope of application: RS

Operating temperature: -40°C to +85°C

Mounting screw: M4

Horizontal deviation: ±3mm

Vertical distance: 2~4mm

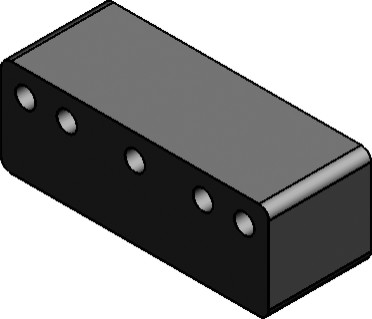

N type floating magnet



Scope of application: RS

Operating temperature: -40°C to +85°C

Mounting screw: M4

Horizontal deviation: ±15mm

Vertical distance: 5~12mm



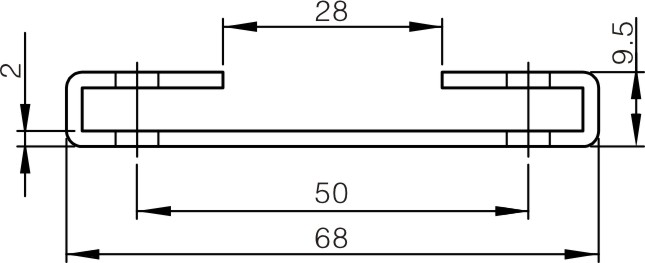

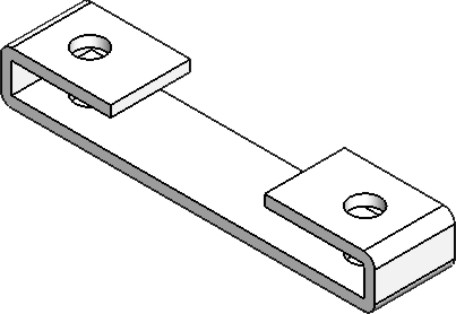

Fixed clip





Scope of application: RS

Operating temperature: -40°C to +85°C

Mounting screw: M4


Specifications

SPECIFICATIONS

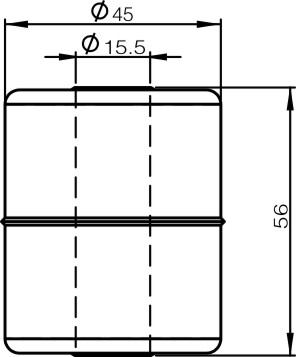

 D45-float magnet


14704764737636.jpgenclosure: 304L stainless steel

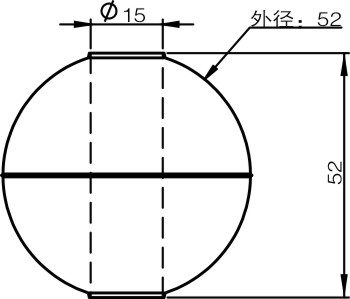

D52-Float magnet


14704764558857.jpgenclosure: 304L stainless steel
