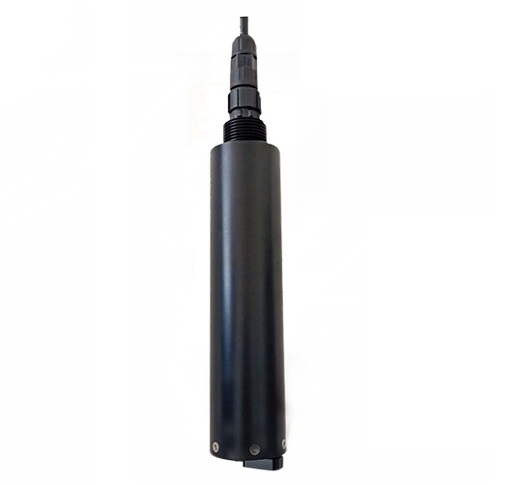

ZS-D160 Online Self-Cleaning Turbidity Sensor
(RS-485/ModbusRTU)
The ZS-D160 online self-cleaning turbidity sensor is designed and manufactured based on the principle of scattered light turbidity measurement.
When a beam of light is emitted into a water sample, the turbidity substances in the water sample scatter the light. By measuring the scattered light intensity perpendicular to the incident light and comparing it with the internal calibration value, the turbidity in the water sample is calculated, and the turbidity value is output after linearization.
Applications
All types of water treatment (rivers/lakes/drinking water sources/groundwater/marine water), aquaculture, environmental monitoring, CIP and related industries.
Features
● 0~20.00NTU, 0~100.0NTU,0~1000.0NTU
● 0-50°C; IP68 protection, within 20m water depth
● Scattered light principle, built-in temperature sensor
● Support RS-485, Modbus/RTU protocol
● Optical fiber structure, strong resistance to external light interference
● Infrared LED light source, high stability
● Convenient, fast, stable and easy to maintain
Model | ZS-D160 |
Measuring principle | Scattered light method |
Measuring range | 0~20.00NTU, 0~100.0NTU,0~1000.0NTU |
Resolution | 0.1NTU(0~100.0/1000.0NTU), 0.1℃ 0.01NTU(0~20.00NTU), 0.1℃ |
Accuracy | ±5% |
Calibration method | Two-point calibration |
Temperature compensation | Automatic temperature compensation (Pt1000) |
Output type | RS-485(Modbus/RTU) |
Operating conditions | 0~50℃, <0.2MPa |
Storage temperature | -5 to 65°C |
Mounting Type | Submersible installation, 3/4" NPT thread |
Cable length | 5 m; other lengths customizable |
Power Consumption | <0.5W (when the cleaning brush is not working) |
Power | 12VDC ±10% |
Protection Rating | IP68 |
