Home > Products > Process Analysis > Online Turbidity Analyzers > ZS-D120 Online Turbidity Digital Sensor
New

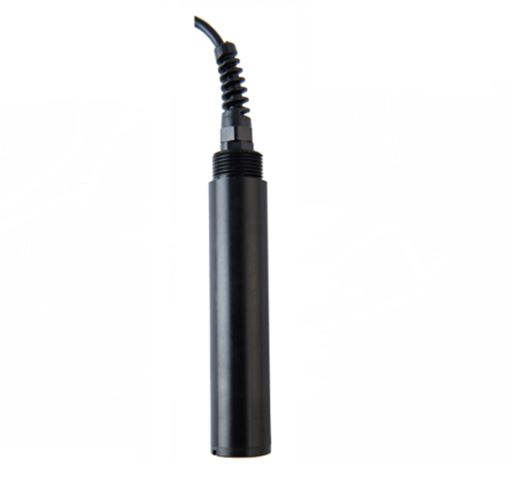

ZS-D120 Online Turbidity Digital Sensor
(RS-485/ModbusRTU)
Applications
All types of water treatment (rivers/lakes/drinking water sources/groundwater/marine water), aquaculture, environmental monitoring, CIP and related industries.
Features
●With automatic temperature compensation.
●Output standard Rs485 (Modbus/RTU protocol) digital signal.
●The Rs485 signal is conveniently connected to third-party devices such as PLC, DCS, industrial control computers, general controllers, paperless recording instruments or touch screens.
●Parameter setting is more convenient and faster.
●The calibration function provides a simple and fast way to calibrate.
●Real-time data transmission allows you to obtain timely and accurate data for monitoring water bodies.
Model | ZS-D160 |
Measuring principle | Scattered light method |
Measuring range | 0~20.00NTU, 0~100.0NTU,0~1000.0NTU |
Resolution | 0.1NTU(0~100.0/1000.0NTU), 0.1℃ 0.01NTU(0~20.00NTU), 0.1℃ |
Accuracy | ±5% |
Calibration method | Two-point calibration |
Temperature compensation | Automatic temperature compensation (Pt1000) |
Output type | RS-485(Modbus/RTU) |
Operating conditions | 0~50℃, <0.2MPa |
Storage temperature | -5 to 65°C |
Mounting Type | Submersible installation, 3/4" NPT thread |
Cable length | 5 m; other lengths customizable |
Power Consumption | <0.5W (when the cleaning brush is not working) |
Power | 12VDC ±10% |
Protection Rating | IP68 |
