Home > Products > Pressure Measurement > Pressure Switch > PSC-120 Series Monocrystalline Silicon Digital Pressure Switch
New

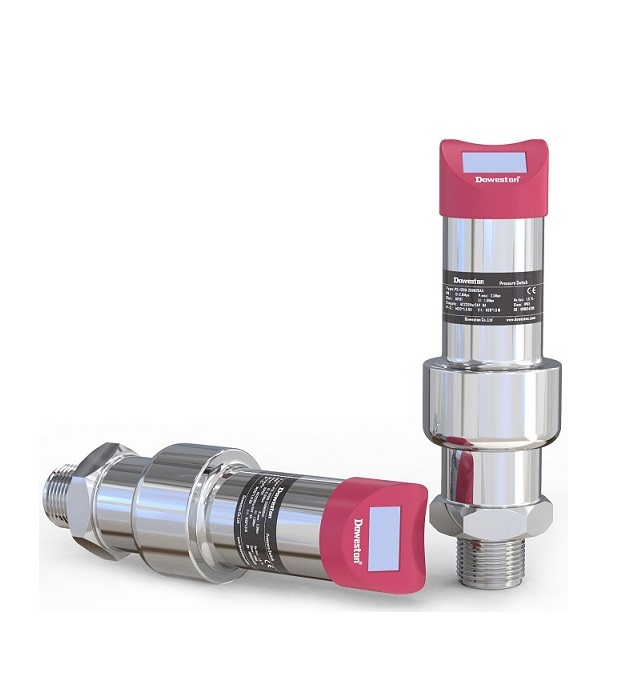

PSC-120 series single crystal silicon digital display pressure switch
ApplicableEquipment and project engineering under complex working conditions and harsh conditionsPressure monitoring
PSC-120 series single crystal silicon digital display pressure switchThe use of monocrystalline silicon technology ensures the high accuracy and stability of the sensor. When the pressure reaches the set value, the preset mechanical structure will be triggered and a switch signal will be sent., withWide range of applications, Compact structure,With digital display, convenient observation and high stability. Switching value, 4-20mA output optional. Stable operation even under extremely harsh conditions,Applicable to all types ofFluid and gas media, withThread specifications optionalA variety of connection methods to meet the needs of different working conditions.
Principle
■ PSC-120 series single crystal silicon digital display pressure switchThe use of monocrystalline silicon technology ensures the high accuracy and stability of the sensor. When the pressure reaches the set value, the preset mechanical structure will be triggered and a switch signal will be sent.Stable operation even under extremely harsh conditions.
■ The meter head can be freely rotated 300° for convenient observation
■ 4-digit high-brightness LED display
■ The action point does not drift and the measurement range is wide
■ Compliant with IO-Link communication standard
■ Good market feedback, high sales, and good stability
■ Monocrystalline silicon sensor, high precision, good stability, impact resistance
■ Flexible installation methods
■ It can be manufactured according to the pressure value selected by the user within the pressure range.
Application Areas:
■ PSC-120 series single crystal silicon digital display pressure switchIt is widely used in water plants, equipment plants, sewage treatment plants, construction, light industry, machinery and other industrial fields to monitor liquid and gas pressure.
| Compatible Media | Dry gases, gases, liquids, slightly corrosive liquids |
| Measuring Range | 0.2, 1, 5, 10, 15, 30, 40, 60MPa |
| Accuracy | ±0.1%FS, ±0.25%FS, ±0.5%FS |
| Repeatability | ±0.01% of measured value |
| Switch signal | 1 or 2 optional |
| PNP, NPN normally open or normally closed can be set | |
| Rated current ≤300mA | |
| Response time ≤30ms | |
| Analog output | 4-20mA analog |
| accuracy 0.1%FS | |
| Load ≤500Ω | |
| Input Voltage | 15-36V DC |
| Display | 4-digit LED highlight display |
| Setting method | Button settings |
| Operating Temperature | -20-85℃ |
| Ambient temperature and humidity | -20-80℃ 45-75%RH |
| Vibration resistance | 10g (IEC 60068-2-27, in resonance state) |
| Impact resistance | 50g (IEC 60068-2-6, mechanical shock) |
| Material | Process connection: stainless steel 316L |
| enclosure Material: stainless steel 304: | |
| Button: TPE-E | |
| Display window: PC (polycarbonate) | |
| Display body: PC+ABS-Blend | |
| Electrical Protection | Reverse polarity, short-circuit and overload protection |
| Protection Rating | Electrical section IP67 |
| Electrical Connection | M12*1.4 4/5 core aviation plug |
| Service Life | 100 million switching cycles |
| Mounting Type | External thread (G thread, M thread, NPT thread), flange and clamp optional |
| Weight | approx. 0.55kg |
