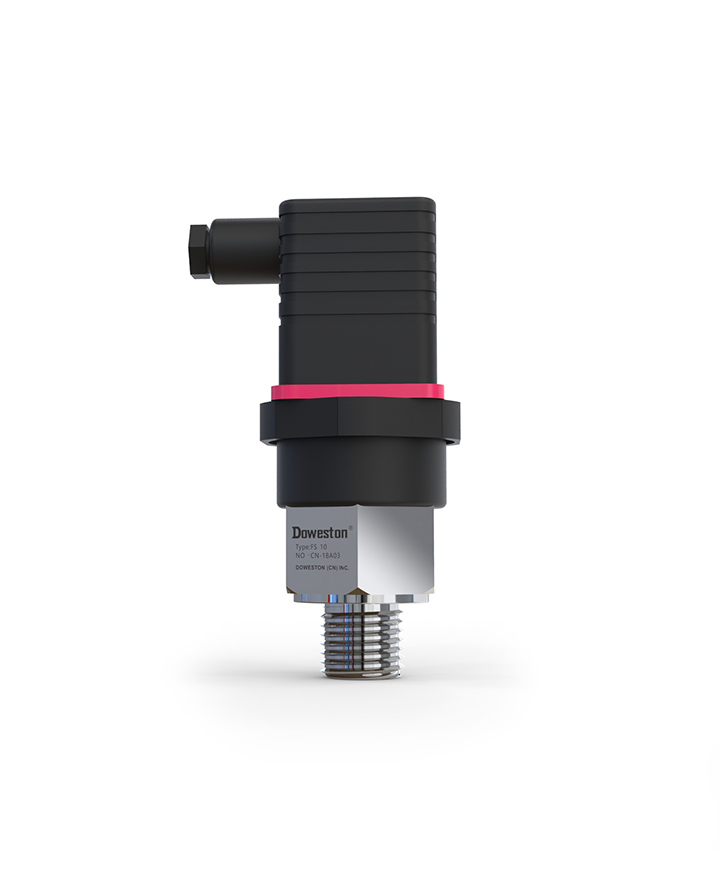

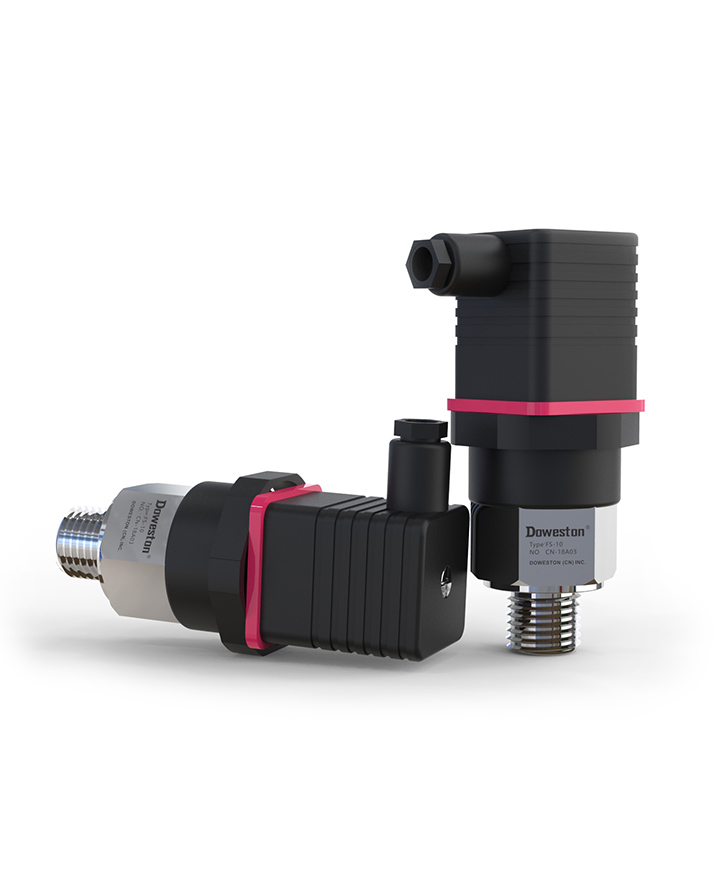

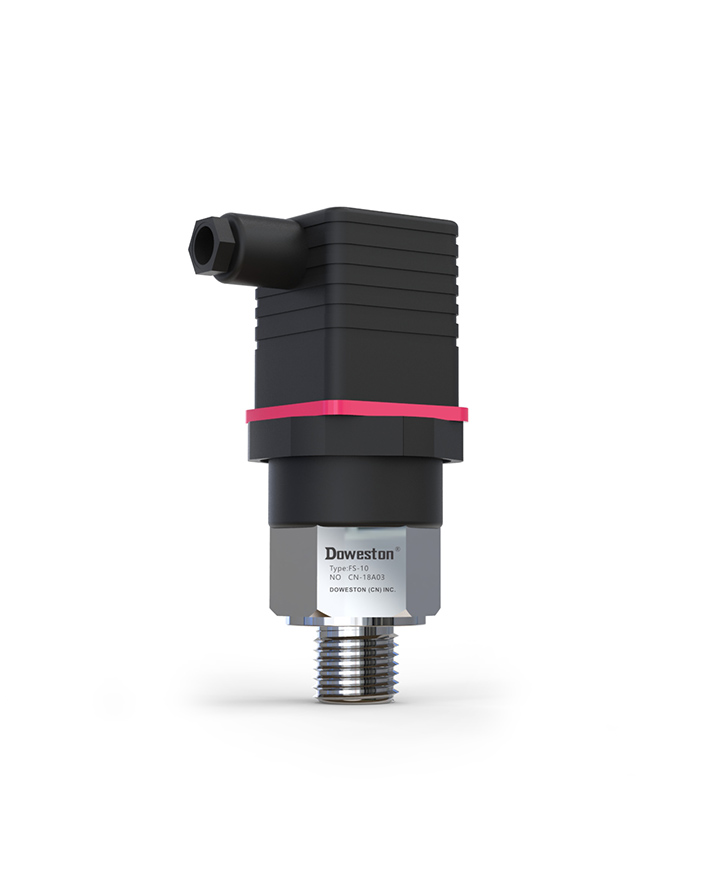

PSM-12 Series
Diaphragm Pressure Switch

 Principle
■ PSM-12 series membrane pressure switchThe built-in piston is connected to a precision spring. When the pressure changes, the expansion and contraction of the spring changes accordingly. When the pressure reaches the set value, the preset mechanical structure will be triggered and a switch signal will be sent.

■ The action point does not drift and the measurement range is wide

■ High repeatability, adjustable hysteresis, silver-plated contacts
■ Good market feedback, high sales, and good stability

■ Output SPDT silver electroplating

■ Compact structure and small size
■ Flexible installation methods
■ It can be manufactured according to the pressure value selected by the user within the pressure range.

■ Sealed stainless steel sensor is rugged and reliable

 Application Areas:

■ PSM-12 series membrane pressure switchIt is widely used in water plants, equipment plants, sewage treatment plants, construction, light industry, machinery and other industrial fields to monitor liquid and gas pressure.
