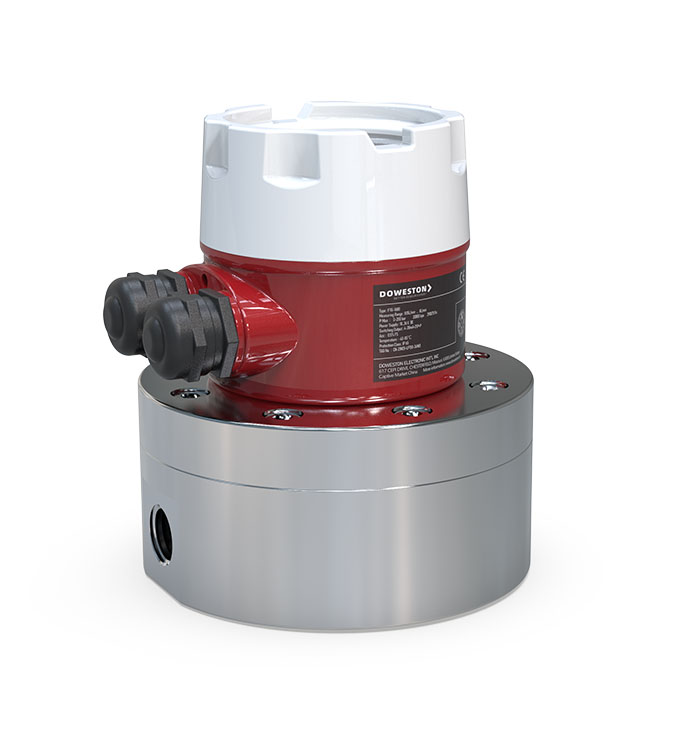

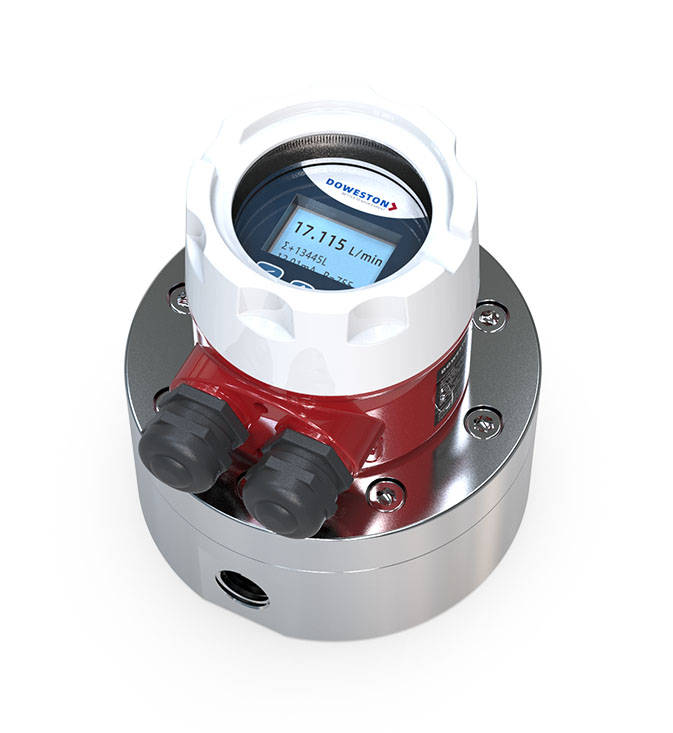

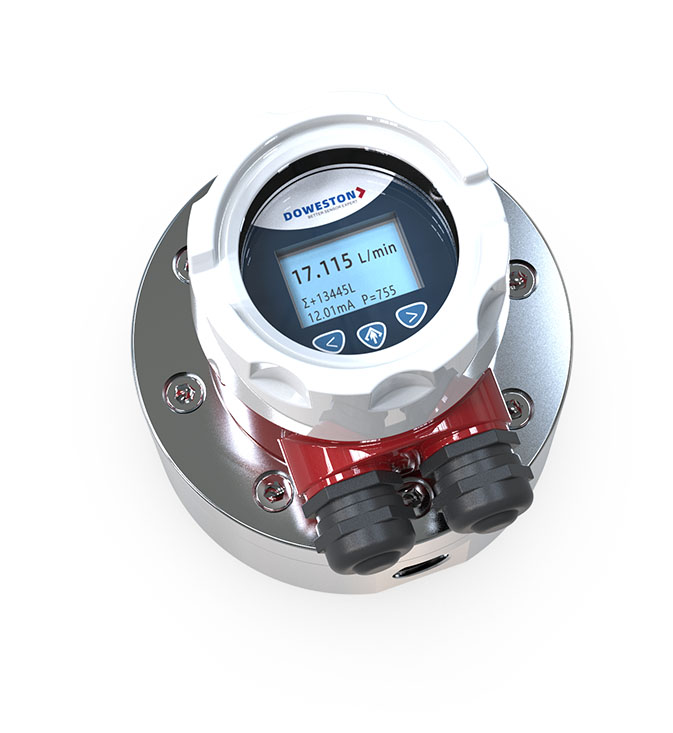

FTG-1800A Series
Standard Gear Flow Sensor

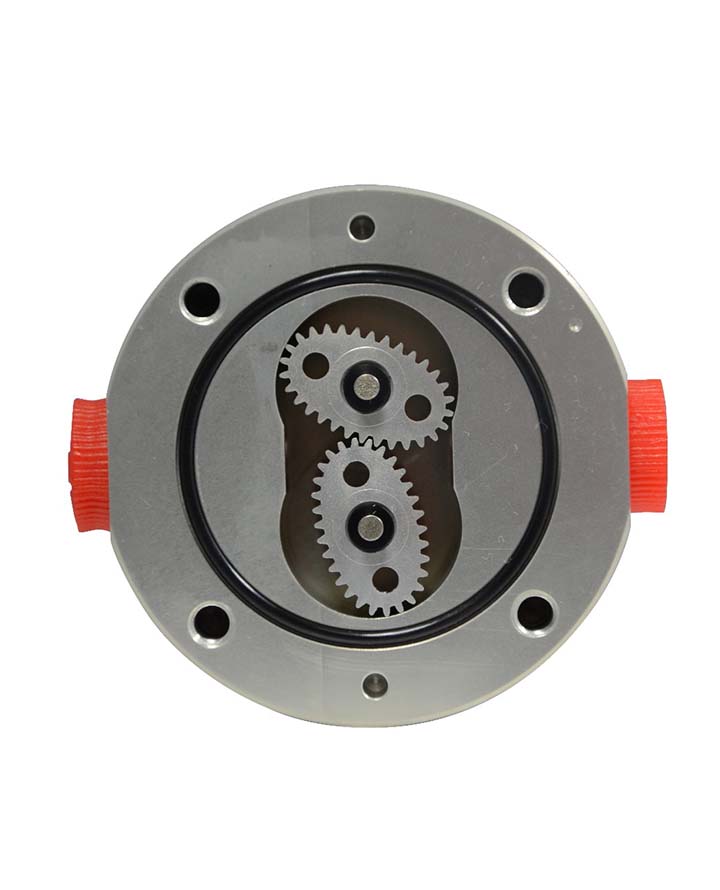

FTG-1800A standard gear flowSensorThere is a pair of intermeshing gears in the cavity as the rotor. The two gears and the cavity can respectively form a fixed volume, which is called the standard volume. Flow rate is measured by calculating the number of flows through a standard volume within a certain period of time. High machining accuracy, precise installation, high resolution, gear flowSensorThe measured medium is required to be lubricating, and non-lubricating media such as water cannot be measured. At the same time, the gear flow meter is not suitable for fluids containing solid particles. If the measured liquid medium contains gas, it will also cause measurement errors.

■ Small size, light weight; low vibration and noise during operation

■ 0.05-500m³/h, wide span optional

■ The greater the viscosity, the higher the accuracy.

■ High precision and resolution

■ Pulse, 4-20mA and other output modes

■ A variety of rotor materials to adapt to different media and working conditions

■ Strong resistance to magnetic interference and vibration; reliable performance and long service life

■ IP65, IP68 optional

■ Low lower flow velocity limit, wide measuring range

■ Can withstand pressure 42MPa

 Application Areas:

■ FTG-1800A standard gear flowSensorWidely used in petroleum, petrochemical, natural gas, chemical, paper, automobile, food and other industries, gear flowSensorAlso used to measure minute flow rates in small pipe diametersSensor.
