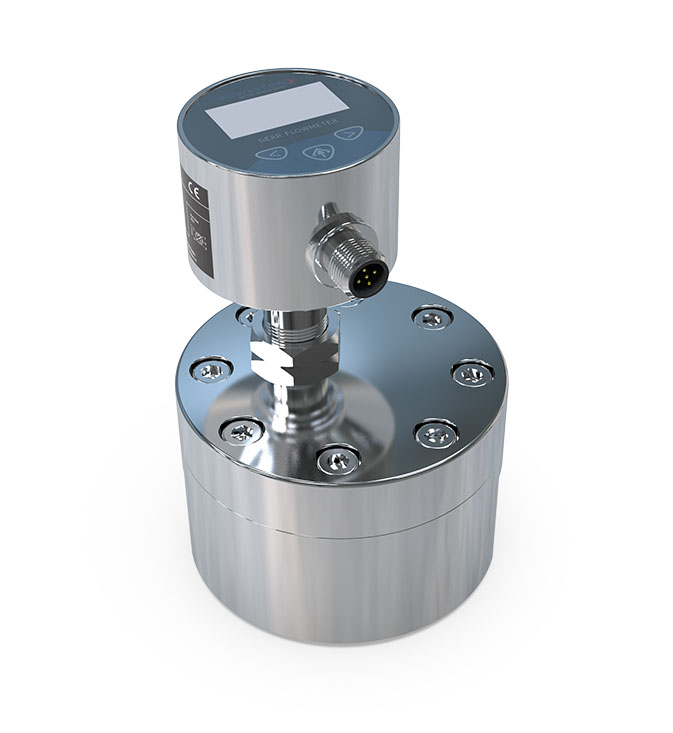

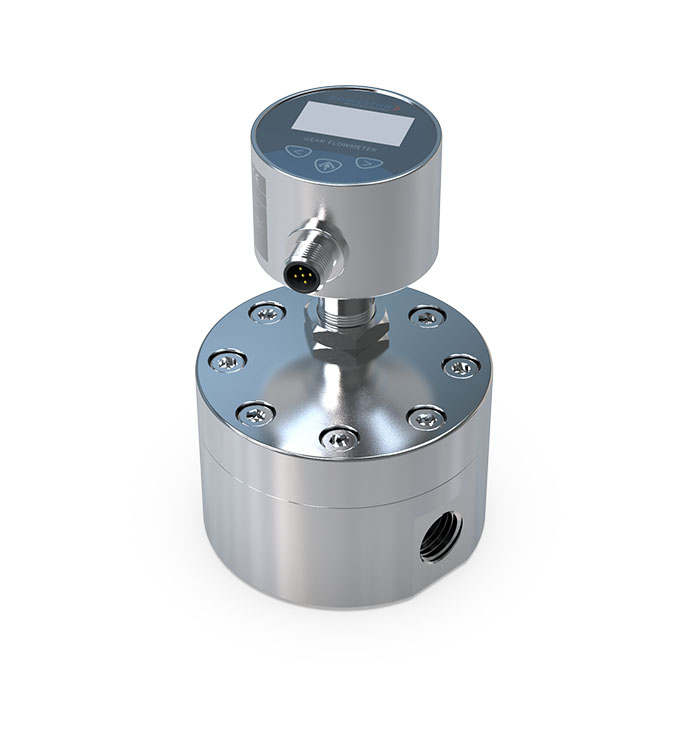

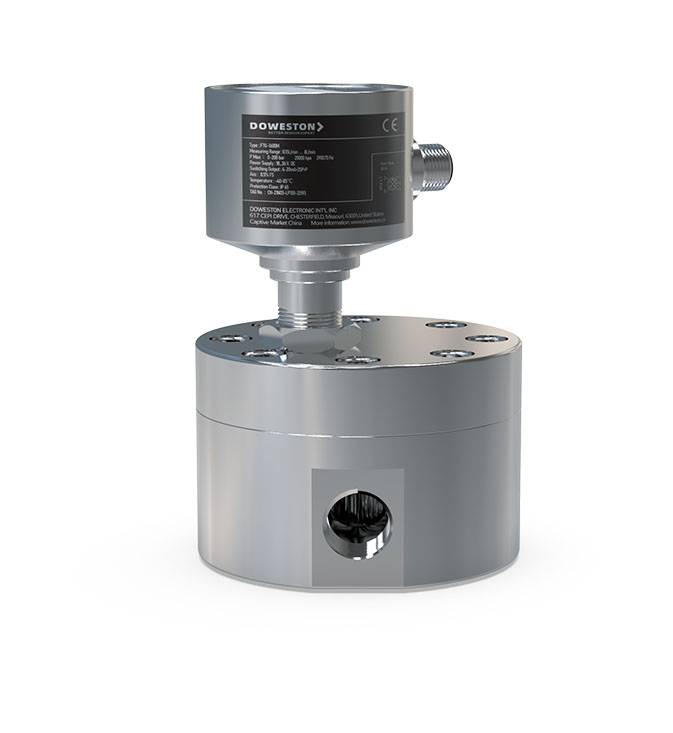

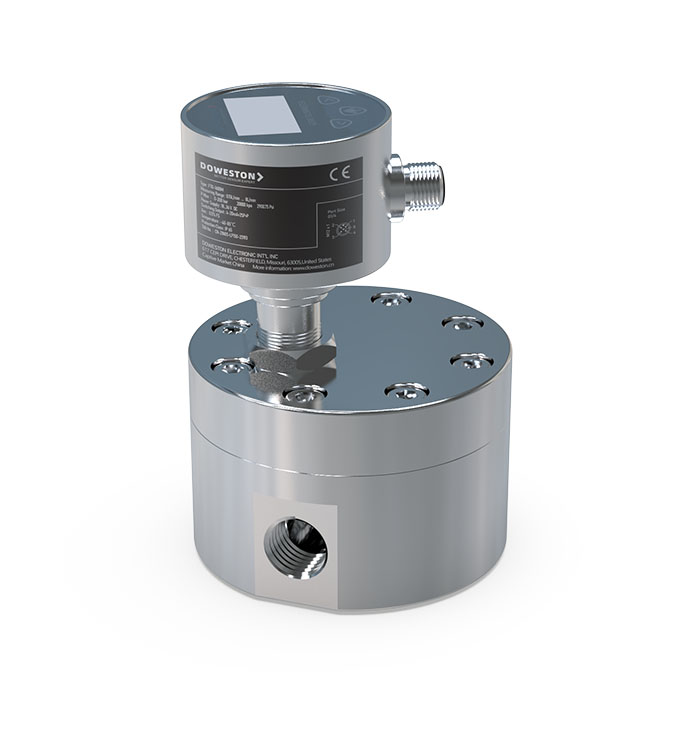

FTG-1200 Series Digital
Micro-Flow Liquid Gear Flow Sensor

The greater the viscosity of the medium, the smaller the leakage amount from the gap between the gear and the metering space. Therefore, the greater the viscosity of the measured medium, the smaller the leakage error, and the more beneficial it is to the measurement.

It has small size, light weight, low vibration and noise during operation, and can measure high-viscosity fluids. The measurement accuracy is 0.5 level and 0.2 level. Wide measuring range up to 100:1

There are general type, high pressure type, food type, etc., suitable for micro flow measurement of various clean liquids.

No straight section of pipe is required.

Suitable for pulsating fluid measurements.

Can be used for short-term quantitative addition of micro amounts

Applications

Measurable industries include water, oil, food, lubricants, chemicals, cosmetics, fertilizers, inks, pharmaceuticals, coatings, petroleum, automobiles, glues, polyurethanes, electrolytes and additives.

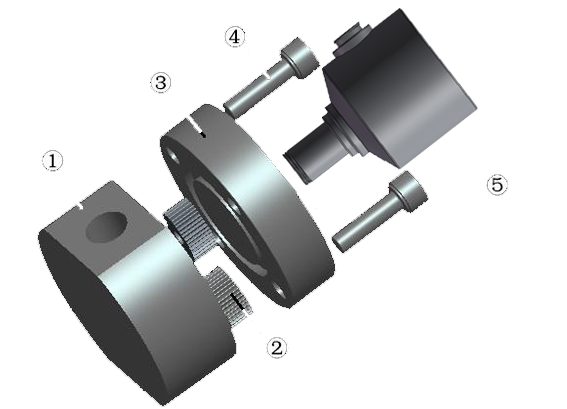

Structure

① Gear cavity plate Gear cavity plate

② Gear

③ Cover plate

④ Fixing thread

⑤ Digital display head

FlowSensorThere is a pair of intermeshing gears in the cavity as the rotor. The two gears and the cavity respectively form a fixed volume, which is called the standard volume. Gear flow is measured by calculating the number of units flowing through a standard volume within a certain period of time. Spur gear flowSensorIt is a new type of volumetric flowSensor, also called Fuda flowSensor, used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in pipelines, suitable for flow measurement of medium with high viscosity such as heavy oil, polyvinyl alcohol, resin, etc.
